Cable ladder with Z rung, light-duty A4

Item no. 7098090 | EAN 4012195708001

3000 mm
3 mm
no
Product description

Product description

Light-duty shipbuilding cable ladder with perforated side rail of side height 35 mm with welded, perforated Z rungs. Load tested according to IEC in conjunction with connector, type SLV.


  • Det Norske Veritas
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 35x400
Dimension 35x406x3000
Fastening of rung Welded
Maintain electrical functions no
Material Stainless steel
Rail thickness 3 mm
Rung distance 300 mm
Rustproof steel, pickled yes
Side perforation yes
Side rail version Flat profile
Surface Bright, treated
Version of the rungs Profile perforated
Wide-span version no

Dimensions

Dimension B 406 mm
Height 35 mm
Length 3000 ft
Length 3000 mm
Width 400 mm

Loads

Support spacing 1.0 m 2,2 kN/m
Support spacing 1.5 m 1 kN/m
Support spacing 2.0 m 0,55 kN/m
Support spacing 2.5 m 0,25 kN/m
Support spacing 3.0 m 0,25 kN/m

Technical data

Load diagram, cable ladder, type SLZ L A4

Load diagram, cable ladder, type SLZ L A4
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
  • Load scheme during testing Load scheme during testing
All types

All types

Types Length Width Rail thickness Maintain electrical functions Item no. Quantity SSU
SLZ L 100 A4 3000 mm 100 mm 3 mm no 7098082
3 m
SLZ L 200 A4 3000 mm 200 mm 3 mm no 7098086
3 m
SLZ L 300 A4 3000 mm 300 mm 3 mm no 7098088
3 m
SLZ L 400 A4 3000 mm 400 mm 3 mm no 7098090
3 m
SLZ L 500 A4 3000 mm 500 mm 3 mm no 7098092
3 m
SLZ L 600 A4 3000 mm 600 mm 3 mm no 7098094
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU

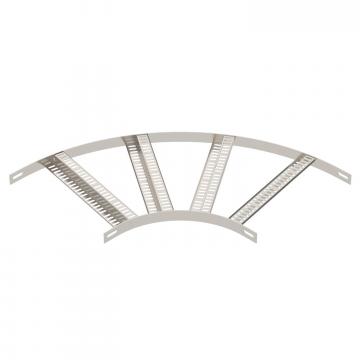

90° bend with Z rung, A4 90° bend with Z rung, A4 SLZB L 90 400 A4 7099268
1 piece
