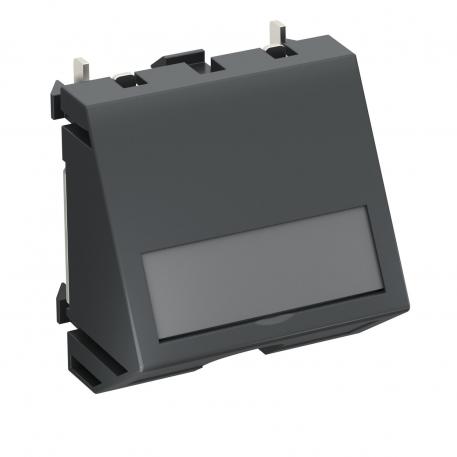

Cable outlet for 3‒11 mm cross-section, black-grey
Item no. 6117421 | EAN 4012196133840
- Product description
-
Product description
Two-part cable outlet with labelling panel, consisting of a cable support with strain relief and a cover. The strain relief is suited for cable cross-sections of 3 to 11 mm. The locking fastening is suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
- Technical data
-
Technical data

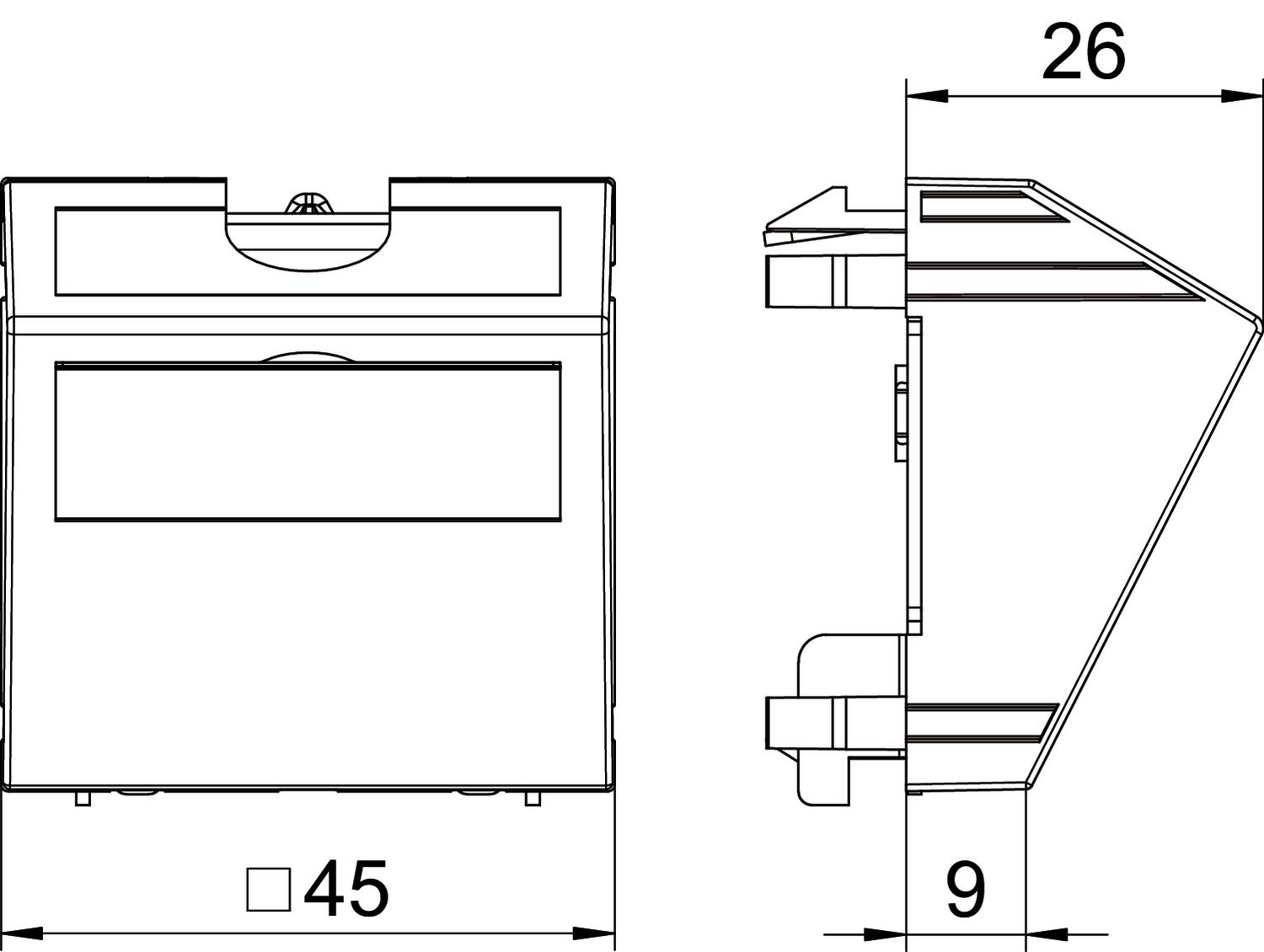

Colour Black-grey; RAL 7021 Depth 26 mm Dimension 45x45mm Einbaubreite 45 mm Fastening type Clamp fastening Flush-mounted version yes Halogen-free yes Height 45 mm Hinged cover no Installation height 45 mm Material Polycarbonate Mounting direction Horizontal and vertical Number of units 1 Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field yes Transparent no Width 45 mm - All types
- Downloads
-
Data sheet KAL-K11 SWGR1 / 6117421 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfMounting instructions Mounting instructions, KAL-K11.. , 2.00MB , pdfNo invitation to tender text is available for this product.
