Cable outlet for 3‒11 mm cross-section, pure white

Item no. 6117420 | EAN 4012196133833

Product description

Product description

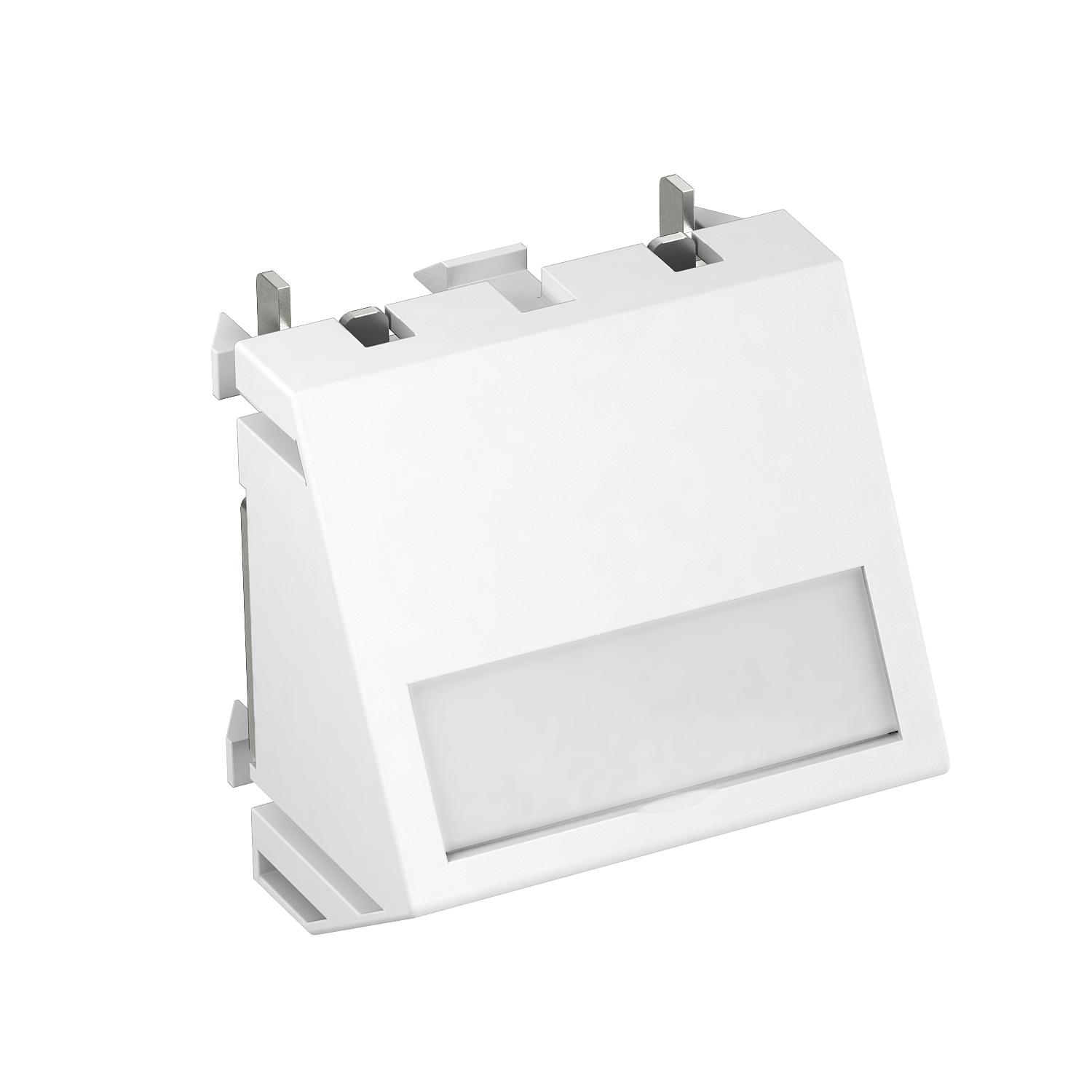

Two-part cable outlet with labelling panel, consisting of a cable support with strain relief and a cover. The strain relief is suited for cable cross-sections of 3 to 11 mm. The locking fastening is suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

Technical data

Colour Pure white; RAL 9010

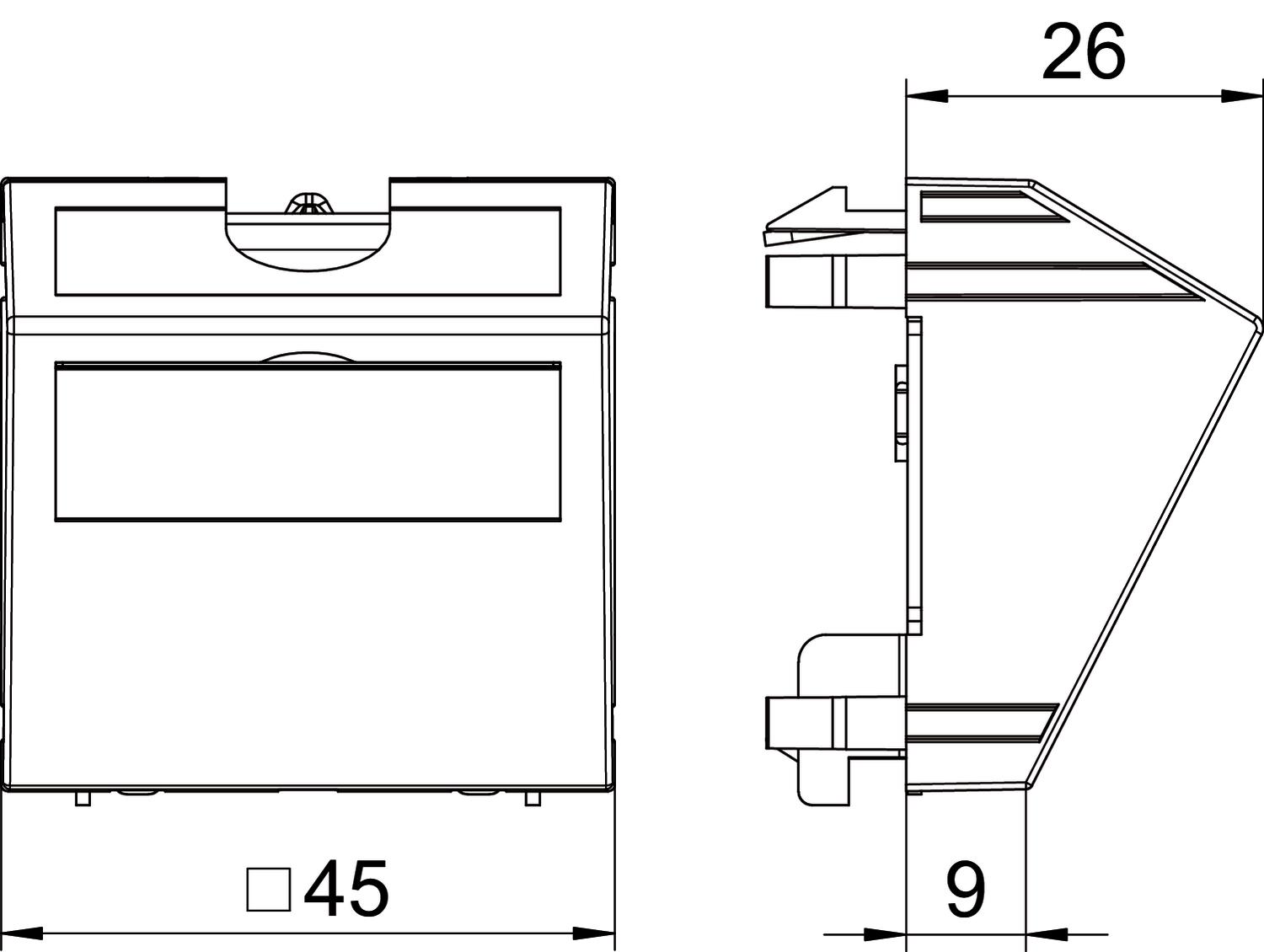

Depth 26 mm
Dimension 45x45mm
Einbaubreite 45 mm
Fastening type Clamp fastening
Flush-mounted version yes
Halogen-free yes
Height 45 mm
Hinged cover no
Installation height 45 mm
Material Polycarbonate
Mounting direction Horizontal and vertical
Number of units 1
Suitable for built-in installations no
Suitable for device installation ducts yes
Suitable for flush-mounted installations no
Suitable for underfloor duct socket no
Surface version Matt
Text field/inscription field yes
Transparent no
Width 45 mm
All types

All types

Types Item no. Quantity SSU
KAL-K11 RW1 6117420
5 piece
KAL-K11 SWGR1 6117421
5 piece
KAL-K11 AL1 6117422
5 piece
