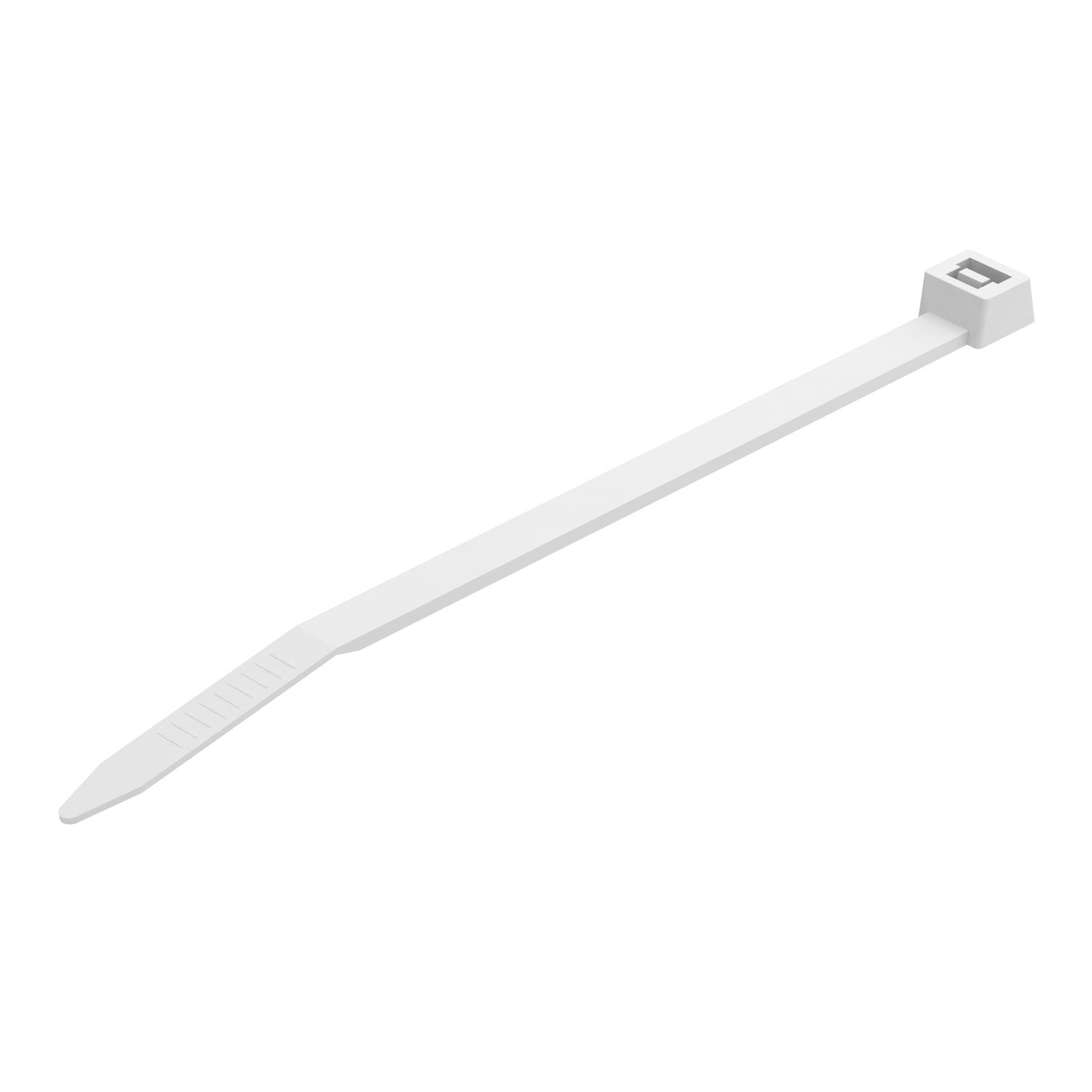

Cable tie, white

Item no. / Types

Length

Max. Bundle diameter

Colour	White

Product description

Product description

Cable ties are used for quick, uncomplicated fixing or bundling of cables and pipes to cable support systems or other mounting structures.

Technical data

Mounting temperature_min.	-30 °C
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-30 °C
Reflective	no
Releasable lock	no
Strip closure	Plastic tongue/tab
Tensile strength	80 N
Transparent	no
UL approval	yes
UV-resistant	no
Version for	Externally toothed
VG approval	no
Width	2,5 mm

All types

Types	Length	Max. Bundle diameter	Colour	Item no.	Quantity	SSU
565 2.5x75 WS	75 mm	15 mm	White	2331800	piece	1000 piece
565 2.5x100 WS	100 mm	22 mm	White	2331810	piece	1000 piece
565 2.5x150 WS	150 mm	39 mm	White	2331816	piece	1000 piece
565 2.5x200 WS	200 mm	55 mm	White	2331822	piece	1000 piece
565 3.6x150 WS	150 mm	36 mm	White	2331830	piece	1000 piece
565 3.6x200 WS	200 mm	52 mm	White	2331836	piece	1000 piece
565 3.6x290 WS	290 mm	82 mm	White	2331842	piece	1000 piece
565 3.6x365 WS	365 mm	105 mm	White	2331848	piece	1000 piece
565 4.8x120 WS	120 mm	27 mm	White	2331860	piece	1000 piece
565 4.8x160 WS	160 mm	39 mm	White	2331866	piece	1000 piece
565 4.8x200 WS	200 mm	52 mm	White	2331872	piece	1000 piece
565 4.8x300 WS	300 mm	83 mm	White	2331878	piece	1000 piece
565 4.8x365 WS	365 mm	105 mm	White	2331884	piece	1000 piece
565 4.8x430 WS	430 mm	125 mm	White	2331890	piece	800 piece
565 7.6x200 WS	200 mm	52 mm	White	2331910	piece	1000 piece
565 7.6x300 WS	300 mm	80 mm	White	2331916	piece	1000 piece
565 7.6x380 WS	380 mm	105 mm	White	2331922	piece	1000 piece
565 7.6x450 WS	450 mm	128 mm	White	2331934	piece	1000 piece
565 9x760 WS	760 mm	227 mm	White	2331944	piece	1000 piece
