Cable tray BKRS 110 FS 3000 | 300 | 2 | no | Steel | Strip galvanized

Cable tray BKRS 110 FS

Item no. 6061985 | EAN 4012196147045

Item no. / Types

Length	3000 mm

Width

Plate thickness	2 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

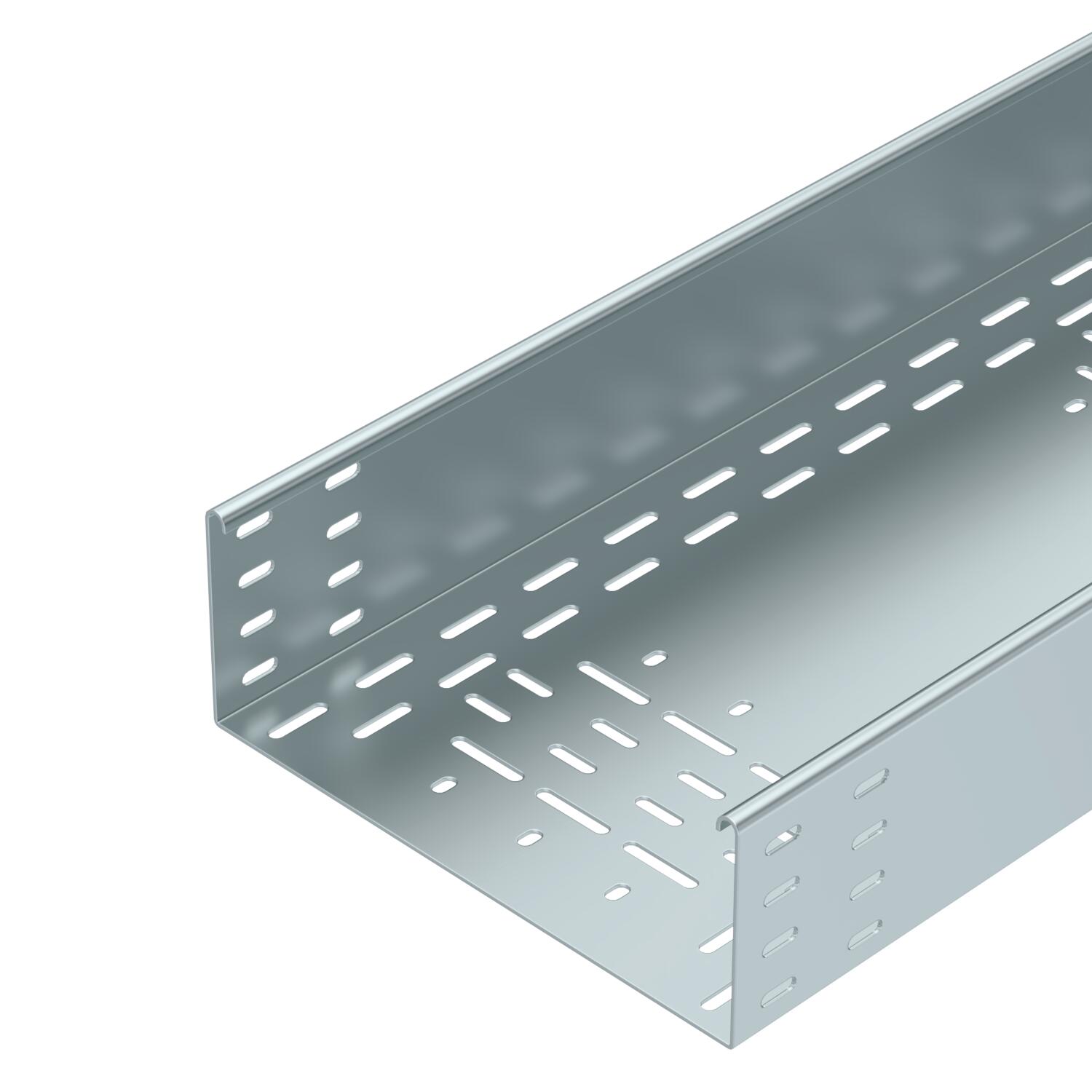

Heavy-duty, walkable cable tray system BKRS with base perforation, in 110 mm side height.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Connector version	Without connectors

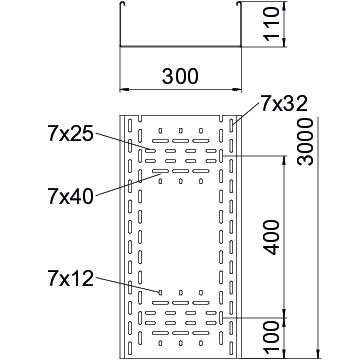

Dimension	110x300x3000
Dimension B	300 mm
Dimension H	110 mm
Dimension L	3000 mm
Height	4 in
Height	110 mm
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,08 in

Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.5 m	3,44 kN/m
Support spacing 2.0 m	3,33 kN/m
Support spacing 2.5 m	2,61 kN/m
Support spacing 3.0 m	2,08 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	296 cm²
Usable cross-section	29600 mm²
Wide-span version	no
Width	12 in
Width	300 mm
With cover	no

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
BKRS 1110 FS	3000 mm	100 mm	2 mm	no	Steel	Strip galvanized	6061981	m	3 m
BKRS 1120 FS	3000 mm	200 mm	2 mm	no	Steel	Strip galvanized	6061983	m	3 m
BKRS 1130 FS	3000 mm	300 mm	2 mm	no	Steel	Strip galvanized	6061985	m	3 m
BKRS 1140 FS	3000 mm	400 mm	2 mm	no	Steel	Strip galvanized	6061987	m	3 m
BKRS 1150 FS	3000 mm	500 mm	2 mm	no	Steel	Strip galvanized	6061989	m	3 m
BKRS 1160 FS	3000 mm	600 mm	2 mm	no	Steel	Strip galvanized	6061991	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
BKRS FT support bracket	STA BKRS 300 FT	6044545	piece	1 piece
Support profile 100 FS	STP Z 1030 FS	6044585	piece	10 piece
BKRS Z support FT	ZST 110 BKRS FT	6044603	piece	25 piece
Chequer plate cover DBKR FS	DBKR 300 FS	6049123	m	3 m
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece
Reducer/stop-end 110 FS	RWEB 130 FS	7111304	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cover clamp G	DK DBKR G	6049280	piece	30 piece
Dust protection element and joint plate FS	SSE SSLB 300 FS	6049294	piece	10 piece
Barrier strip, Z-shaped 110 FS	TSG110Z BKRS FS	6062391	m	3 m
