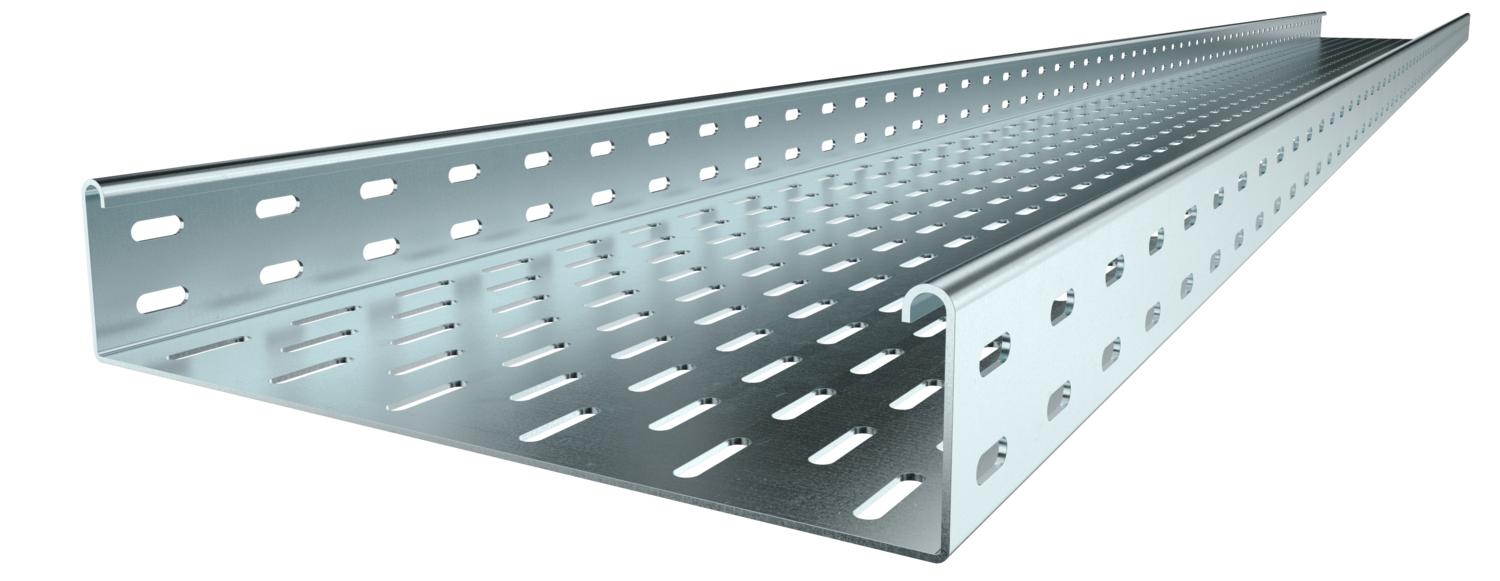

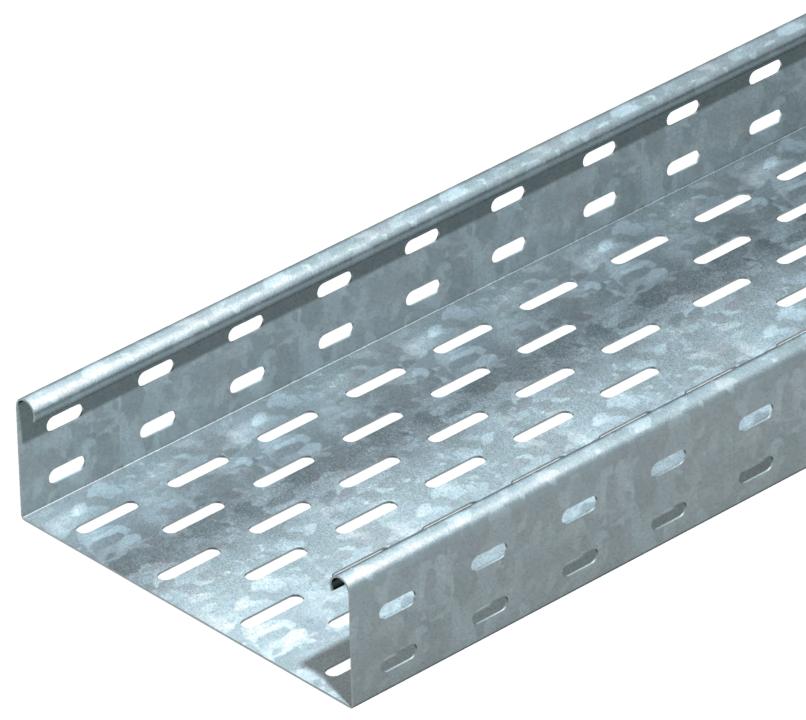

Cable tray EKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	2 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

EKS 60 = extra-heavy cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	8,76 kg CO₂e / 1 Meter
Dimension	60 x 100
Dimension	60x100x3000
Dimension B	100 mm
Height	2 in
Height	60 mm
Length	118 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	2 mm

Plate thickness	0,1 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	3,3 kN/m
Support spacing 2.0 m	2,2 kN/m
Support spacing 2.5 m	1,6 kN/m
Support spacing 3.0 m	0,95 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	5800 mm²
Usable cross-section	58 cm²
Wide-span version	no
Width	4 in
Width	100 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
EKS 610 FS	3000 mm	100 mm	2 mm	no	Steel	Strip galvanized	6056148	m	3 m
EKS 620 FS	3000 mm	200 mm	2 mm	no	Steel	Strip galvanized	6056229	m	3 m
EKS 630 FS	3000 mm	300 mm	2 mm	no	Steel	Strip galvanized	6056326	m	3 m
EKS 640 FS	3000 mm	400 mm	2 mm	no	Steel	Strip galvanized	6056423	m	3 m
EKS 650 FS	3000 mm	500 mm	2 mm	no	Steel	Strip galvanized	6056520	m	3 m
EKS 660 FS	3000 mm	600 mm	2 mm	no	Steel	Strip galvanized	6056628	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece
Joint plate FS	SSLB 100 FS	7070205	piece	20 piece
45° bend 60 FS	RB 45 610 FS	6036100	piece	1 piece
90° bend 60 FS	RB 90 610 FS	6036560	piece	1 piece
Bend, angle-adjustable, 60 FS	RB W 610 FS	6037100	piece	1 piece
Add-on tee 60 FS	RAA 610 FS	6042111	piece	1 piece
T piece 60 FS	RT 610 FS	6038100	piece	1 piece
Cross-over 60 FS	RK 610 FS	7027311	piece	1 piece
Cover with turn buckle FS	DRL 100 FS	6052096	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
45° bend 60 FS	RB 45 610 FS	6043763	piece	1 piece
90° bend 60 FS	RB 90 610 FS	6043216	piece	1 piece
