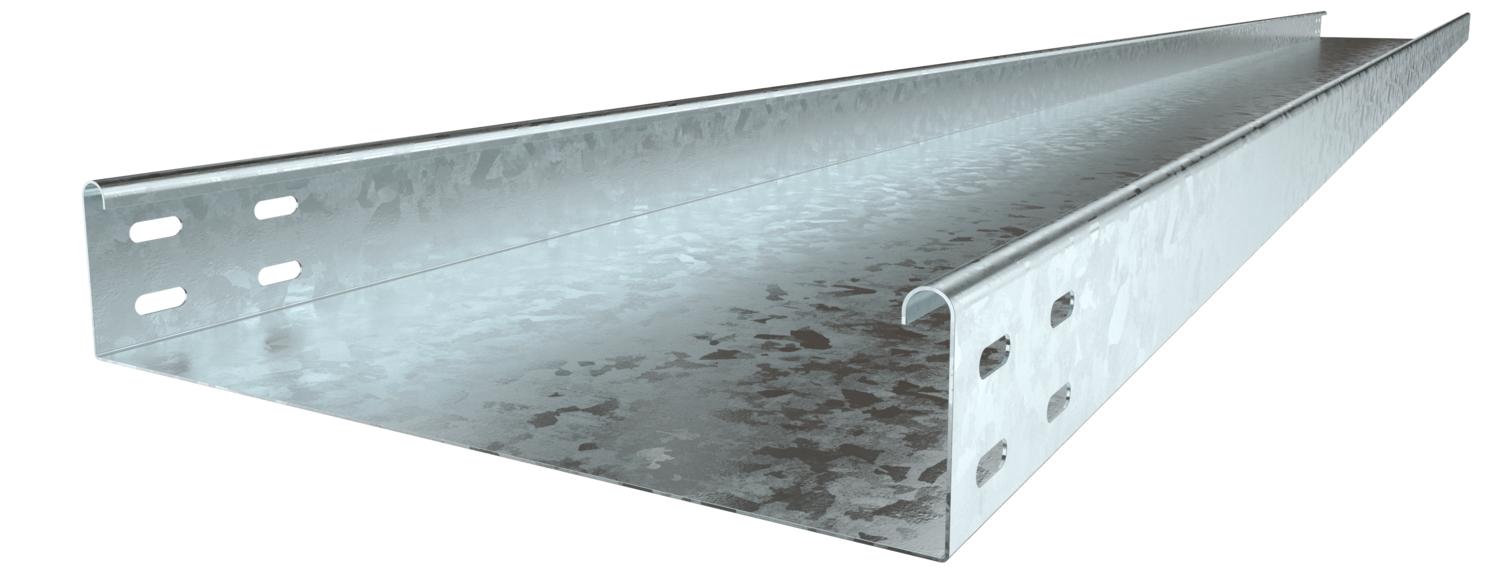

Cable tray EKSU 60 FT SOMY
Item no. 7189980 | EAN 4012196029259
- Product description
-
Product descriptionEKS 60 = extra-heavy cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Colour zinc Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 12,09 kg CO₂e / 1 Meter Dimension 60x200x3000 Dimension B 200 mm Height 60 mm Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 2 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.5 m 3,3 kN/m Support spacing 2.0 m 2,2 kN/m Support spacing 2.5 m 1,6 kN/m Support spacing 3.0 m 0,95 kN/m Surface Hot-dip galvanised 85 µm Type of connector, cable support system Screwed Usable cross-section 11800 mm² Usable cross-section 118 cm² Wide-span version no Width 200 mm With cover no Technical data

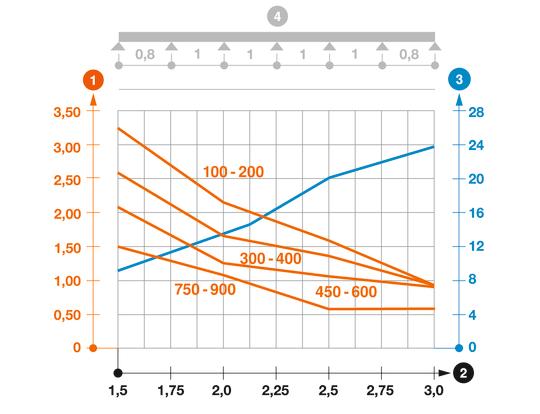

Load diagram, cable tray, type EKSU 60
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Permitted cable tray/ladder load in kN/m without man load
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
Load scheme during testing
-
- All types
- Downloads
-
Data sheet EKSU 620 FT SO / 7189980 , 0.32MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity EKSU 620 FT SO / 7189980 , 0.10MB , pdfUK Declaration of Conformity EKSU 620 FT SO / 7189980 , 0.09MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
