Product description

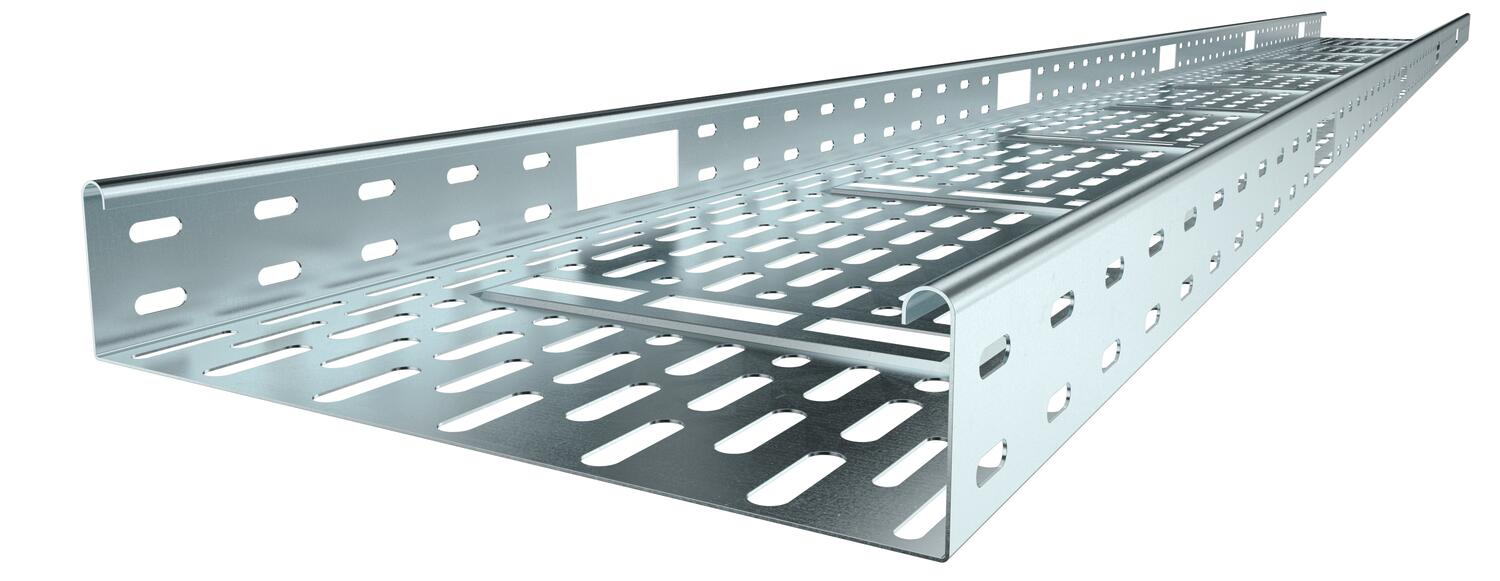

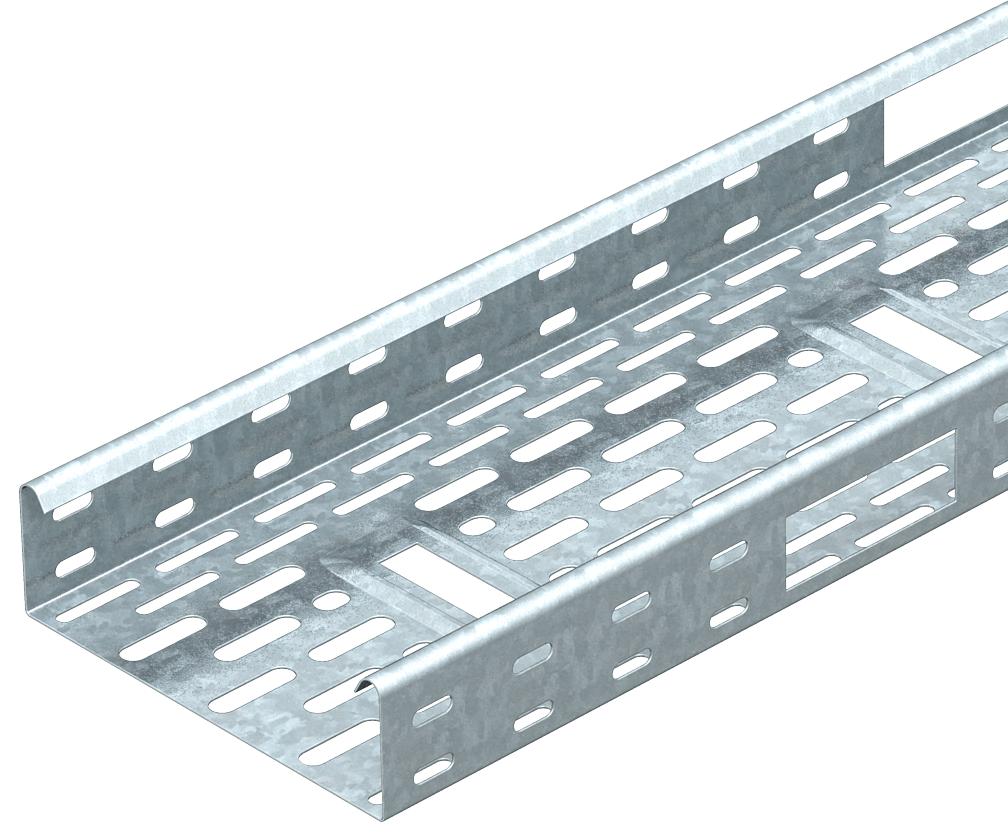

IKS 60 = installation cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data

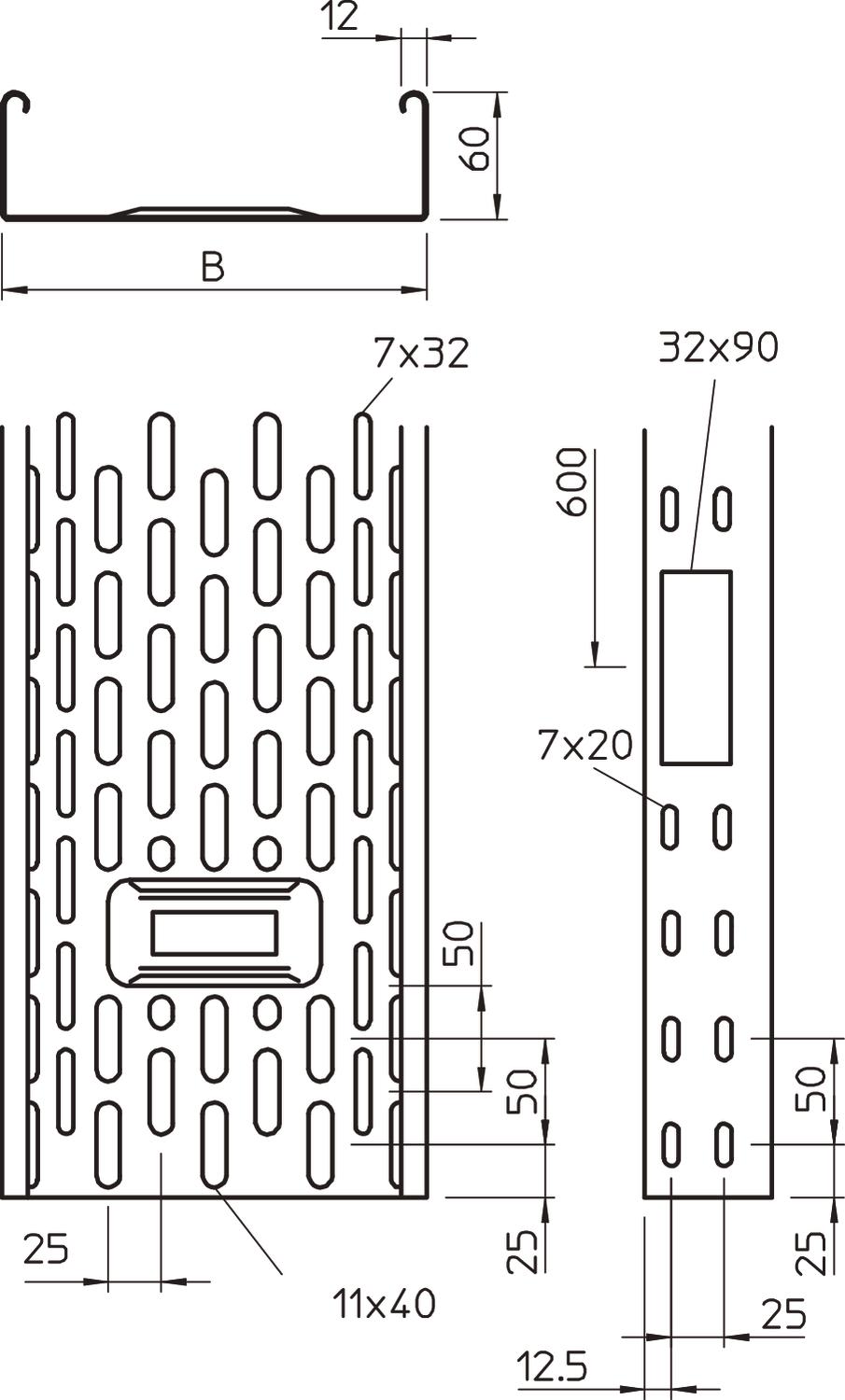

Connector version Without connectors Dimension 60x100x3000 Dimension 60 x 100 Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Side perforation yes Sprinkler system use yes Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 58 cm² Usable cross-section 5800 mm² Wide-span version no With cover no Dimensions
Dimension B 100 mm Height 60 mm Height 2 in Length 3000 mm Length 10 ft Width 100 mm Width 4 in Loads
Support spacing 1.0 m 0,9 kN/m Support spacing 1.5 m 0,9 kN/m Support spacing 2.0 m 0,7 kN/m Support spacing 2.5 m 0,45 kN/m Technical data

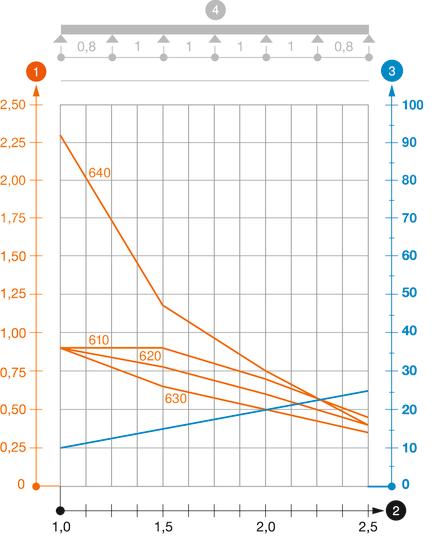

Load diagram, cable tray, type IKS 60
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
