Colour	aluminium
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	4,715 kg CO₂e / 1 Meter
Dimension	15 x 50
Dimension	15x50x2000
Dimension B	50 mm
Height	15 mm
Length	2000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Aluminium

Mounting perforation in base	yes
NATO hole pattern	yes
Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.0 m	0,3 kN/m
Support spacing 1.5 m	0,05 kN/m
Type of connector, cable support system	Screwed
Wide-span version	no
Width	50 mm
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Item no.	Quantity	SSU
MKR 15 050 ALU	2000 mm	50 mm	1.5 mm	no	Aluminium	6045707	m	2 m
MKR 15 075 ALU	2000 mm	75 mm	1.5 mm	no	Aluminium	6045715	m	2 m
MKR 15 100 ALU	2000 mm	100 mm	1.5 mm	no	Aluminium	6045723	m	2 m
MKR 15 125 ALU	2000 mm	125 mm	1.5 mm	no	Aluminium	6045731	m	2 m
MKR 15 150 ALU	2000 mm	150 mm	1.5 mm	no	Aluminium	6045758	m	2 m
MKR 15 200 ALU	2000 mm	200 mm	2 mm	no	Aluminium	6045766	m	2 m
MKR 15 250 ALU	2000 mm	250 mm	2 mm	no	Aluminium	6045774	m	2 m
MKR 15 300 ALU	2000 mm	300 mm	2 mm	no	Aluminium	6045782	m	2 m

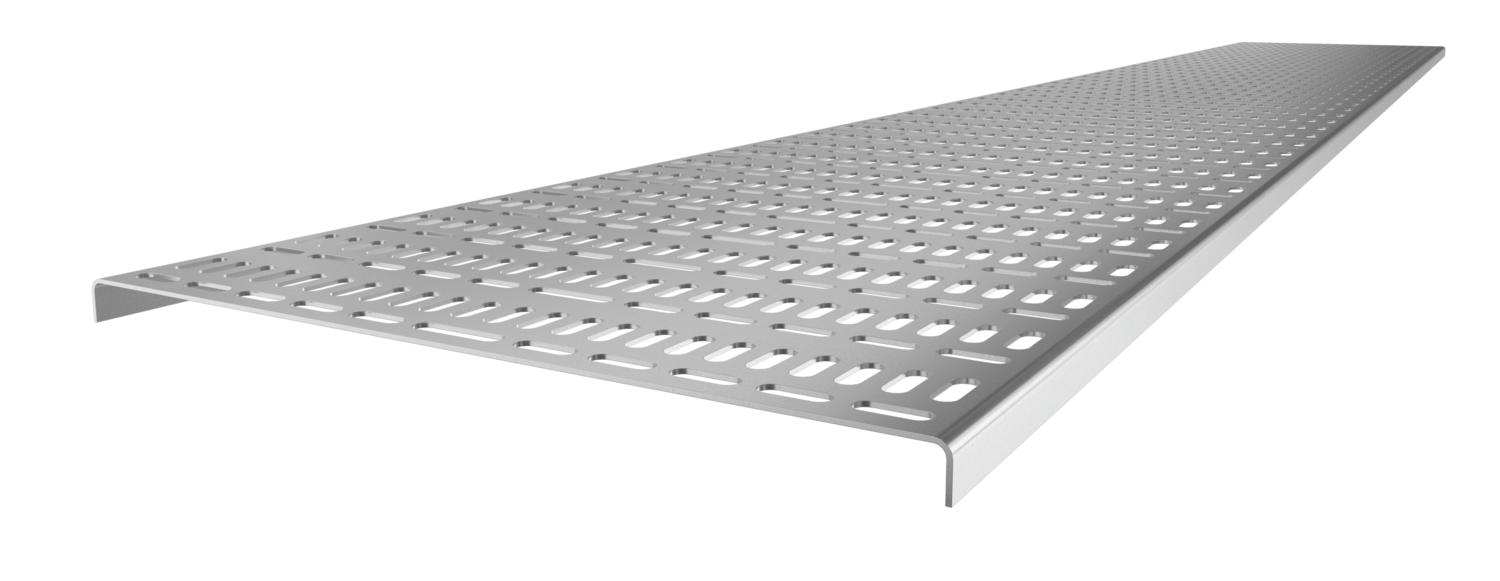

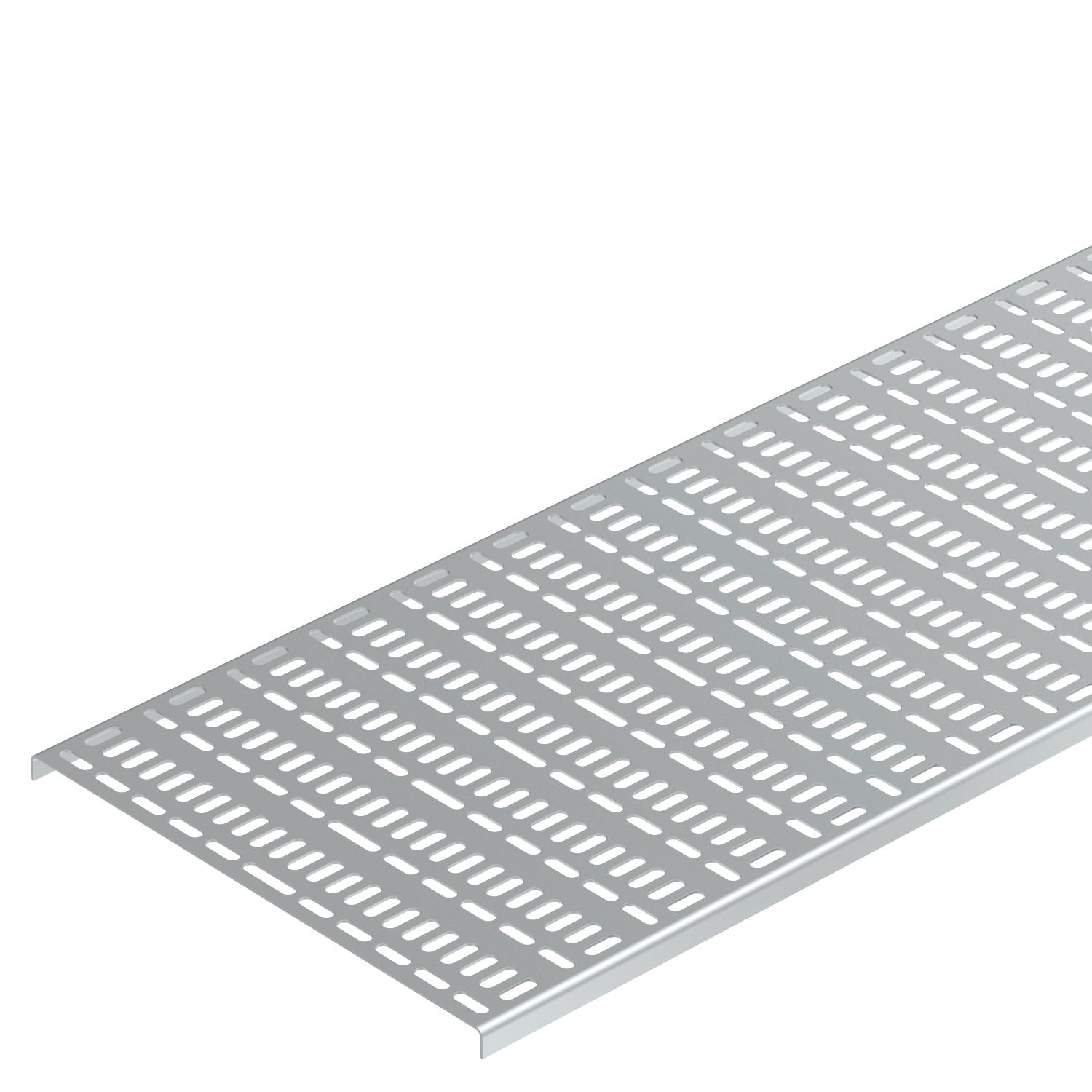

Cable tray, marine standard, ALU

All types
