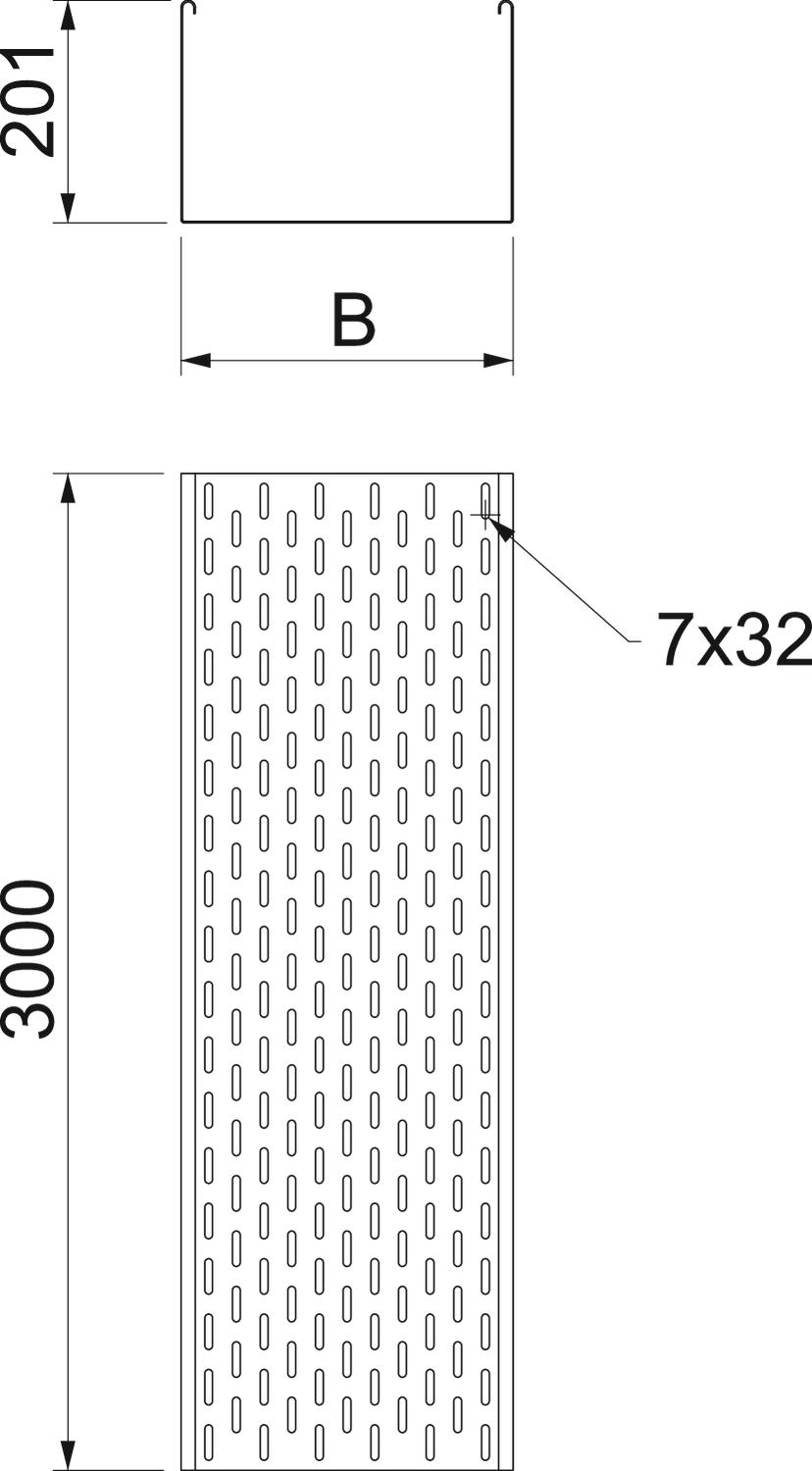

Cable tray MFR 200 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MFR = mobile radio tray

Technical data

Connector version	Without connectors
Dimension	200x400x3000
Dimension	200 x 400
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,06 in
Plate thickness	1,5 mm

Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	80000 mm²
Usable cross-section	800 cm²
Wide-span version	no
With cover	no

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MFR 220 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6083056	m	3 m

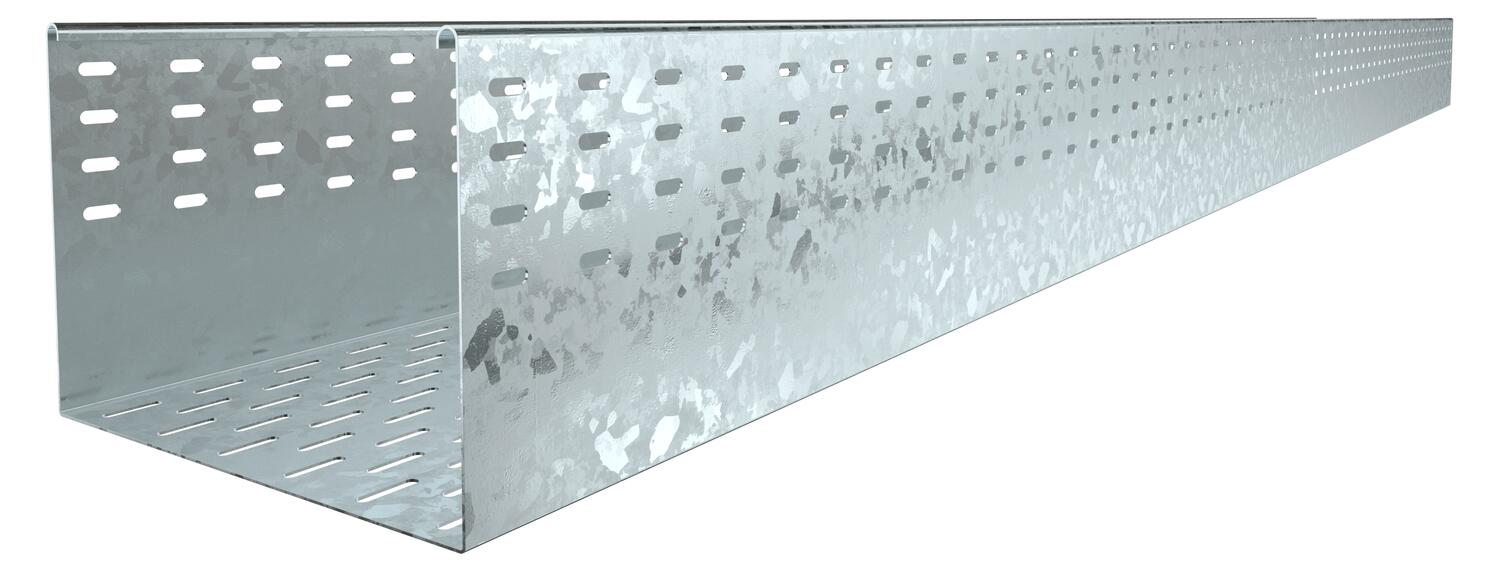

MFR 230 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6083060	m	3 m

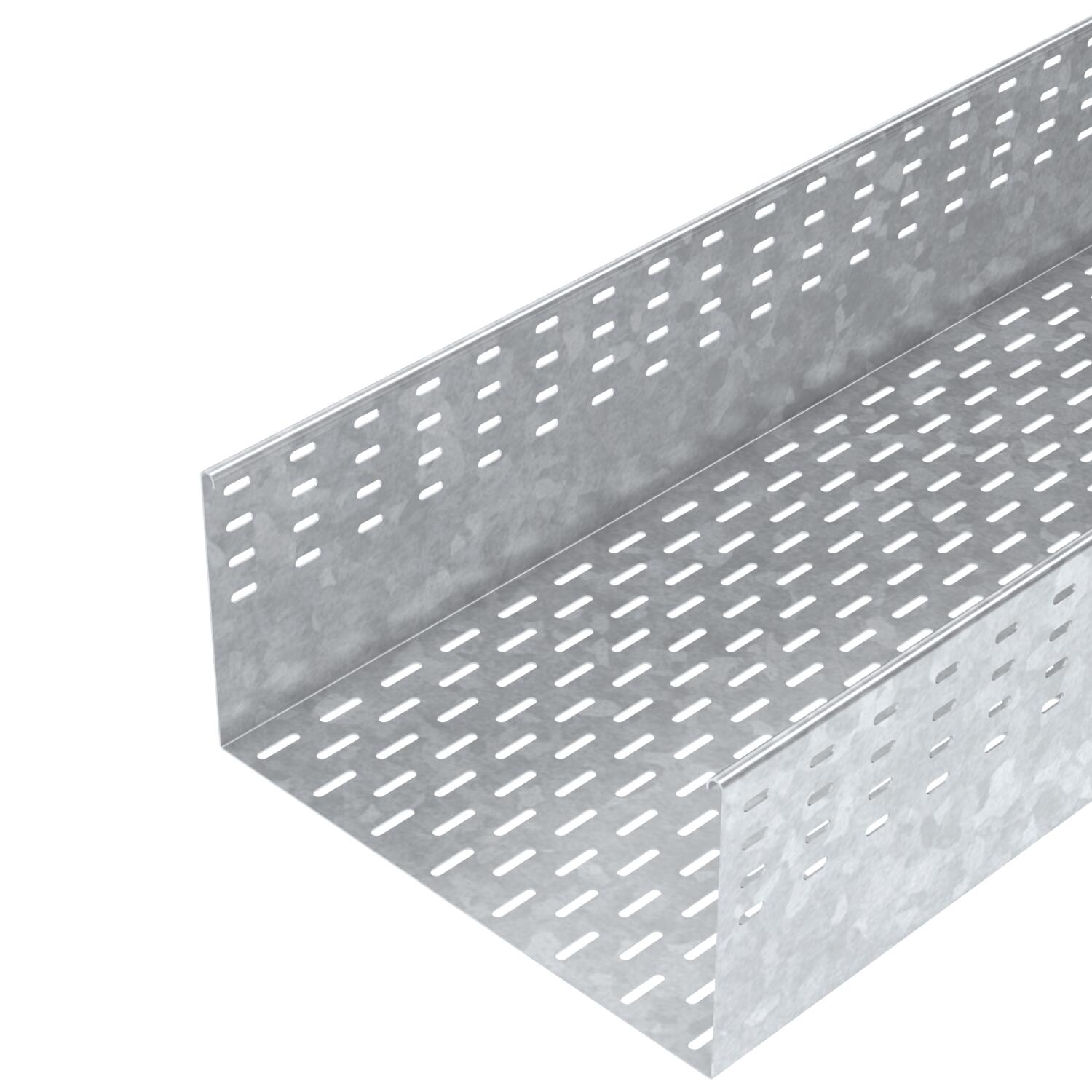

MFR 240 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6083064	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

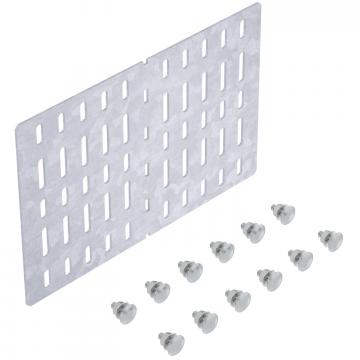

Straight and angle connector 200 FT	LWVM 200 FT	6083200	piece	2 piece
Cover with turn buckle 200 FT	DMFR 400 FT	6083154	m	3 m

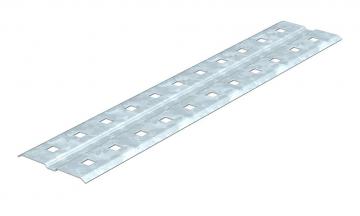

Joint plate DD	SSLB 400 DD	7070322	piece	20 piece
