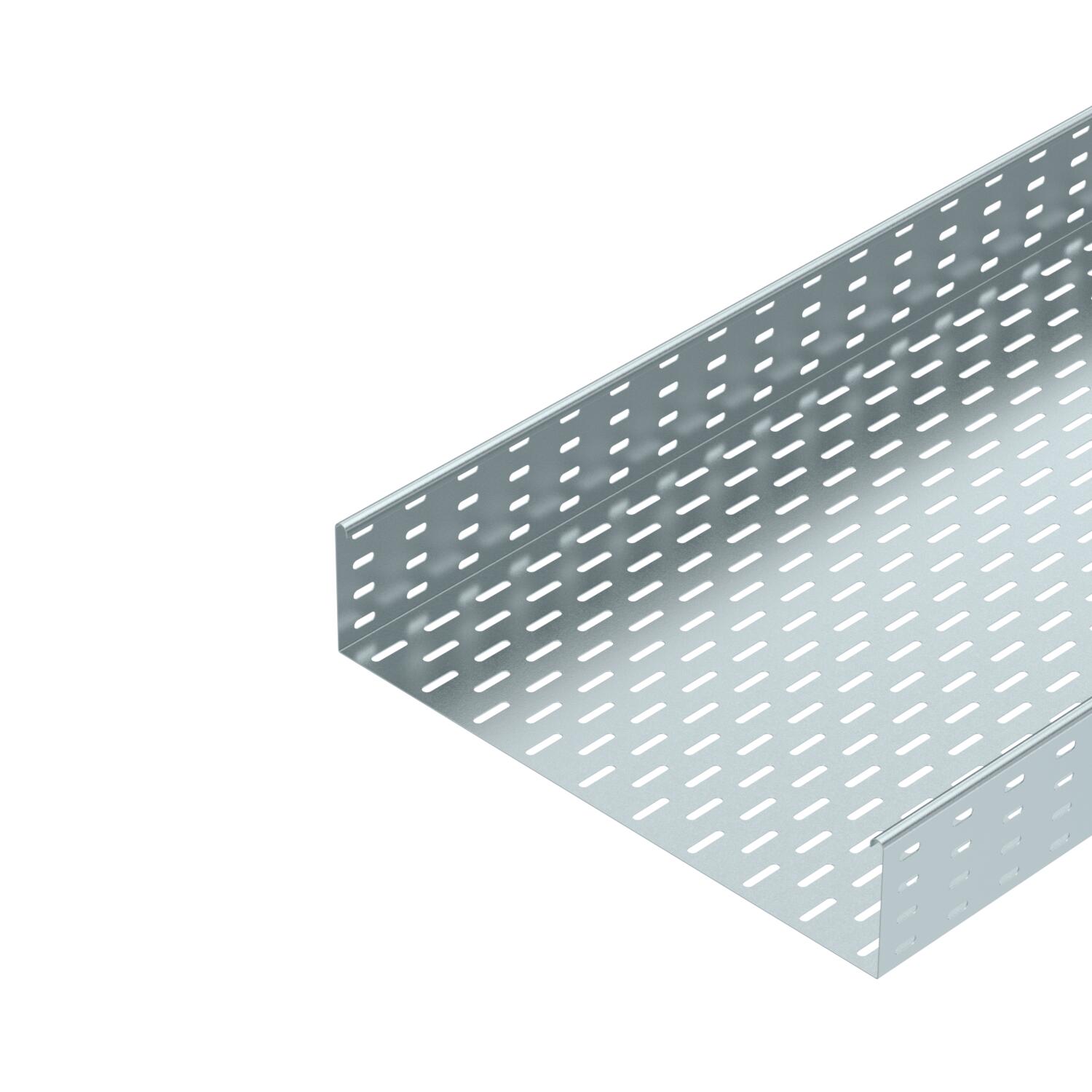

MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Supplied connectors Dimension 110 x 500 Dimension 110x500x3000 Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Side perforation yes Supplied accessories RLVL 110 straight connector Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 548 cm² Usable cross-section 54800 mm² Wide-span version no With cover no Dimensions

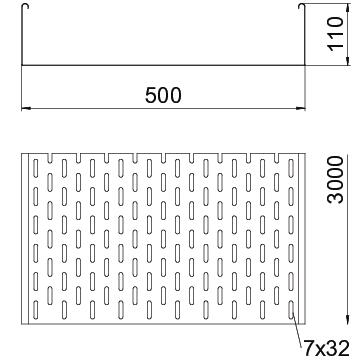

Dimension B 500 mm Height 110 mm Height 4 in Length 3000 mm Length 10 ft Width 500 mm Width 20 in Loads
Support spacing 1.5 m 1,85 kN/m Support spacing 2.0 m 1,3 kN/m Support spacing 2.5 m 0,75 kN/m Support spacing 3.0 m 0,6 kN/m Technical data
Load diagram, cable tray, type MKS 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
