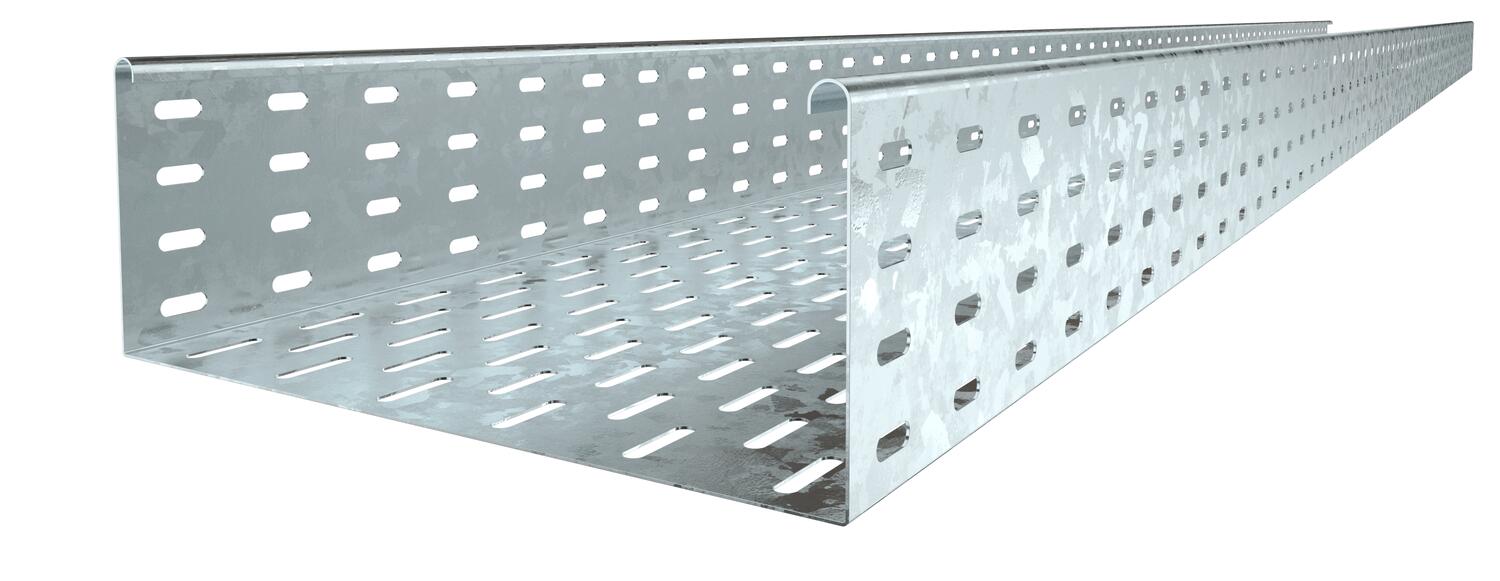

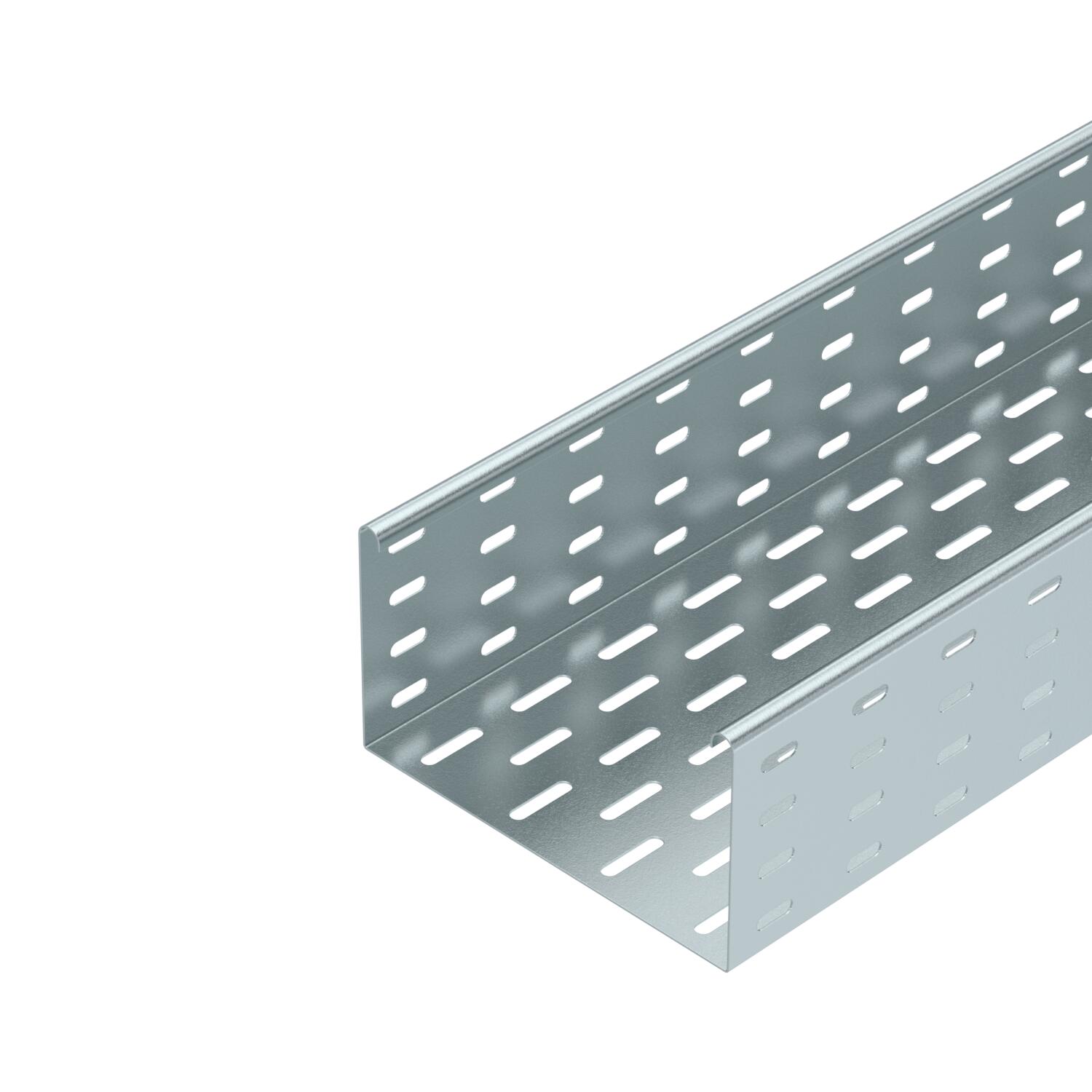

Cable tray MKS 110 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	6,391 kg CO₂e / 1 Meter

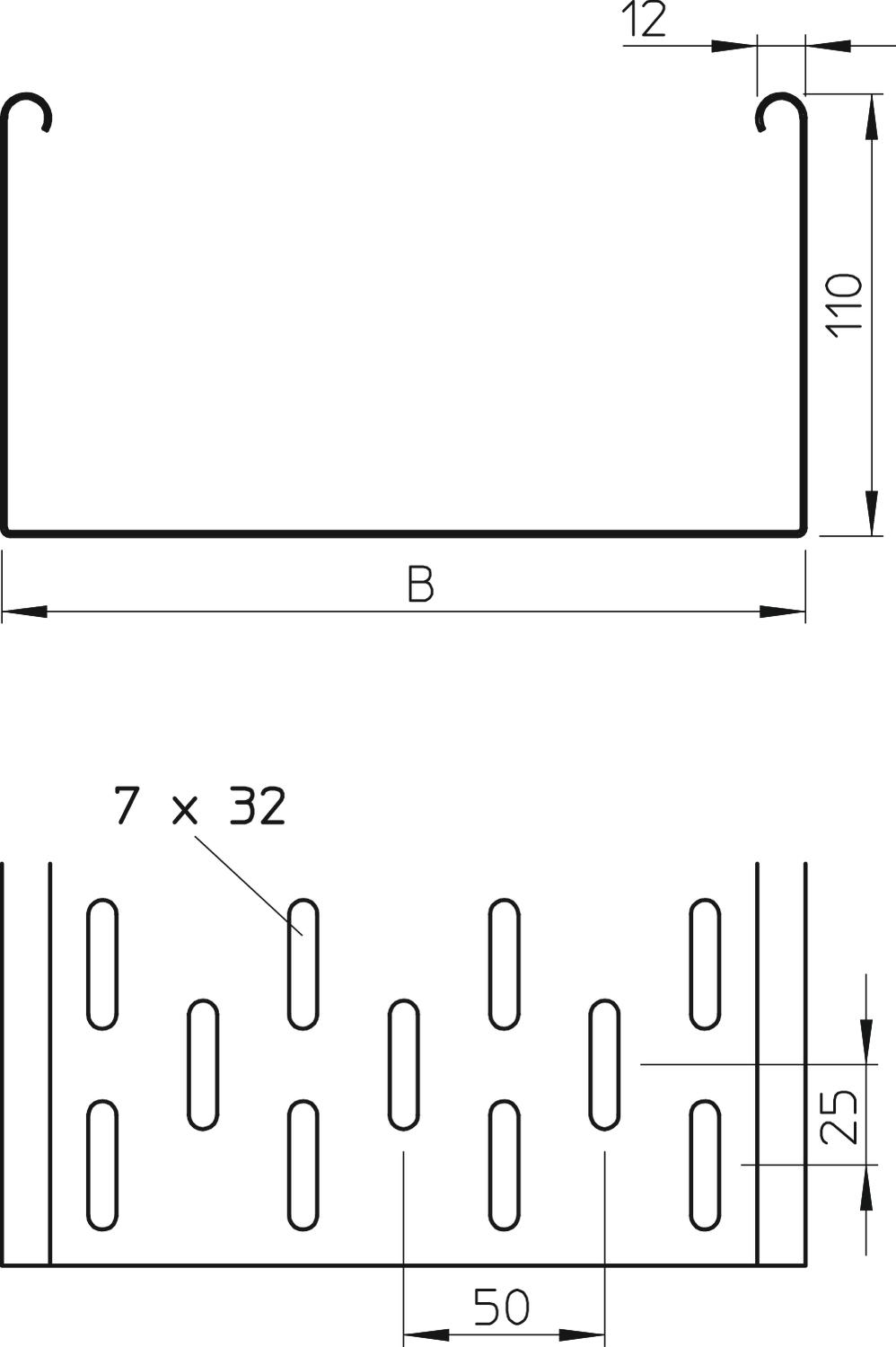

Dimension	110x100x3000
Dimension B	100 mm
Height	110 mm
Height	4 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,04 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	1,85 kN/m
Support spacing 2.0 m	1,3 kN/m
Support spacing 2.5 m	0,75 kN/m
Support spacing 3.0 m	0,6 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	110 cm²
Usable cross-section	11000 mm²
Wide-span version	no
Width	100 mm
Width	4 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 110 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6060609	m	3 m
MKS 120 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6060625	m	3 m
MKS 130 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6060641	m	3 m
MKS 140 FT	3000 mm	400 mm	1 mm	no	Steel	Hot-dip galvanised	6060676	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FT	RLVL 110 FT	6067913	piece	10 piece
Joint plate DD	SSLB 100 DD	7070306	piece	20 piece
Cover with turn buckle FT	DRL 100 FT	6051340	m	3 m
45° bend 110 FT	RB 45 110 FT	6036330	piece	1 piece
90° bend 110 FT	RB 90 110 FT	6036830	piece	1 piece
Bend, angle-adjustable, 110 FT	RB W 110 FT	6037320	piece	1 piece
Add-on tee 110 FT	RAA 110 FT	6042251	piece	1 piece
T piece 110 FT	RT 110 FT	6038320	piece	1 piece
Cross-over 110 FT	RK 110 FT	7027451	piece	1 piece
Cover with turn buckle DD	DRL 100 DD	6052703	m	3 m
Barrier strip 110 DD	TSG 110 DD	6062335	m	3 m
45° bend 110 FT	RB 45 110 FT	7068115	piece	1 piece
