Cable tray MKS 35 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MKS 35 = Medium duty cable tray system with a side height of 35 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	7,25 kg CO₂e / 1 Meter
Dimension	35 x 300
Dimension	35x300x3000
Dimension B	300 mm
Height	35 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,04 in
Plate thickness	1 mm

Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	1,1 kN/m
Support spacing 1.5 m	0,5 kN/m
Support spacing 2.0 m	0,3 kN/m
Support spacing 2.5 m	0,3 kN/m
Support spacing 3.0 m	0,2 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	103 cm²
Usable cross-section	10300 mm²
Wide-span version	no
Width	12 in
Width	300 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 310 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6053106	m	3 m
MKS 315 FT	3000 mm	150 mm	1 mm	no	Steel	Hot-dip galvanised	6053165	m	3 m
MKS 320 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6053203	m	3 m
MKS 330 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6053300	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 35 FT	6067301	piece	10 piece
Cover with turn buckle FT	DRL 300 FT	6051383	m	3 m

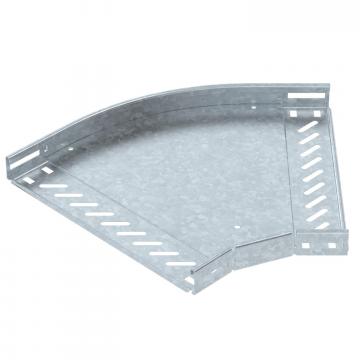

45° bend 35 FT	RB 45 330 FT	6036014	piece	1 piece

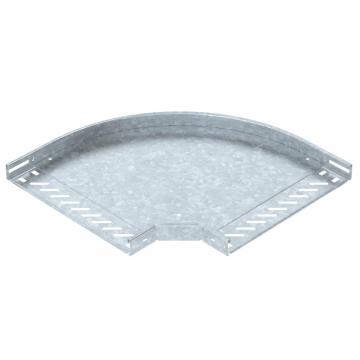

90° bend 35 FT	RB 90 330 FT	6036514	piece	1 piece

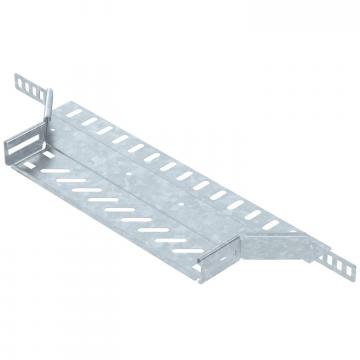

Add-on tee 35 FT	RAA 330 FT	6042205	piece	1 piece

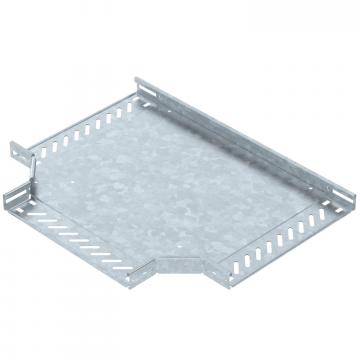

T piece 35 FT	RT 330 FT	6038014	piece	1 piece

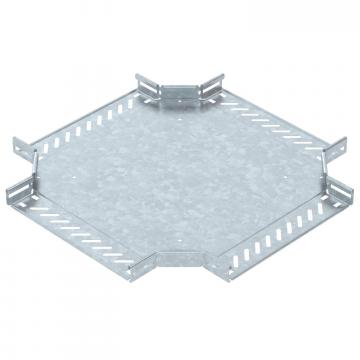

Cross-over 35 FT	RK 330 FT	7027405	piece	1 piece
Cover with turn buckle DD	DRL 300 DD	6052712	m	3 m
Barrier strip 30 DD	TSG 30 DD	6062314	m	3 m
45° bend 35 FT	RB 45 330 FT	7065310	piece	1 piece
90° bend 35 FT	RB 90 330 FT	7124325	piece	1 piece
