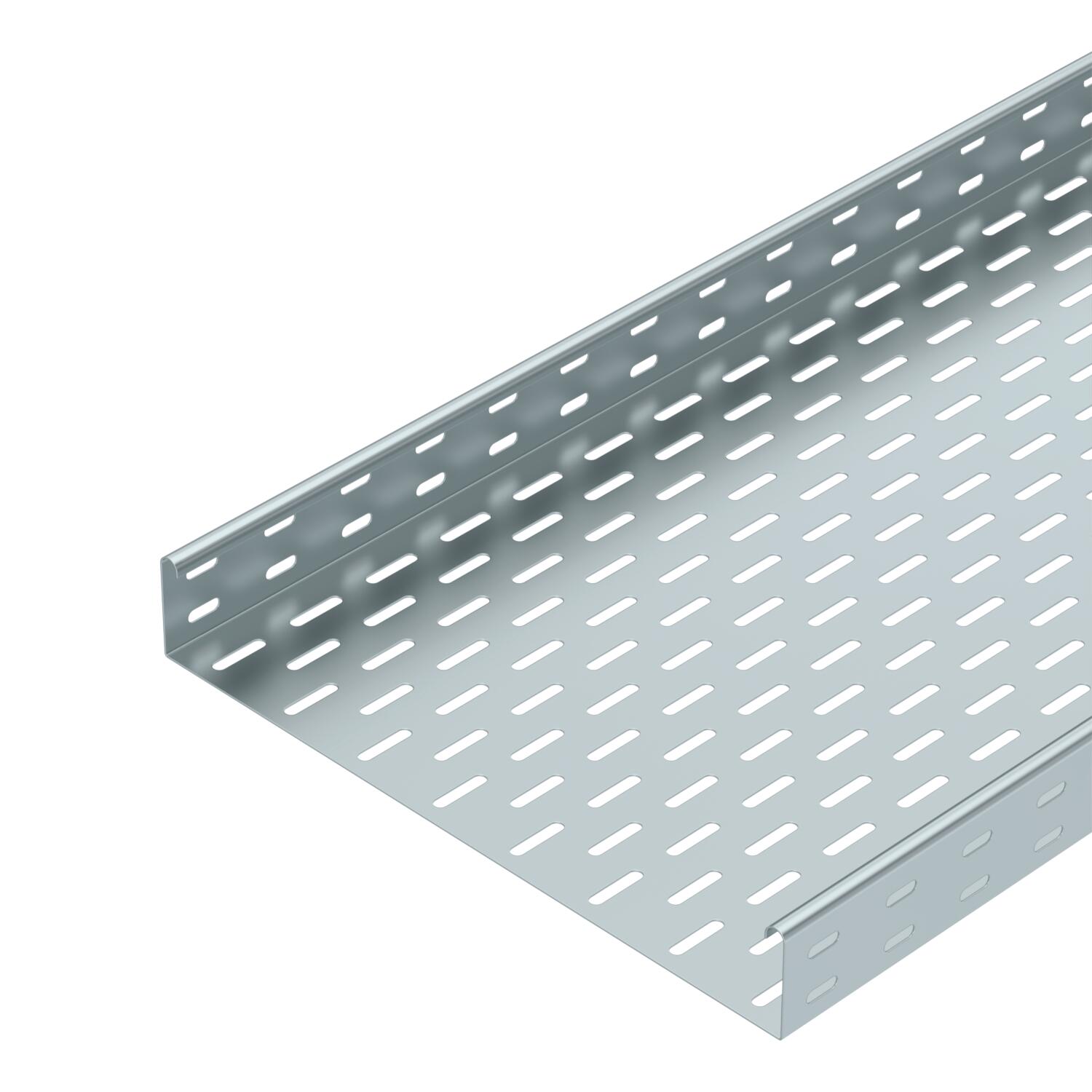

Cable tray MKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKS 60 = medium-duty cable tray system with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	10,142 kg CO₂e / 1 Meter

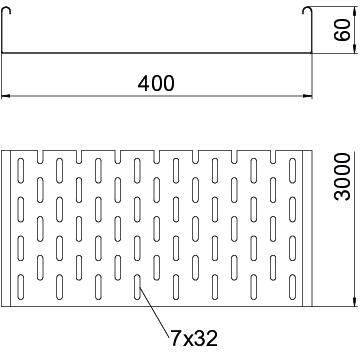

Dimension	60 x 400
Dimension	60x400x3000
Dimension B	400 mm
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	400 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,04 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RV 60 straight connector set
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	23800 mm²
Usable cross-section	238 cm²
Wide-span version	no
Width	16 in
Width	400 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 610 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6055109	m	3 m
MKS 615 FS	3000 mm	150 mm	1 mm	no	Steel	Strip galvanized	6055141	m	3 m
MKS 620 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6055206	m	3 m
MKS 630 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6055303	m	3 m
MKS 640 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6055400	m	3 m
MKS 650 FS	3000 mm	500 mm	1 mm	no	Steel	Strip galvanized	6055508	m	3 m
MKS 660 FS	3000 mm	600 mm	1 mm	no	Steel	Strip galvanized	6055524	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece
Joint plate FS	SSLB 400 FS	7070221	piece	20 piece
45° bend 60 FS	RB 45 640 FS	6036108	piece	1 piece
90° bend 60 FS	RB 90 640 FS	6036568	piece	1 piece
Bend, angle-adjustable, 60 FS	RB W 640 FS	6037108	piece	1 piece
Add-on tee 60 FS	RAA 640 FS	6042119	piece	1 piece
T piece 60 FS	RT 640 FS	6038108	piece	1 piece
Cross-over 60 FS	RK 640 FS	7027317	piece	1 piece
Cover with turn buckle FS	DRL 400 FS	6052401	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
90° bend 60 FS	RB 90 640 FS	7001290	piece	1 piece
