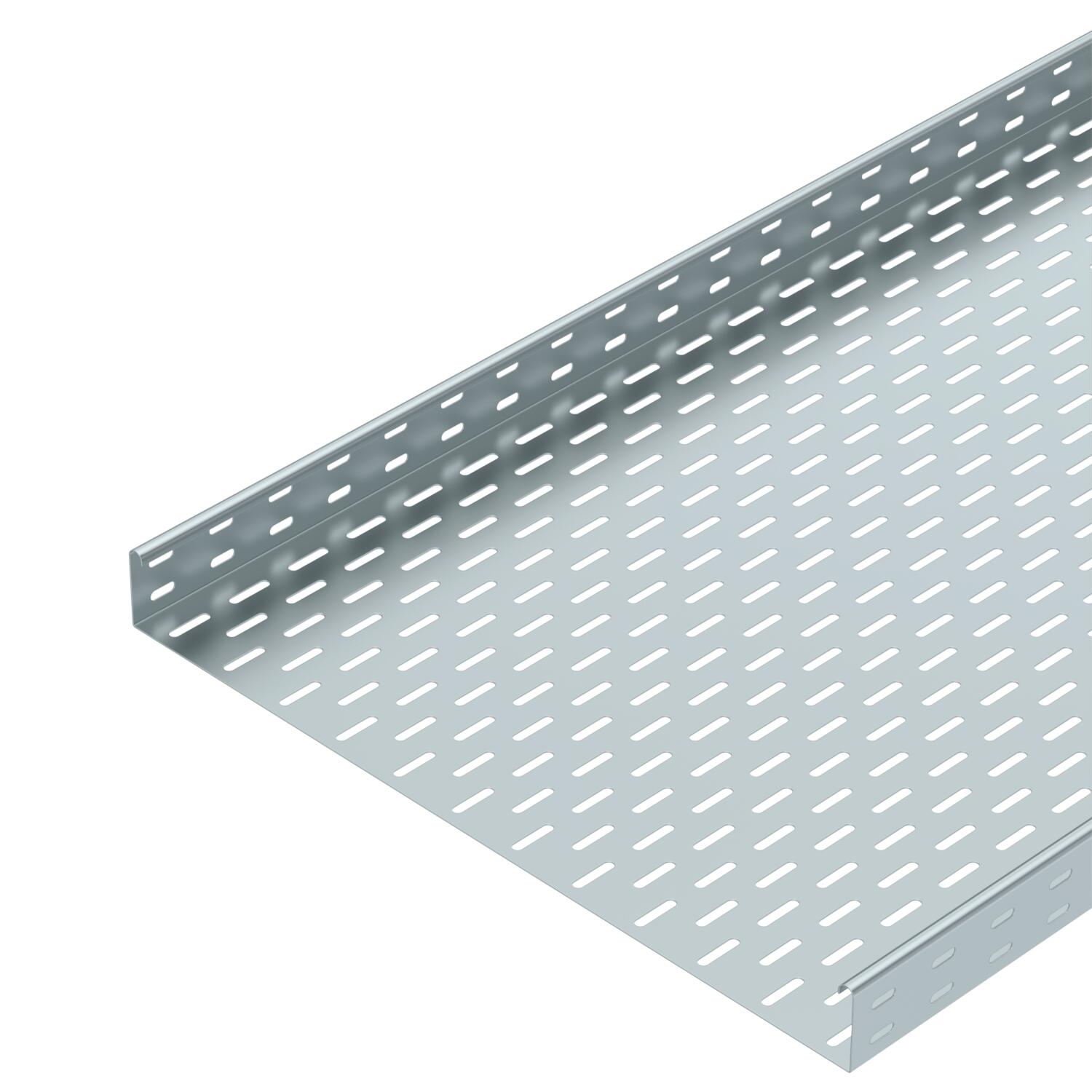

Cable tray MKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKS 60 = medium-duty cable tray system with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	13,822 kg CO₂e / 1 Meter

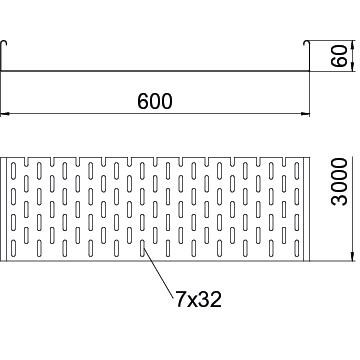

Dimension	60 x 600
Dimension	60x600x3000
Dimension B	600 mm
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	600 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,04 in

Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RV 60 straight connector set
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	358 cm²
Usable cross-section	35800 mm²
Wide-span version	no
Width	600 mm
Width	24 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 610 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6055109	m	3 m
MKS 615 FS	3000 mm	150 mm	1 mm	no	Steel	Strip galvanized	6055141	m	3 m
MKS 620 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6055206	m	3 m
MKS 630 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6055303	m	3 m
MKS 640 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6055400	m	3 m
MKS 650 FS	3000 mm	500 mm	1 mm	no	Steel	Strip galvanized	6055508	m	3 m
MKS 660 FS	3000 mm	600 mm	1 mm	no	Steel	Strip galvanized	6055524	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece
Joint plate FS	SSLB 600 FS	7070233	piece	20 piece
45° bend 60 FS	RB 45 660 FS	6036113	piece	1 piece
90° bend 60 FS	RB 90 660 FS	6036572	piece	1 piece
Bend, angle-adjustable, 60 FS	RB W 660 FS	6037112	piece	1 piece
Add-on tee 60 FS	RAA 660 FS	6042123	piece	1 piece
T piece 60 FS	RT 660 FS	6038112	piece	1 piece
Cross-over 60 FS	RK 660 FS	7027321	piece	1 piece
Cover with turn buckle FS	DRL 600 FS	6052606	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
45° bend 60 FS	RB 45 660 FS	7000421	piece	1 piece
90° bend 60 FS	RB 90 660 FS	7001312	piece	1 piece
