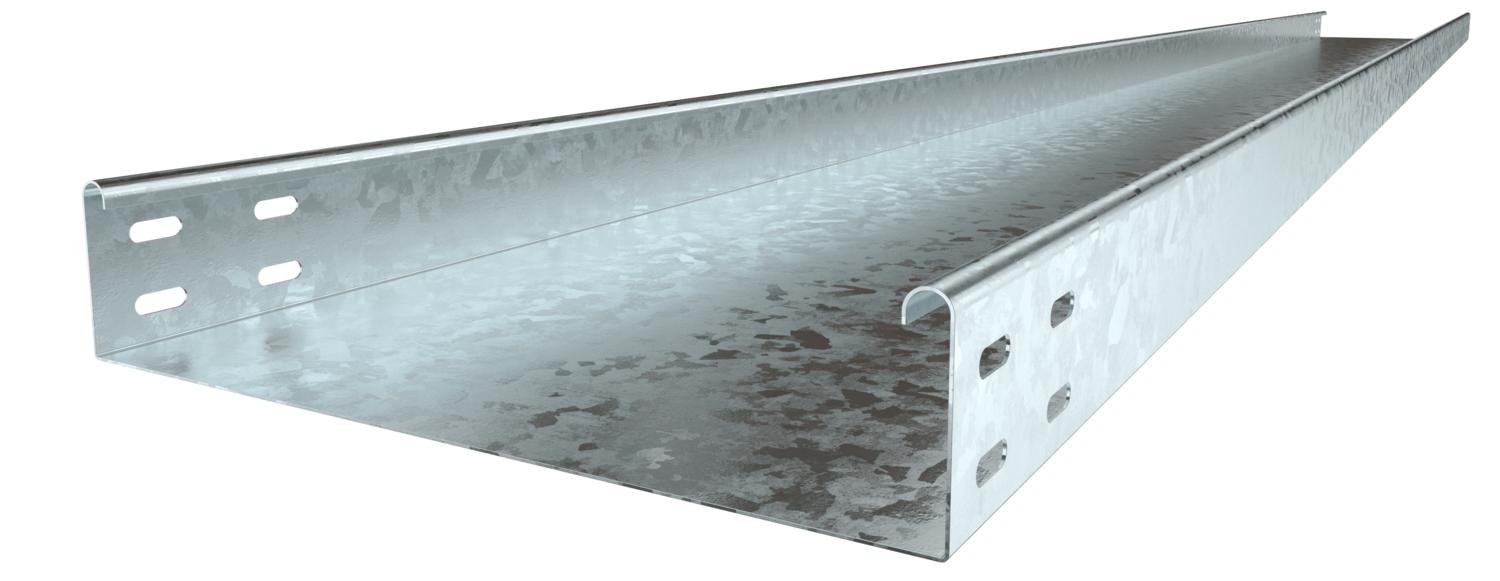

Cable tray MKSU 60 FT

Item no. 6064302 | EAN 4012196396795

3000 mm
1 mm
no
Steel
Hot-dip galvanised
Product description
Product description
MKSU 60 = Medium duty cable tray system, unperforated, with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 4,64 kg CO₂e / 1 Meter
Dimension 60x100x3000
Height 2 in
Height 60 mm
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 0,04 in
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.5 m 1,5 kN/m
Support spacing 1.75 m 1,25 kN/m
Support spacing 2.0 m 1 kN/m
Support spacing 2.5 m 0,5 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 58 cm²
Usable cross-section 5800 mm²
Wide-span version no
Width 100 mm
Width 4 in
With cover no

Technical data

Load diagram, cable tray, type MKSU 60 FS FT

Load diagram, cable tray, type MKSU 60 FS FT
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
MKSU 610 FT 3000 mm 100 mm 1 mm no Steel Hot-dip galvanised 6064302
3 m
MKSU 615 FT 3000 mm 150 mm 1 mm no Steel Hot-dip galvanised 6064319
3 m
MKSU 620 FT 3000 mm 200 mm 1 mm no Steel Hot-dip galvanised 6064345
3 m
MKSU 630 FT 3000 mm 300 mm 1 mm no Steel Hot-dip galvanised 6064396
3 m
MKSU 640 FT 3000 mm 400 mm 1 mm no Steel Hot-dip galvanised 6064426
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT RLVK 60 FT 6067603
10 piece
Joint plate DD Joint plate DD SSLB 100 DD 7070306
20 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 100 FT 6051340
3 m
45° bend 60 FT 45° bend 60 FT RB 45 610 FT 6036130
1 piece
90° bend 60 FT 90° bend 60 FT RB 90 610 FT 6036590
1 piece
Bend, angle-adjustable, 60 FT Bend, angle-adjustable, 60 FT RB W 610 FT 6037120
1 piece
Add-on tee 60 FT Add-on tee 60 FT RAA 610 FT 6042211
1 piece
T piece 60 FT T piece 60 FT RT 610 FT 6038130
1 piece
Cross-over 60 FT Cross-over 60 FT RK 610 FT 7027411
1 piece
Cover with turn buckle DD Cover with turn buckle DD DRL 100 DD 6052703
3 m
Barrier strip 60 DD Barrier strip 60 DD TSG 60 DD 6062327
3 m
90° bend 60 FT 90° bend 60 FT RB 90 610 FT 7125100
1 piece
