Cable tray MKSU 60 FT

Item no. 6064426 | EAN 4012196397099

3000 mm
1 mm
no
Steel
Hot-dip galvanised
Product description
Product description
MKSU 60 = Medium duty cable tray system, unperforated, with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 10,301 kg CO₂e / 1 Meter
Dimension 60x400x3000
Height 2 in
Height 60 mm
Length 3000 mm
Length 10 ft
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 0,04 in
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.5 m 1,5 kN/m
Support spacing 1.75 m 1,25 kN/m
Support spacing 2.0 m 1 kN/m
Support spacing 2.5 m 0,5 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 238 cm²
Usable cross-section 23800 mm²
Wide-span version no
Width 16 in
Width 400 mm
With cover no

Technical data

Load diagram, cable tray, type MKSU 60 FS FT

Load diagram, cable tray, type MKSU 60 FS FT
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
MKSU 610 FT 3000 mm 100 mm 1 mm no Steel Hot-dip galvanised 6064302
3 m
MKSU 615 FT 3000 mm 150 mm 1 mm no Steel Hot-dip galvanised 6064319
3 m
MKSU 620 FT 3000 mm 200 mm 1 mm no Steel Hot-dip galvanised 6064345
3 m
MKSU 630 FT 3000 mm 300 mm 1 mm no Steel Hot-dip galvanised 6064396
3 m
MKSU 640 FT 3000 mm 400 mm 1 mm no Steel Hot-dip galvanised 6064426
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT RLVK 60 FT 6067603
10 piece
Joint plate DD Joint plate DD SSLB 400 DD 7070322
20 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 400 FT 6051413
3 m

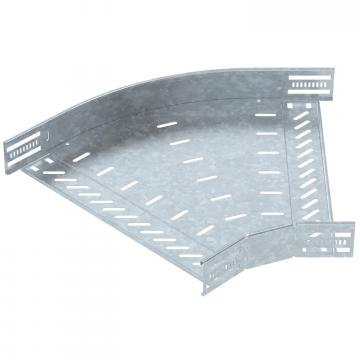

45° bend 60 FT 45° bend 60 FT RB 45 640 FT 6036138
1 piece

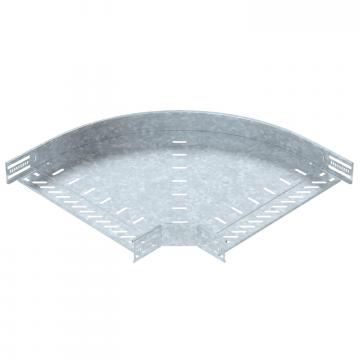

90° bend 60 FT 90° bend 60 FT RB 90 640 FT 6036598
1 piece

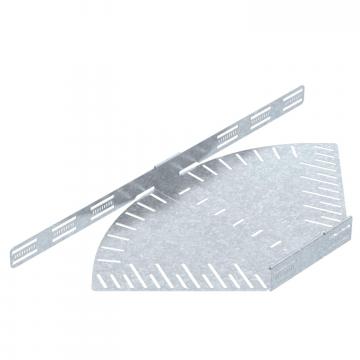

Bend, angle-adjustable, 60 FT Bend, angle-adjustable, 60 FT RB W 640 FT 6037128
1 piece

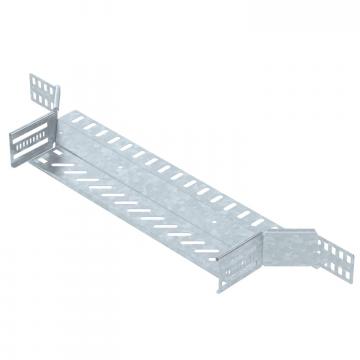

Add-on tee 60 FT Add-on tee 60 FT RAA 640 FT 6042219
1 piece

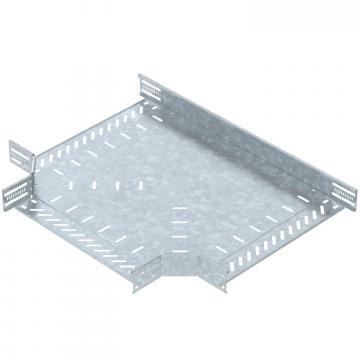

T piece 60 FT T piece 60 FT RT 640 FT 6038138
1 piece

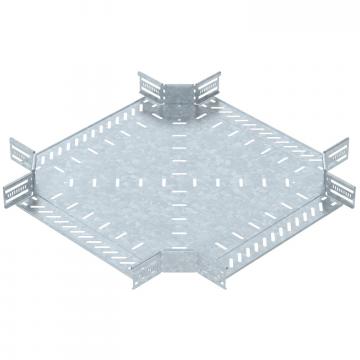

Cross-over 60 FT Cross-over 60 FT RK 640 FT 7027417
1 piece
Cover with turn buckle DD Cover with turn buckle DD DRL 400 DD 6052715
3 m
Barrier strip 60 DD Barrier strip 60 DD TSG 60 DD 6062327
3 m
45° bend 60 FT 45° bend 60 FT RB 45 640 FT 7066406
1 piece
