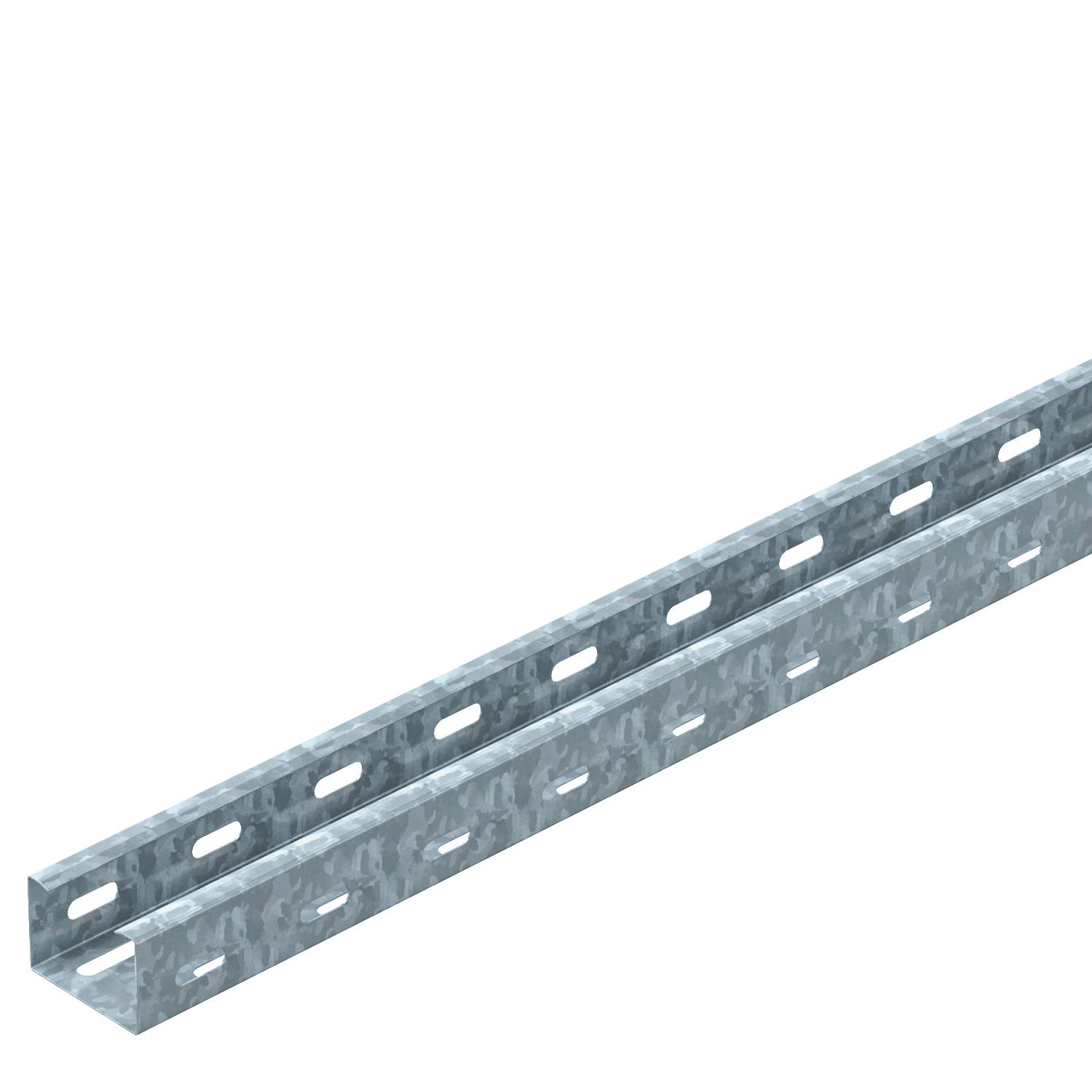

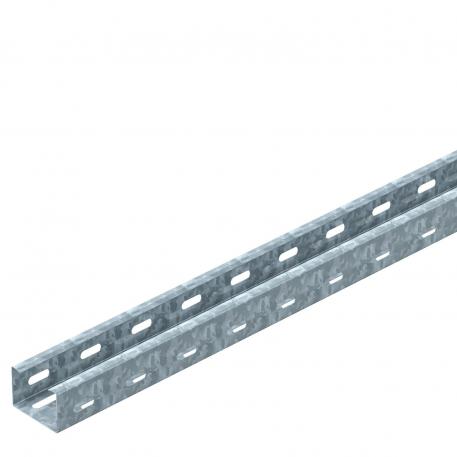

Cable tray RKS 35 FT

Item no. / Types	6047412 / RKS 305 FT

Length	3000 mm

Width	50 mm

Plate thickness	0.75 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

RKS 35 = Rational cable tray system with 35 mm side height.
Matching cover with turn buckle: Type AZDMD 50

Technical data

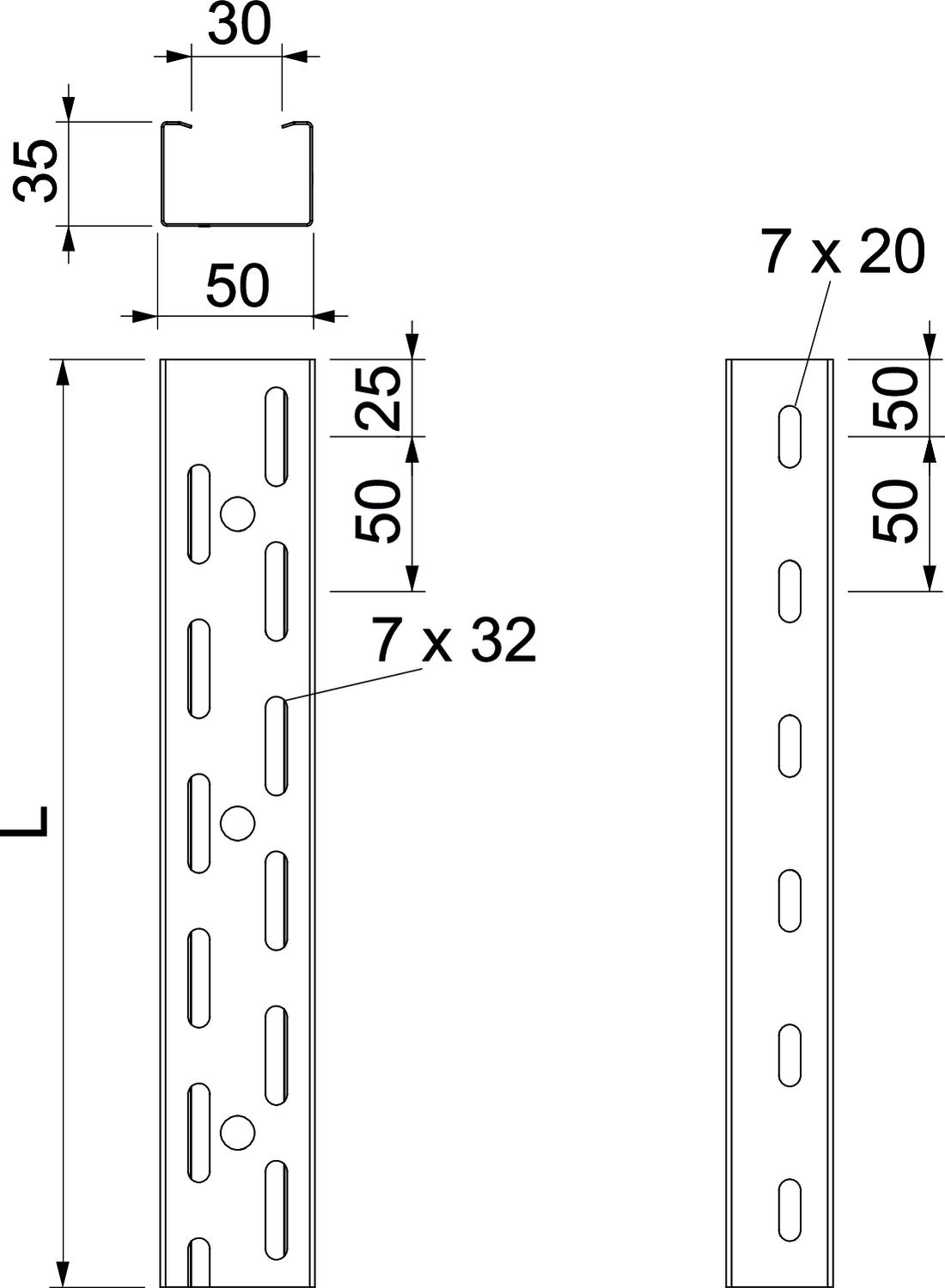

Base perforation	7 x 32
Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	1,938 kg CO₂e / 1 Meter
Dimension	35x50x3000
Dimension	35x50
Dimension L	3000 mm
Height	35 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,75 mm

Rustproof steel, pickled	no
Side perforation	yes

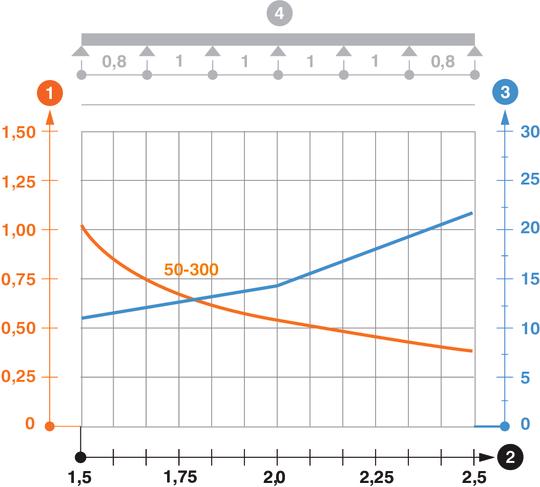

Support spacing 1.0 m	1,2 kN/m
Support spacing 1.5 m	0,5 kN/m
Support spacing 2.0 m	0,3 kN/m
Support spacing 2.5 m	0,1 kN/m
Support spacing 3.0 m	0,05 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	16 cm²
Usable cross-section	1600 mm²
Wide-span version	no
Width	50 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
RKS 305 FT	3000 mm	50 mm	0.75 mm	no	Steel	Hot-dip galvanised	6047412	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

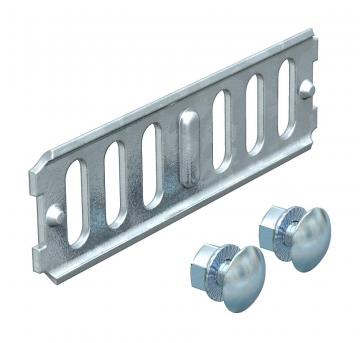

Straight connector FT	RLVK 35 FT	6067301	piece	10 piece
90° bend 35 FT	RB 90 305 FT	7124410	piece	1 piece

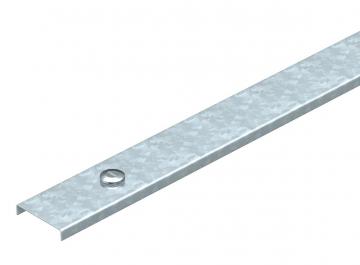

Cover with turn buckle DD	AZDMD 50 DD	6080154	m	3 m

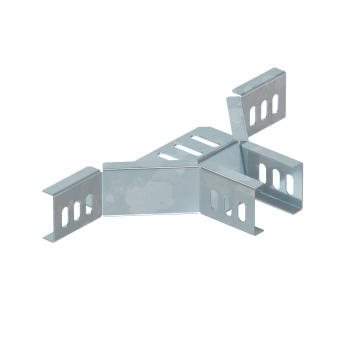

Add-on tee 35 FT	RAA 305 FT	7120458	piece	1 piece
