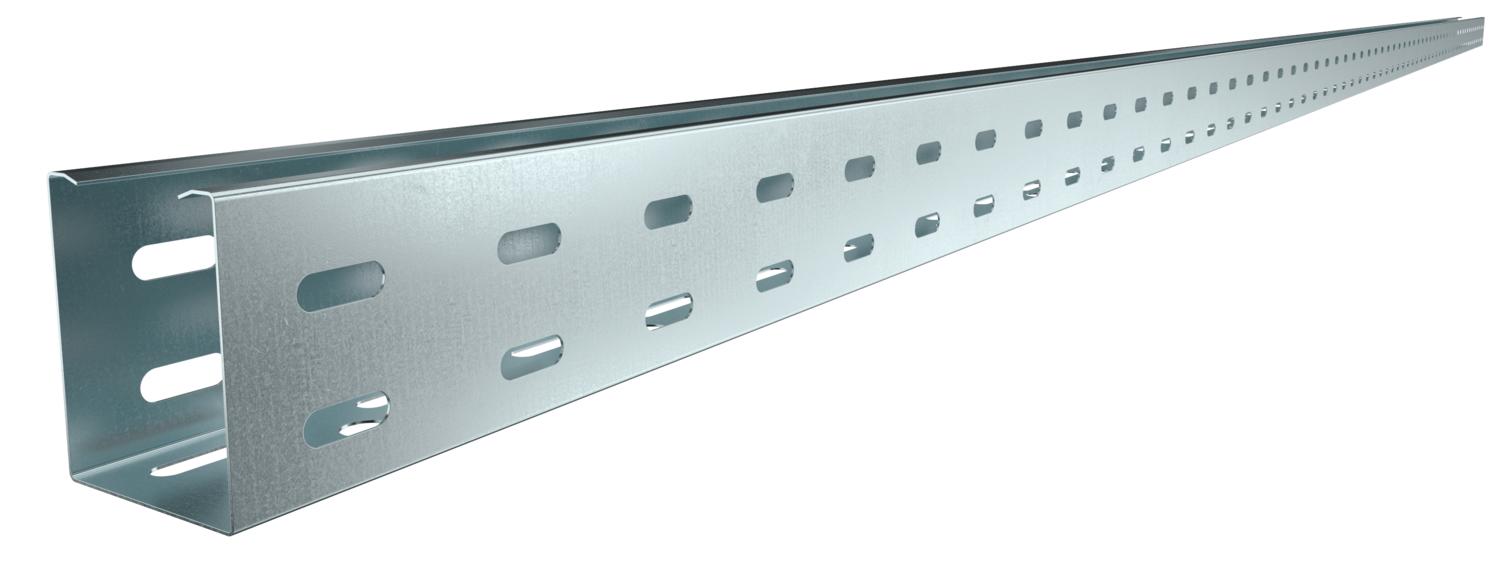

Cable tray RKS 60 FS perforated

Item no. / Types	6047600 / RKS 605 FS

Length	3000 mm

Width	50 mm

Plate thickness	0.75 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

RKS 60 = Rational cable tray system with 60 mm side height (unbeaded base plate).
Matching cover with turn buckle: Type AZDMD 50

Technical data

Base perforation	7 x 32
Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	2,407 kg CO₂e / 1 Meter
Dimension	60x50x3000
Dimension	60x50
Dimension L	3000 mm
Height	60 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,75 mm

Rustproof steel, pickled	no
Side perforation	yes

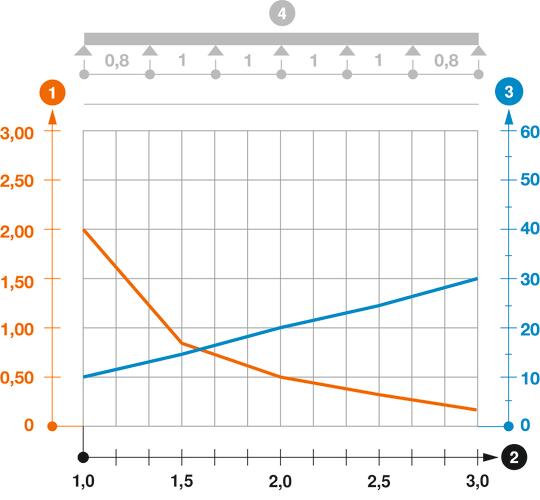

Support spacing 1.0 m	2 kN/m
Support spacing 1.5 m	0,8 kN/m
Support spacing 2.0 m	0,5 kN/m
Support spacing 2.5 m	0,35 kN/m
Support spacing 3.0 m	0,15 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	3000 mm²
Usable cross-section	30 cm²
Wide-span version	no
Width	50 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
RKS 605 FS	3000 mm	50 mm	0.75 mm	no	Steel	Strip galvanized	6047600	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece

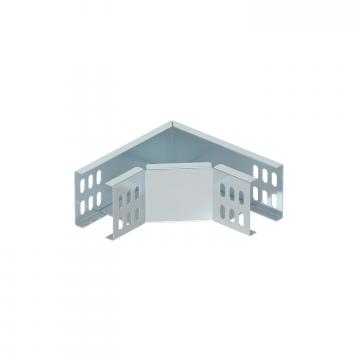

90° bend 60 FS	RB 90 605 FS	7124430	piece	1 piece
Cover with turn buckle FS	AZDMD 50 FS	6080138	m	3 m

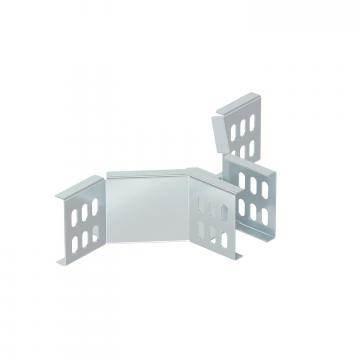

Add-on tee 60 FS	RAA 605 FS	7120460	piece	1 piece
