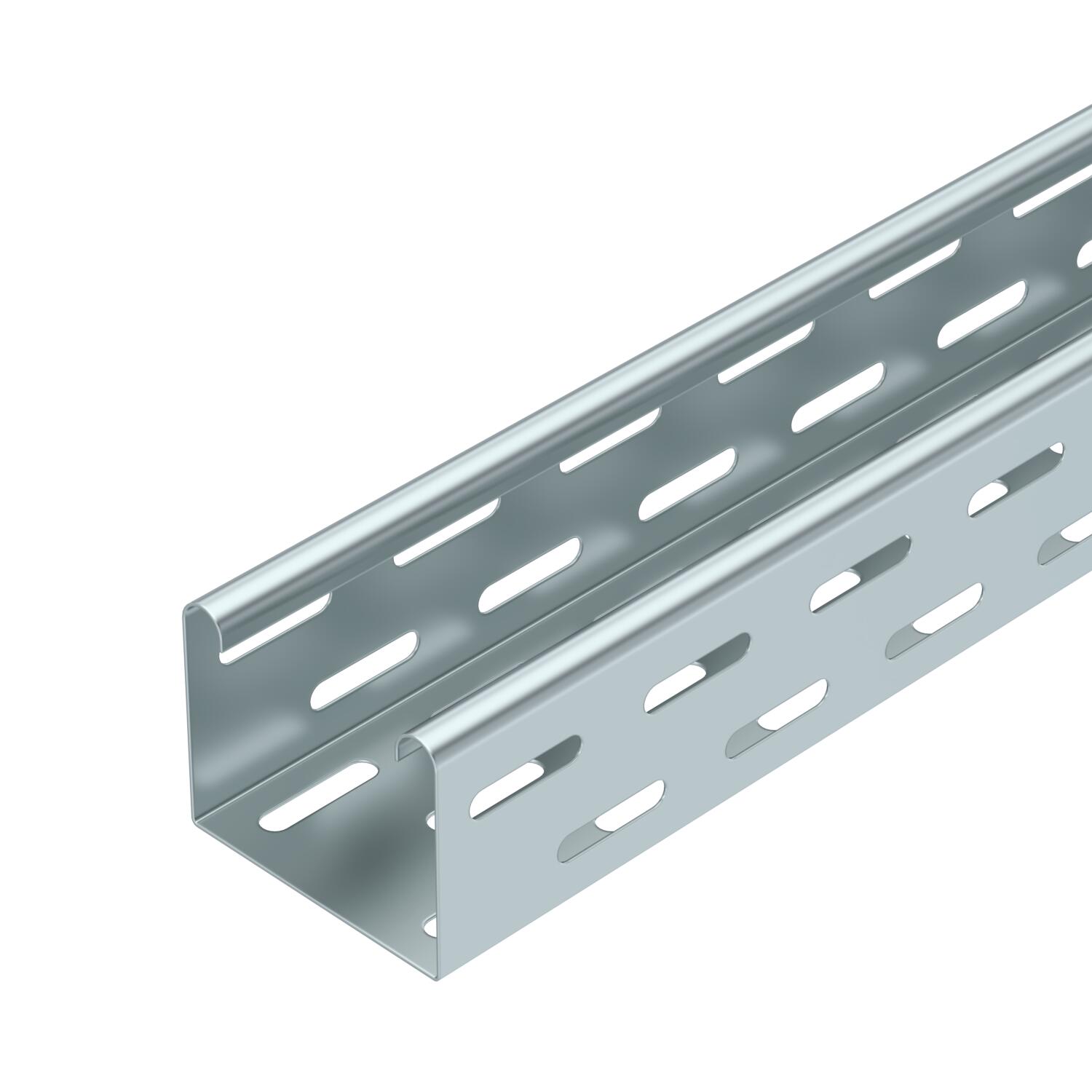

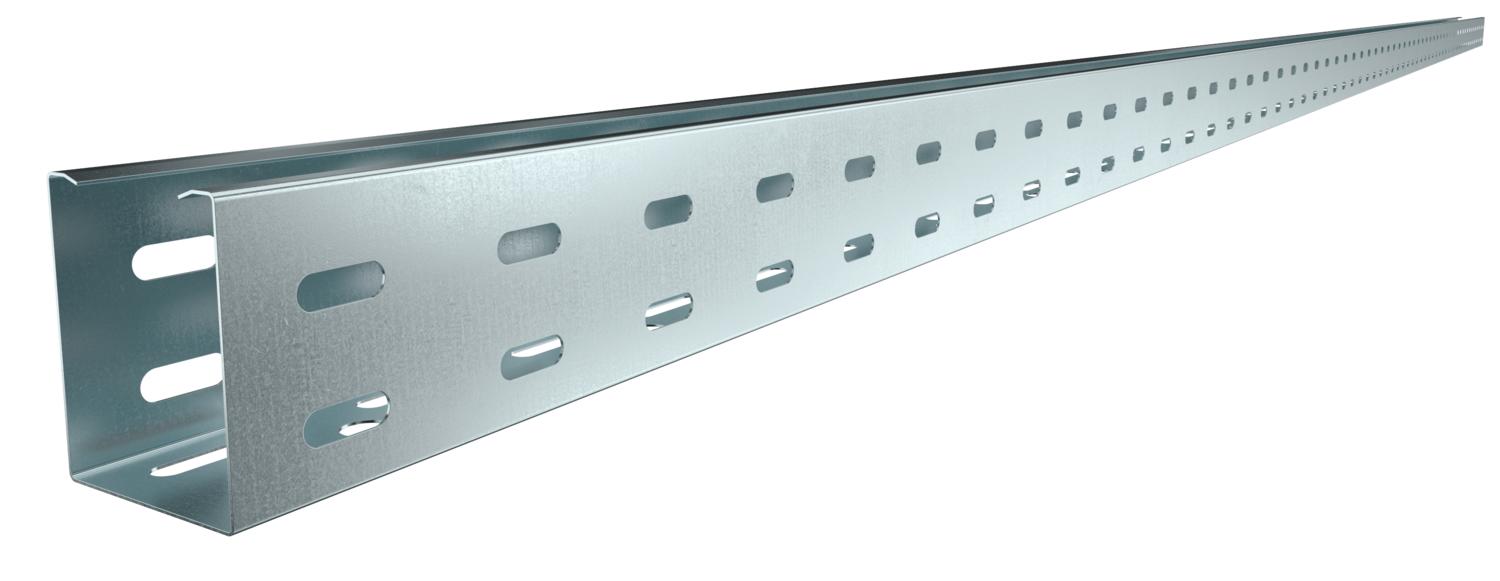

Cable tray RKS 60 FS perforated, w/o floor beading
Item no. 6055893 | EAN 4012196388691
- Product description
-
Product descriptionRKS 60 = Rational cable tray system with 60 mm side height (unbeaded base plate).
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

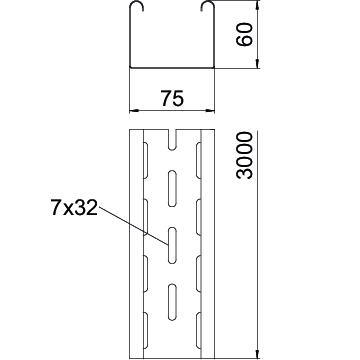

Base perforation 1 Colour zinc Connector version Supplied connectors CO₂ Footprint (GWP) Cradle-to-Gate 3,058 kg CO₂e / 1 Meter Dimension 60 x 75 Dimension 60x75x3000 Dimension B 75 mm Dimension L 3000 mm Height 60 mm Height 2 in Length 3000 mm Length 10 ft Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 0,03 in Plate thickness 0,75 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 1,3 kN/m Support spacing 1.5 m 0,65 kN/m Support spacing 2.0 m 0,4 kN/m Support spacing 2.5 m 0,25 kN/m Support spacing 3.0 m 0,15 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 4200 mm² Usable cross-section 42 cm² Wide-span version no Width 3 in Width 75 mm With cover no Technical data
Load diagram, cable tray, type RKS 60
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight connector FS
RLVK 60 FS 6067093 10 piece
90° bend 60 FS
RB 90 605 FS 7124430 1 piece
Separating retainer 60 FS
TSG 60 FS 6062068 3 m - Downloads
-
Data sheet RKS 607 FS / 6055893 , 0.34MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RKS 607 FS / 6055893 , 0.10MB , pdfREACH Declaration of conformity RKS 607 FS / 6055893 , 0.27MB , pdfRoHS Declaration of conformity RKS 607 FS / 6055893 , 0.28MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfNo invitation to tender text is available for this product.
