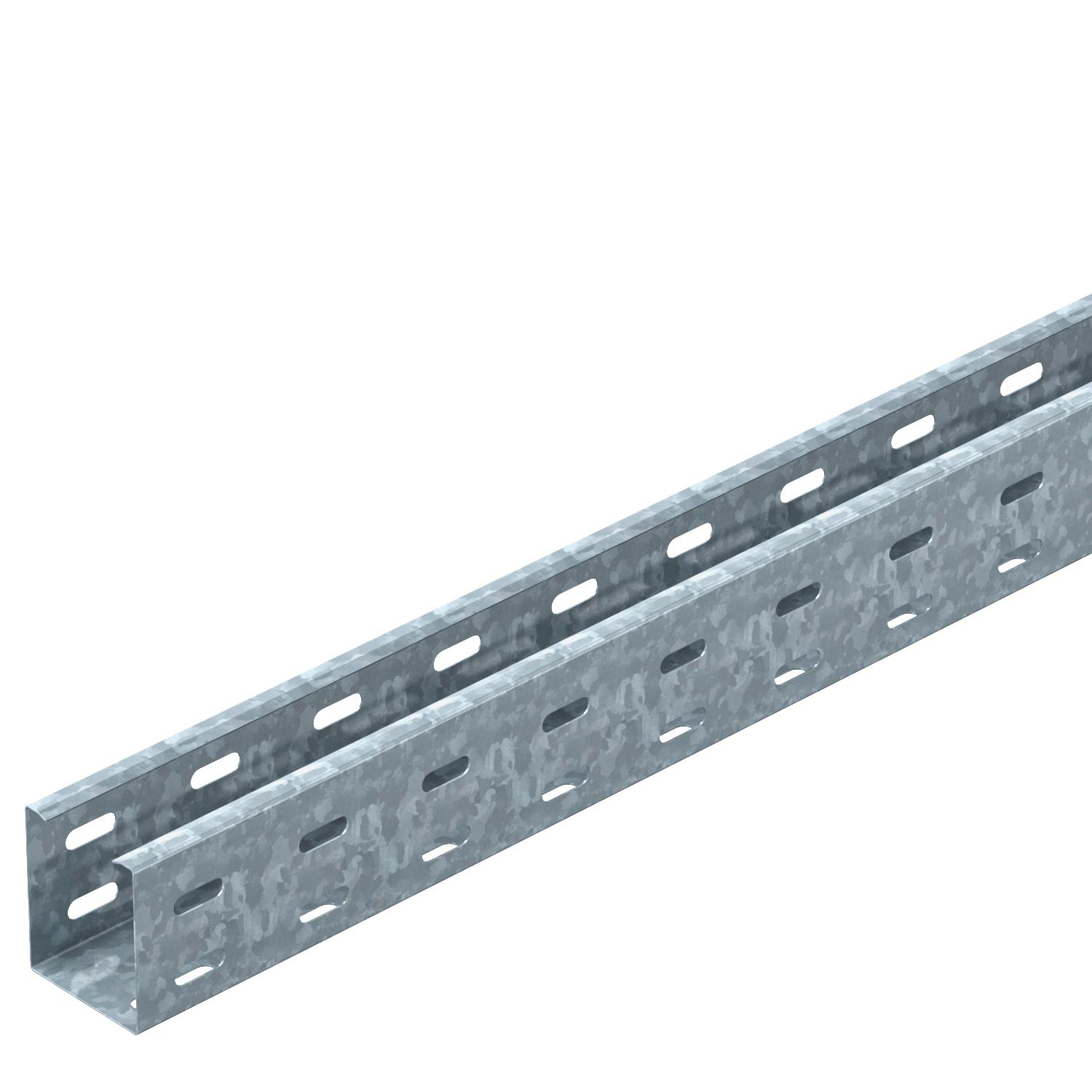

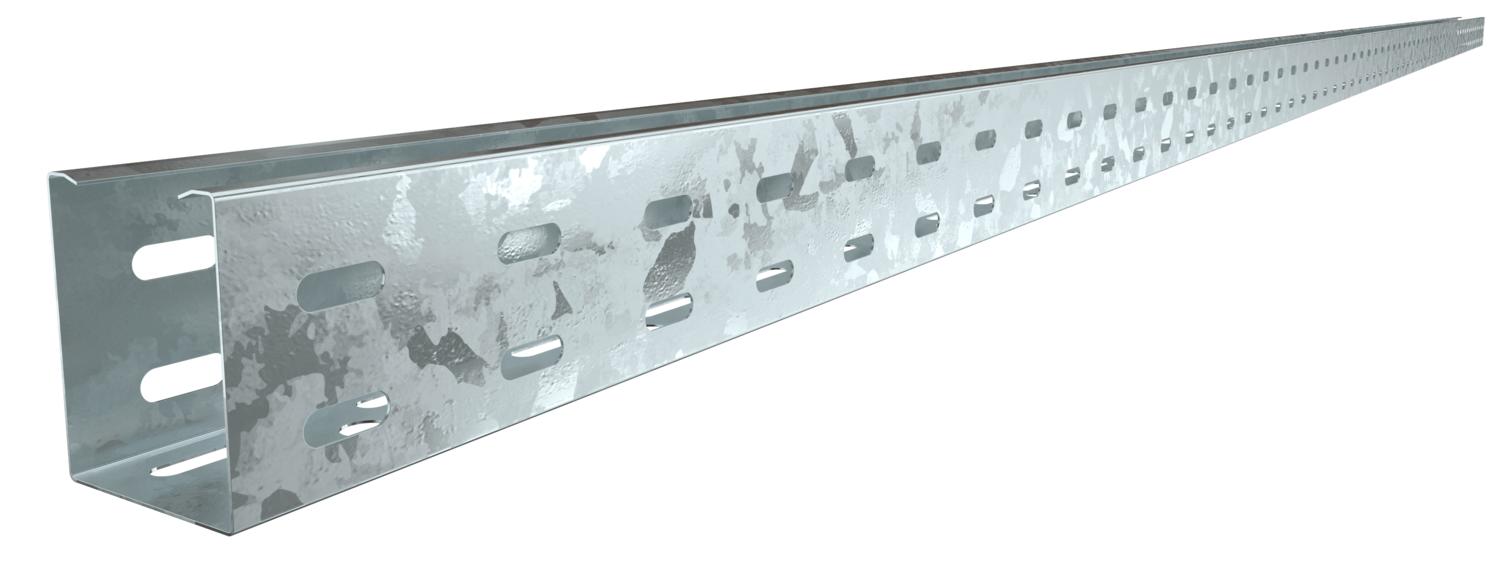

Cable tray RKS 60 FT perforated

Item no. / Types	6047602 / RKS 605 FT

Length	3000 mm

Width	50 mm

Plate thickness	0.75 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

RKS 60 = Rational cable tray system with 60 mm side height (unbeaded base plate).
Matching cover with turn buckle: Type AZDMD 50

Technical data

Base perforation	7 x 32
Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	2,679 kg CO₂e / 1 Meter
Dimension	60x50x3000
Dimension	60x50
Dimension L	3000 mm
Height	60 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,75 mm

Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	2 kN/m
Support spacing 1.5 m	0,8 kN/m
Support spacing 2.0 m	0,5 kN/m
Support spacing 2.5 m	0,35 kN/m
Support spacing 3.0 m	0,15 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	30 cm²
Usable cross-section	3000 mm²
Wide-span version	no
Width	50 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
RKS 605 FT	3000 mm	50 mm	0.75 mm	no	Steel	Hot-dip galvanised	6047602	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
90° bend 60 FT	RB 90 605 FT	7124438	piece	1 piece
Cover with turn buckle DD	AZDMD 50 DD	6080154	m	3 m
Add-on tee 60 FT	RAA 605 FT	7120468	piece	1 piece
