Cable tray SKS 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 110 = heavy-duty cable tray system with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	12,674 kg CO₂e / 1 Meter

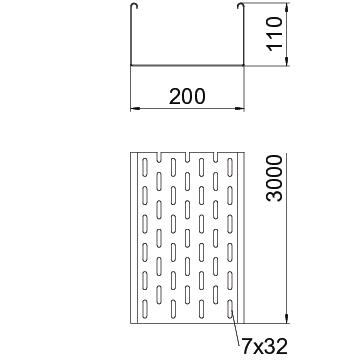

Dimension	110x200x3000
Dimension	110 x 200
Dimension B	200 mm
Height	4 in
Height	110 mm
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	200 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,06 in
Plate thickness	1,5 mm

Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 110 straight connector
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	218 cm²
Usable cross-section	21800 mm²
Wide-span version	no
Width	8 in
Width	200 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 110 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6061109	m	3 m
SKS 120 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6061206	m	3 m
SKS 130 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6061303	m	3 m
SKS 140 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6061400	m	3 m
SKS 150 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6061508	m	3 m
SKS 155 FS	3000 mm	550 mm	1.5 mm	no	Steel	Strip galvanized	6061559	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece
Joint plate FS	SSLB 200 FS	7070213	piece	20 piece
45° bend 110 FS	RB 45 120 FS	6036302	piece	1 piece
90° bend 110 FS	RB 90 120 FS	6036804	piece	1 piece
Bend, angle-adjustable, 110 FS	RB W 120 FS	6037304	piece	1 piece
Add-on tee 110 FS	RAA 120 FS	6042155	piece	1 piece
T piece 110 FS	RT 120 FS	6038304	piece	1 piece
Cross-over 110 FS	RK 120 FS	7027353	piece	1 piece
Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
45° bend 110 FS	RB 45 120 FS	7000650	piece	1 piece
90° bend 110 FS	RB 90 120 FS	7001916	piece	1 piece
