Cable tray SKS 110 FT SOMY 3000 | 300 | 1.5 | no | Steel | Hot-dip galvanised 85 µm
morepic-1 morepic-2

Cable tray SKS 110 FT SOMY

Item no. 7196025 | EAN 4012195872504

3000 mm
1.5 mm
no
Steel
Hot-dip galvanised 85 µm
Product description
Product description
SKS 110 = Heavy-duty cable tray system with 110 mm side height.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 14,751 kg CO₂e / 1 Meter

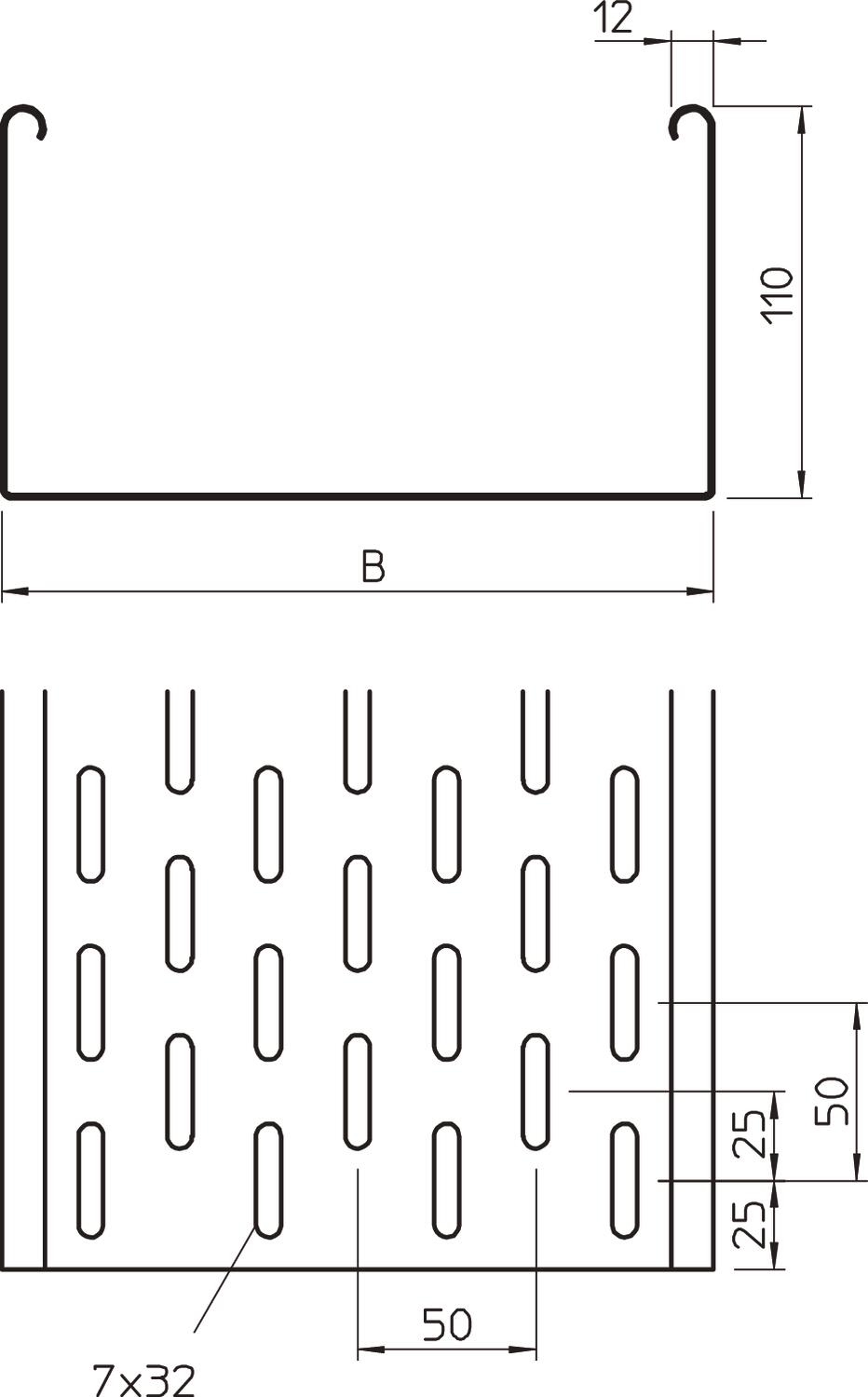

Dimension 110x300x3000
Dimension B 300 mm
Height 110 mm
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.5 m 3 kN/m
Support spacing 2.0 m 2,4 kN/m
Support spacing 3.0 m 1,2 kN/m
Support spacing 4.0 m 0,8 kN/m
Surface Hot-dip galvanised 85 µm
Type of connector, cable support system Screwed
Usable cross-section 328 cm²
Wide-span version no
Width 300 mm
With cover no

Technical data

Load diagram, cable tray, type SKS 110

Load diagram, cable tray, type SKS 110
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
SKS 110 FT SO 3000 mm 100 mm 1.5 mm no Steel Hot-dip galvanised 85 µm 7196008
180 m
SKS 120 FT SO 3000 mm 200 mm 1.5 mm no Steel Hot-dip galvanised 85 µm 7196011
108 m
SKS 140 FT SO 3000 mm 400 mm 1.5 mm no Steel Hot-dip galvanised 85 µm 7196016
420 m
SKS 150 FT SO 3000 mm 500 mm 1.5 mm no Steel Hot-dip galvanised 85 µm 7196019
36 m
SKS 130 FT SO 3000 mm 300 mm 1.5 mm no Steel Hot-dip galvanised 85 µm 7196025
72 m
SKS 160 FT SO 3000 mm 600 mm 1.5 mm no Steel Hot-dip galvanised 85 µm 7196026
360 m
