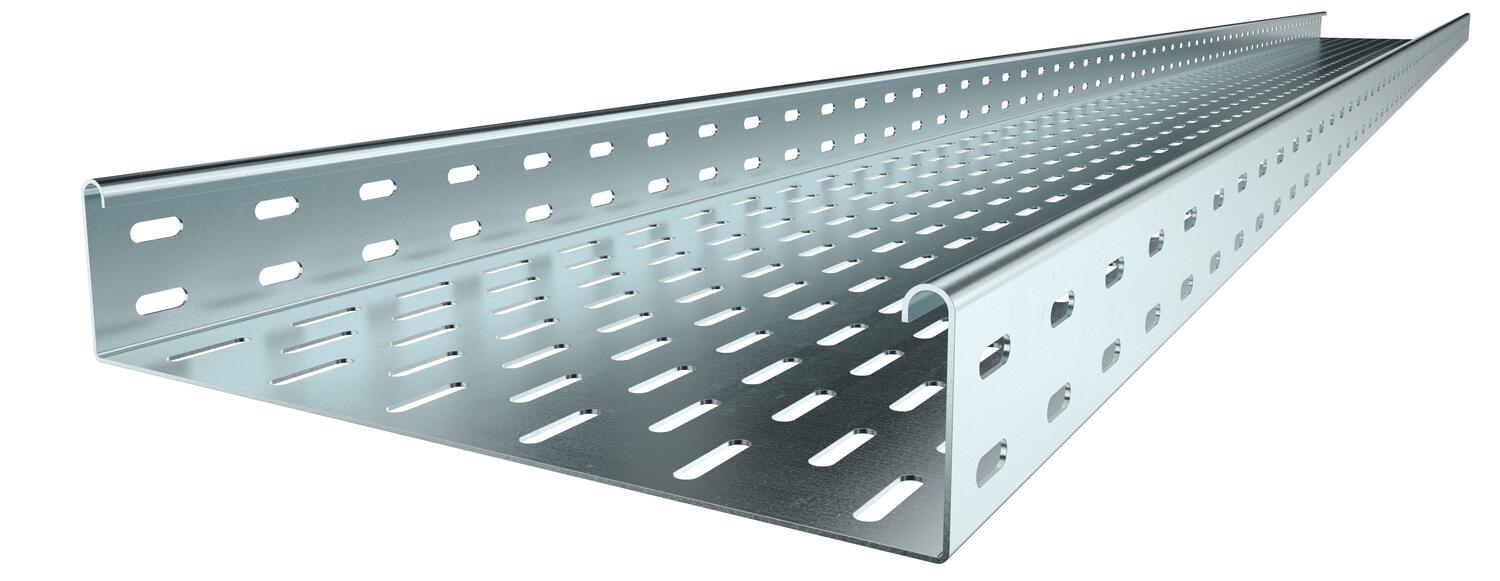

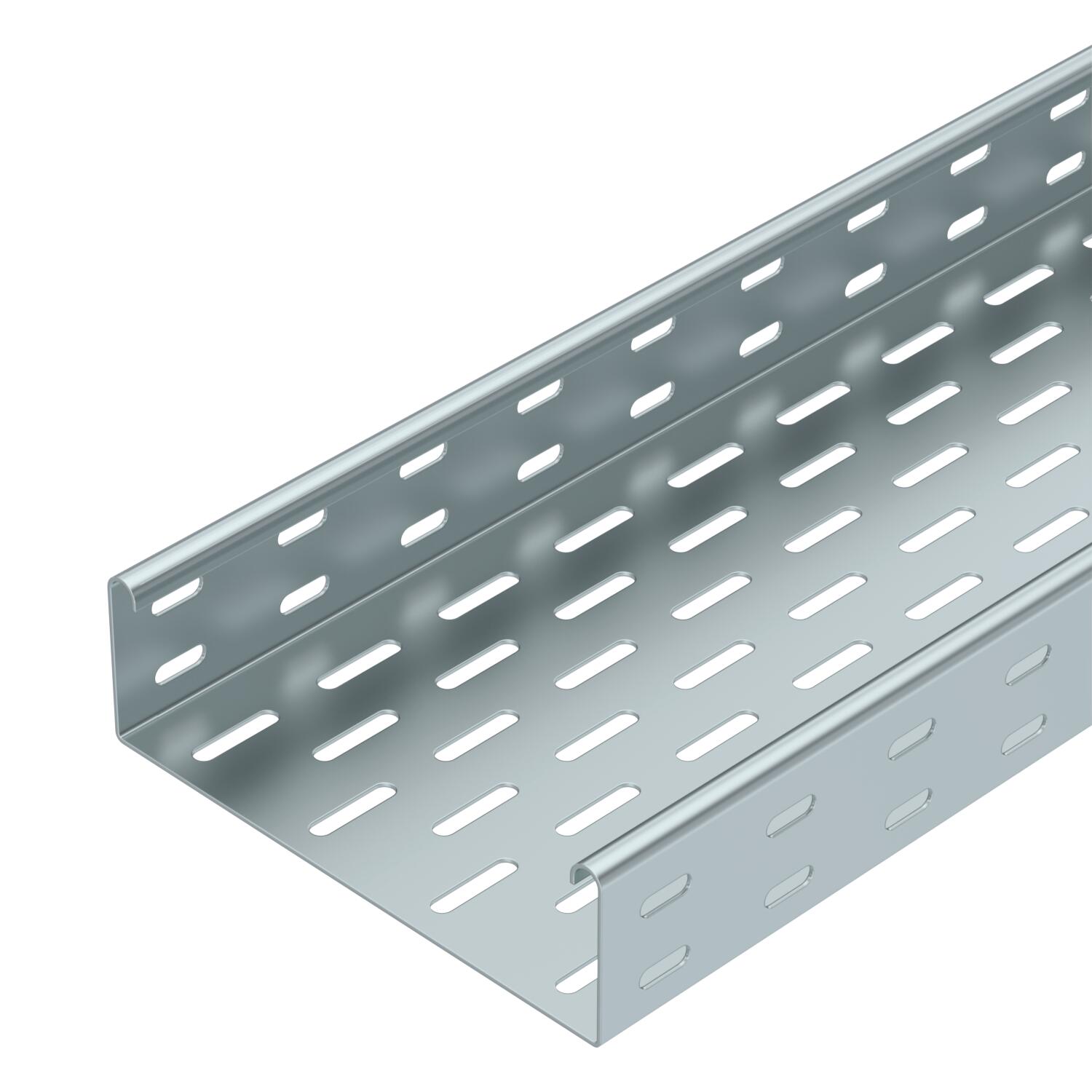

Cable tray SKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Base perforation	7 x 32
Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	9,559 kg CO₂e / 1 Meter

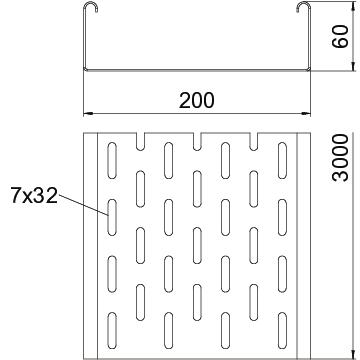

Dimension	60x200x3000
Dimension	60 x 200
Dimension B	200 mm
Fire protection	Maintenance of electrical function of standard support structure
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Maß W	200 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	1,5 mm
Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	Straight connector RLVL 60

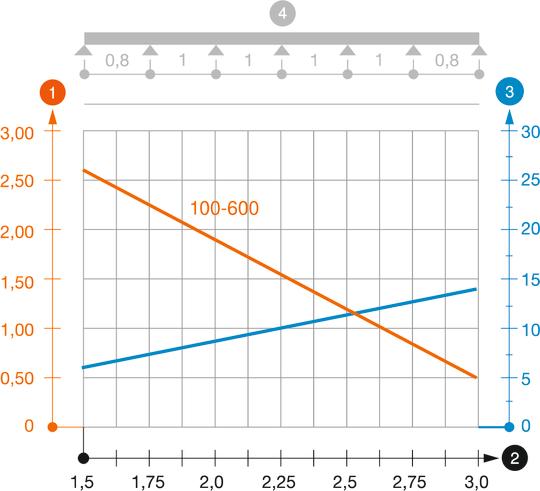

Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m
Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	11800 mm²
Usable cross-section	118 cm²
Wide-span version	no
Width	200 mm
Width	8 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 610 FS	3000 mm	100 mm	1.5 mm	yes	Steel	Strip galvanized	6056105	m	3 m
SKS 615 FS	3000 mm	150 mm	1.5 mm	yes	Steel	Strip galvanized	6056156	m	3 m
SKS 620 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6056202	m	3 m
SKS 630 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6056296	m	3 m
SKS 640 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6056407	m	3 m
SKS 650 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6056504	m	3 m
SKS 660 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6056601	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece

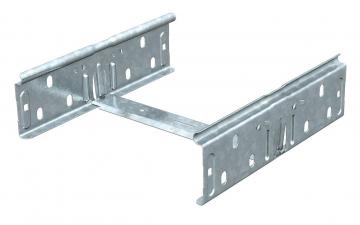

Straight connector set FS	RV 620 FS	6068170	piece	10 piece
Joint plate FS	SSLB 200 FS	7070213	piece	20 piece

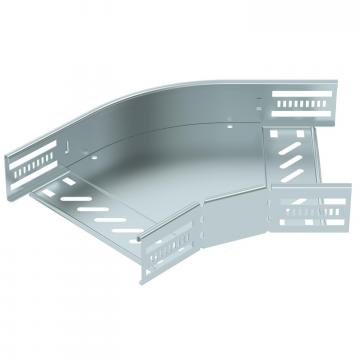

45° bend 60 FS	RB 45 620 FS	6036104	piece	1 piece
90° bend 60 FS	RB 90 620 FS	6036564	piece	1 piece
Bend, angle-adjustable, 60 FS	RB W 620 FS	6037104	piece	1 piece
Add-on tee 60 FS	RAA 620 FS	6042115	piece	1 piece
T piece 60 FS	RT 620 FS	6038104	piece	1 piece

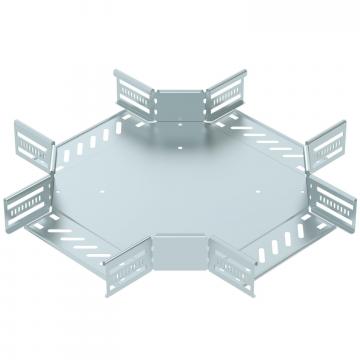

Cross-over 60 FS	RK 620 FS	7027313	piece	1 piece
Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
45° bend 60 FS	RB 45 620 FS	6043771	piece	1 piece

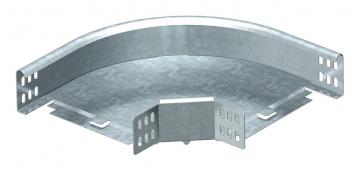

90° bend 60 FS	RB 90 620 FS	6043224	piece	1 piece
