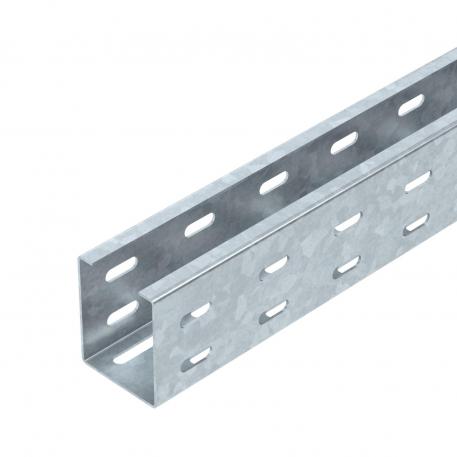

Cable tray SKS 605 FT

Item no. / Types	6056634 / SKS 605 FT

Length	3000 mm

Width	50 mm

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Matching cover with turn buckle: Type AZDMD 50

Technical data

Base perforation	11
Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	4,711 kg CO₂e / 1 Meter
Dimension	60x50x3000
Dimension	60x50
Dimension B	50 mm
Dimension H	60 mm
Height	60 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	4,3 kN/m
Support spacing 1.5 m	2,8 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,1 kN/m
Support spacing 3.0 m	0,7 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	30 cm²
Usable cross-section	3000 mm²
Wide-span version	no
Width	50 mm

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 605 FT	3000 mm	50 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056634	m	3 m
