Cable tray SKSU 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

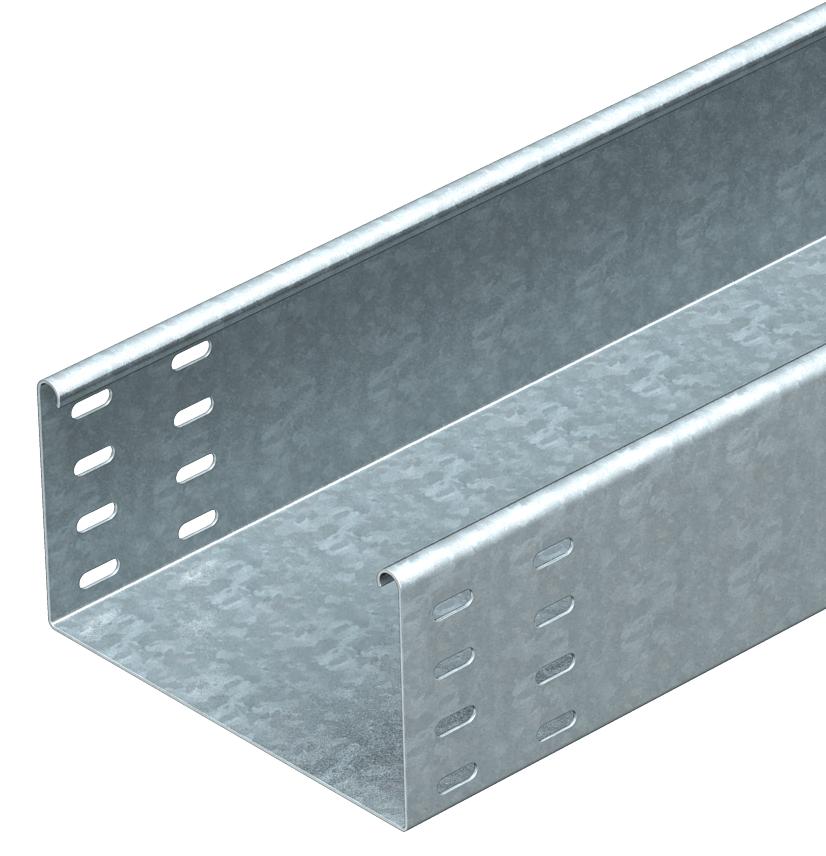

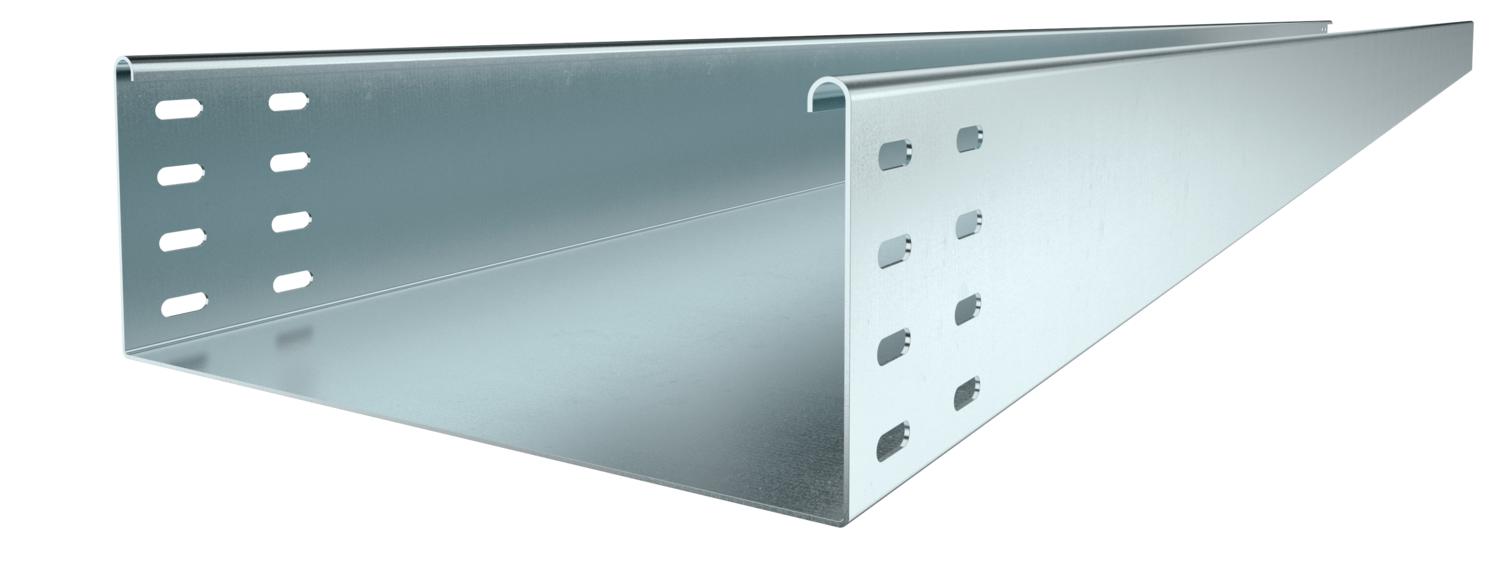

SKSU 110 = heavy-duty cable tray system, unperforated, with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	15,015 kg CO₂e / 1 Meter

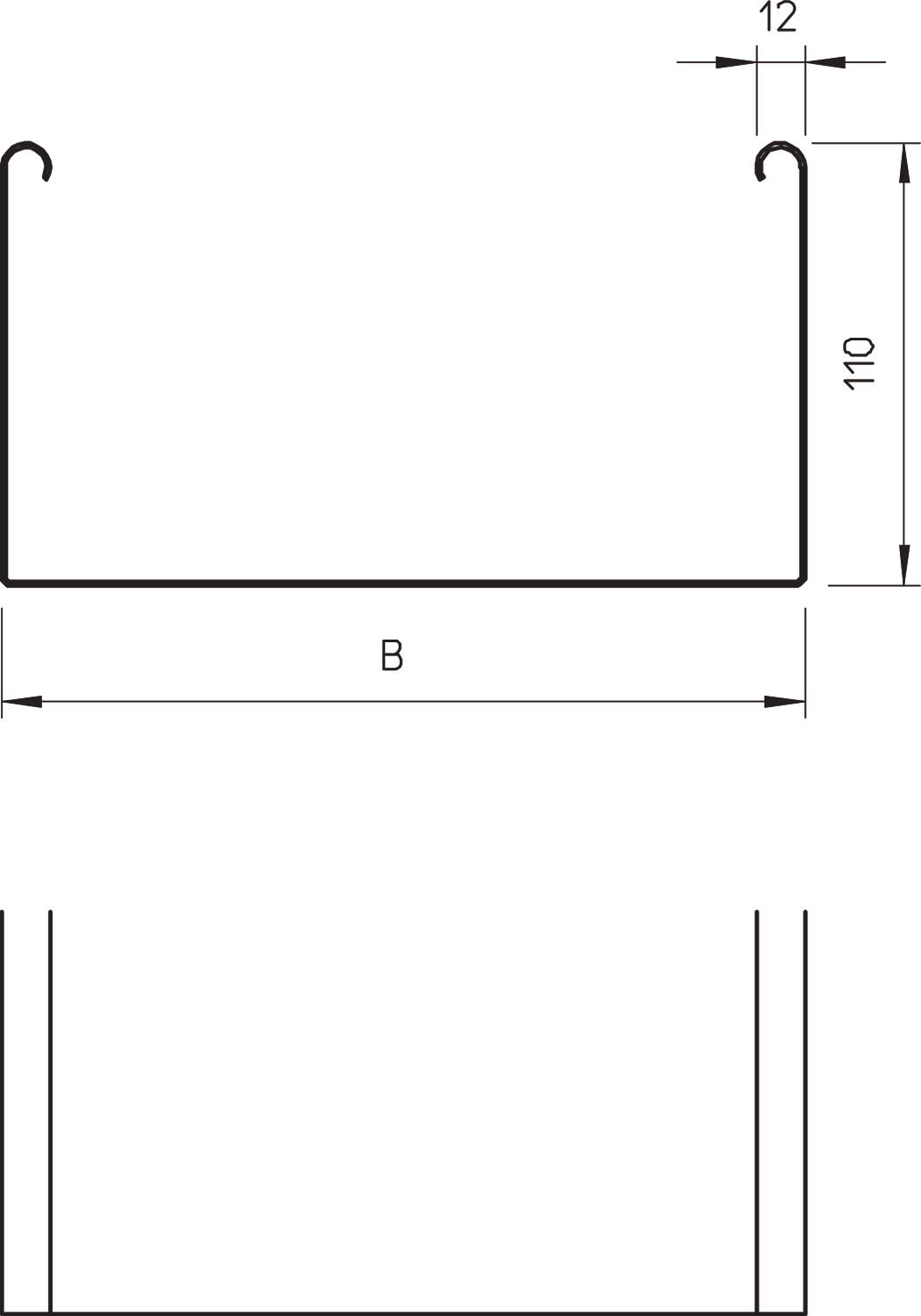

Dimension	110x100x3000
Dimension	110 x 100
Dimension B	100 mm
Height	110 mm
Height	4 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1,5 mm
Plate thickness	0,06 in

Rustproof steel, pickled	no
Side perforation	no

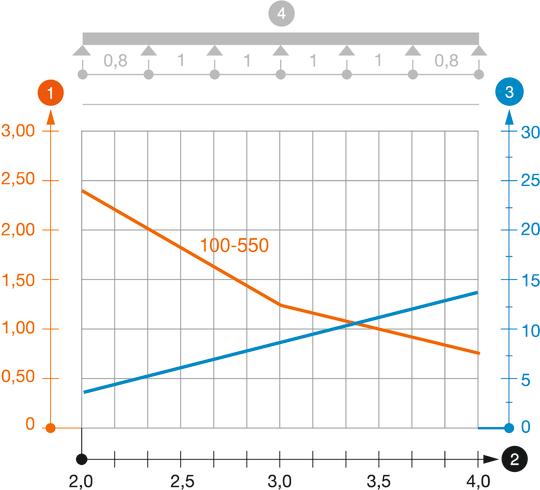

Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	108 cm²
Usable cross-section	10800 mm²
Wide-span version	no
Width	100 mm
Width	4 in
With cover	no

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKSU 110 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6063403	m	3 m
SKSU 120 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6063438	m	3 m
SKSU 130 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6063454	m	3 m
SKSU 140 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6063470	m	3 m
SKSU 150 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6063497	m	3 m
SKSU 155 FS	3000 mm	550 mm	1.5 mm	no	Steel	Strip galvanized	6063500	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece
Joint plate FS	SSLB 100 FS	7070205	piece	20 piece
45° bend 110 FS	RB 45 110 FS	6036300	piece	1 piece
90° bend 110 FS	RB 90 110 FS	6036800	piece	1 piece
Bend, angle-adjustable, 110 FS	RB W 110 FS	6037300	piece	1 piece
Add-on tee 110 FS	RAA 110 FS	6042151	piece	1 piece
T piece 110 FS	RT 110 FS	6038300	piece	1 piece
Cross-over 110 FS	RK 110 FS	7027351	piece	1 piece
Cover with turn buckle FS	DRL 100 FS	6052096	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
45° bend 110 FS	RB 45 110 FS	7000634	piece	1 piece
90° bend 110 FS	RB 90 110 FS	7001894	piece	1 piece
