Cable tray SKSU 110 FT SOMY
Item no. 7196012 | EAN 4012195738275
- Product description
-

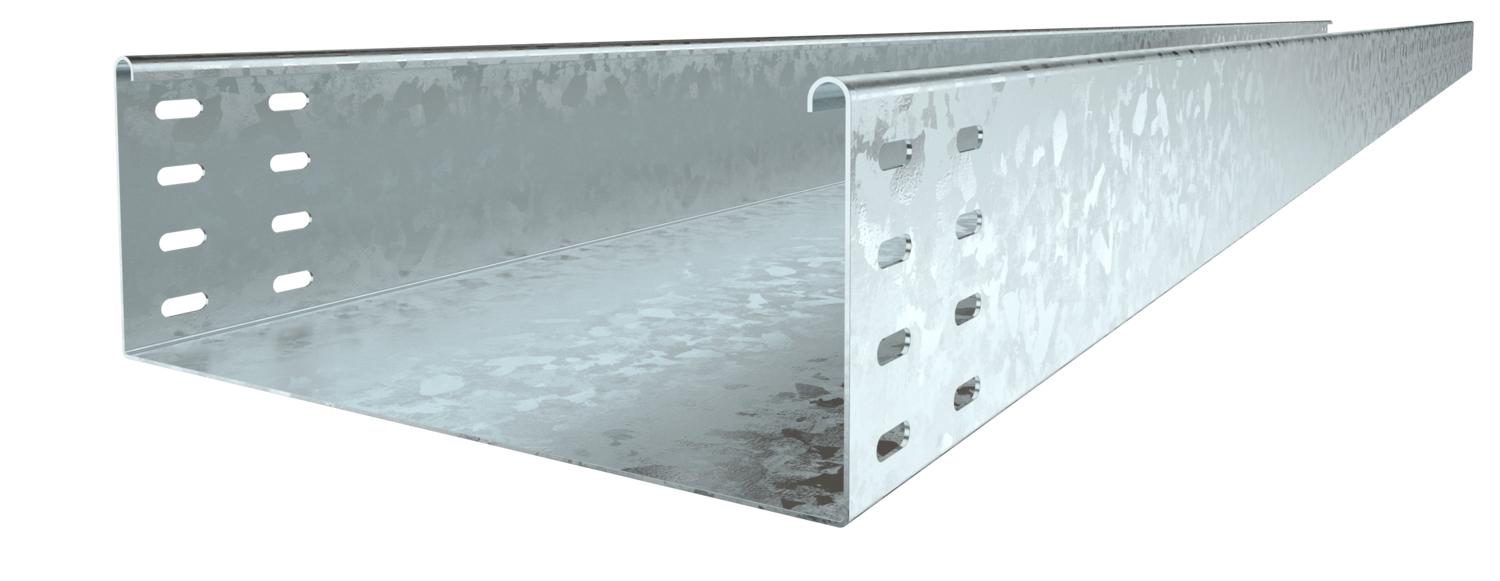

Product descriptionSKS 110 = heavy-duty cable tray system, unperforated, with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Colour zinc Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 12,331 kg CO₂e / 1 Meter Dimension 110x200x3000 Dimension B 200 mm Height 110 mm Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation no Support spacing 1.5 m 3 kN/m Support spacing 2.0 m 2,4 kN/m Support spacing 2.5 m 1,76 kN/m Support spacing 3.0 m 1,2 kN/m Support spacing 3.5 m 0,84 kN/m Support spacing 4.0 m 0,8 kN/m Surface Hot-dip galvanised 85 µm Type of connector, cable support system Screwed Usable cross-section 218 cm² Wide-span version no Width 200 mm With cover no Technical data
Load diagram, cable tray, type SKSU 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
- Downloads
-
Data sheet SKSU 120 FT SO / 7196012 , 0.30MB , pdfEU declaration of conformity SKSU 120 FT SO / 7196012 , 0.10MB , pdfUK Declaration of Conformity SKSU 120 FT SO / 7196012 , 0.09MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
