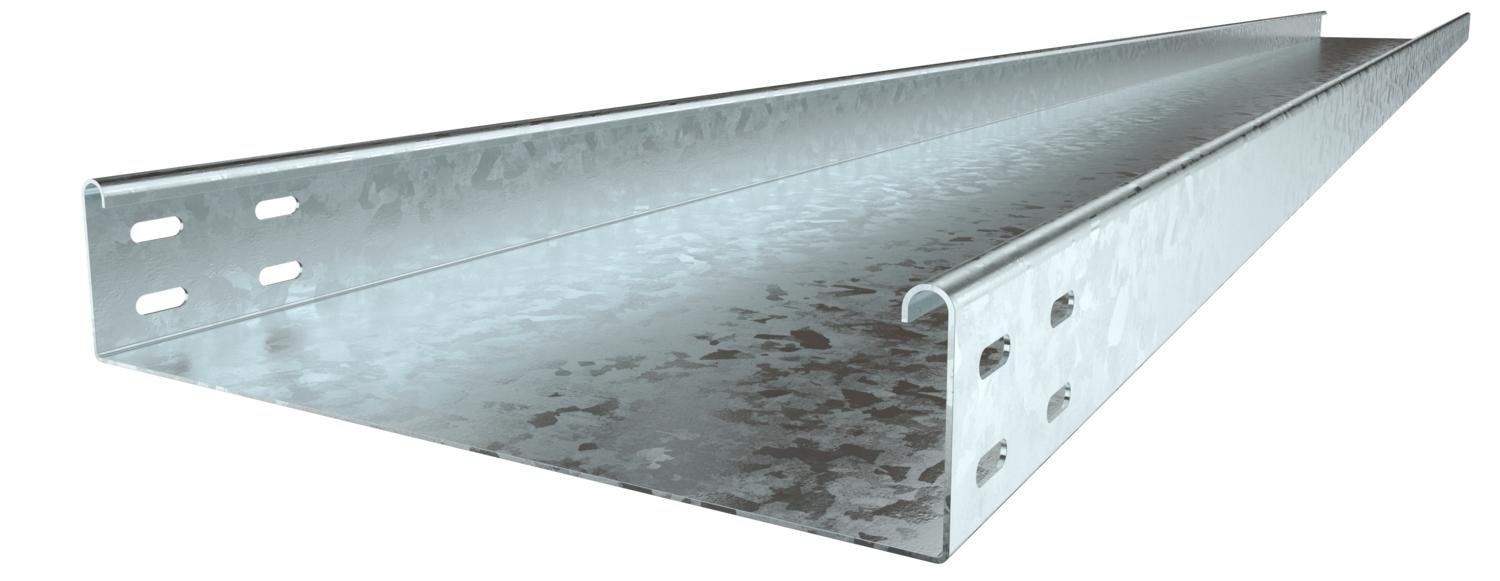

Cable tray SKSU 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

SKS 60 = heavy-duty cable tray system, unperforated, with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	6,526 kg CO₂e / 1 Meter
Dimension	60x100x3000
Dimension B	100 mm
Height	60 mm
Height	2 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	0,06 in

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.5 m	2,6 kN/m
Support spacing 2.0 m	1,9 kN/m
Support spacing 2.5 m	1,1 kN/m
Support spacing 3.0 m	0,55 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	5800 mm²
Usable cross-section	58 cm²
Wide-span version	no
Width	4 in
Width	100 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKSU 610 FT	3000 mm	100 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064307	m	3 m
SKSU 620 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064353	m	3 m
SKSU 630 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064409	m	3 m
SKSU 640 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064435	m	3 m
SKSU 650 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064515	m	3 m
SKSU 660 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064523	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
Joint plate DD	SSLB 100 DD	7070306	piece	20 piece
Cover with turn buckle FT	DRL 100 FT	6051340	m	3 m
45° bend 60 FT	RB 45 610 FT	6036130	piece	1 piece
90° bend 60 FT	RB 90 610 FT	6036590	piece	1 piece
Bend, angle-adjustable, 60 FT	RB W 610 FT	6037120	piece	1 piece
Add-on tee 60 FT	RAA 610 FT	6042211	piece	1 piece
T piece 60 FT	RT 610 FT	6038130	piece	1 piece
Cross-over 60 FT	RK 610 FT	7027411	piece	1 piece
Cover with turn buckle DD	DRL 100 DD	6052703	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
90° bend 60 FT	RB 90 610 FT	7125100	piece	1 piece
