Cable trunking, type LKM 60200 2000 | 200 | 64 | | Strip galvanized | Steel

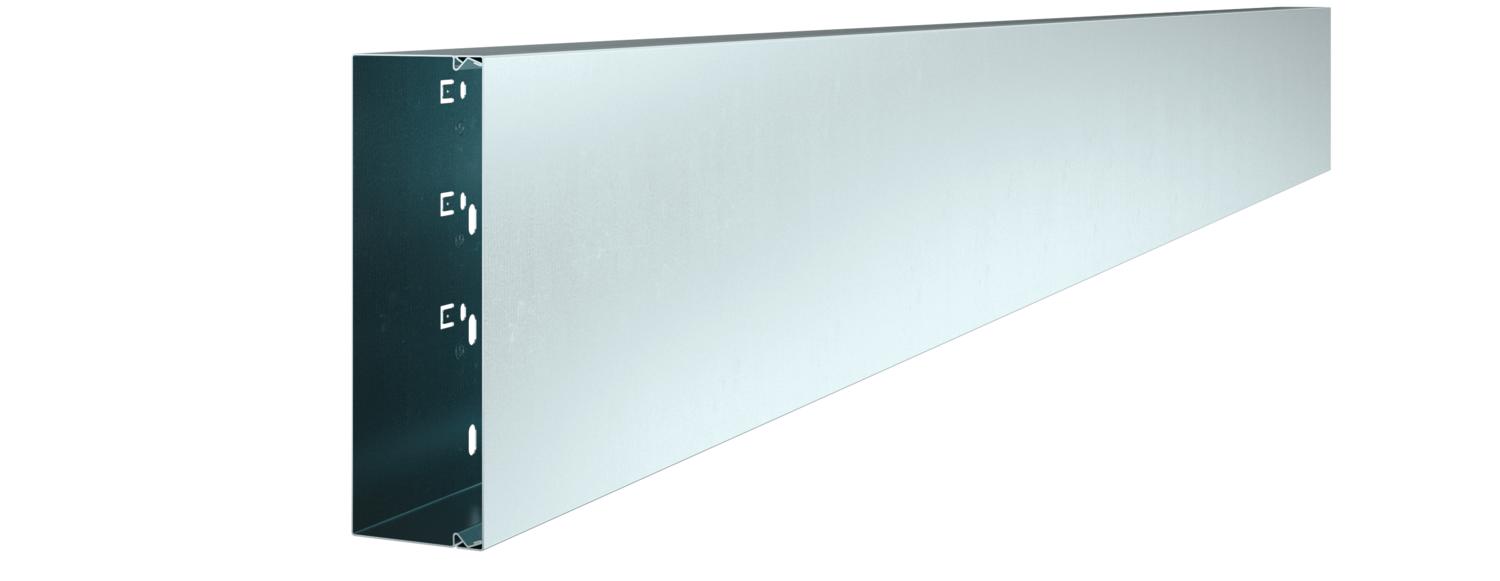

Cable trunking, type LKM 60200

Item no. 6247164 | EAN 4012196312252

Item no. / Types

Length	2000 mm

Width	200 mm

Height	64 mm

Surface

Material	Steel

Product description

Product description

Trunking cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.
The base contains loop perforation allowing the attachment of the partition.
For ceiling mounting, always use the trunking clamp

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no

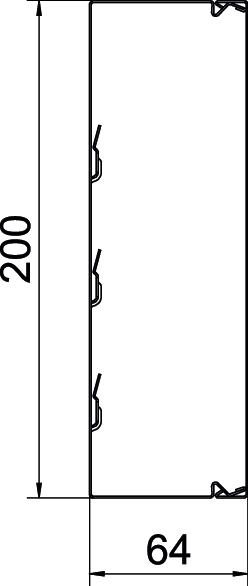

Dimension	60x200x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	64 mm
Length	2000 mm
Maintain electrical functions	no
Material	Steel

Number of insertable partitions	3
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Usable cross-section	11254 mm²
Version, cable trunking cover	Loose
Width	200 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM60200FS	2000 mm	200 mm	64 mm	Strip galvanized	Steel	6247164	m	8 m
LKM60200RW	2000 mm	200 mm	64 mm	Strip galvanized / plastic coated	Steel	6248667	m	8 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV60	LKM SV60	6247466	piece	10 piece
Edge protection ring KSR 60200, for LKM cable trunking type 60200	LKM KSR60200	6249758	piece	5 piece

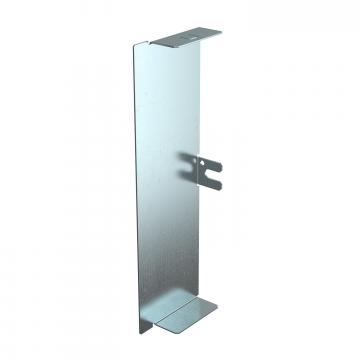

End piece, for cable trunking type LKM 60200	LKM E60200FS	6248322	piece	10 piece

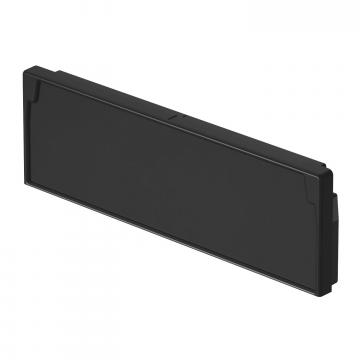

End piece, for cable trunking type LKM 60200	LKM EK60200	6249788	piece	5 piece

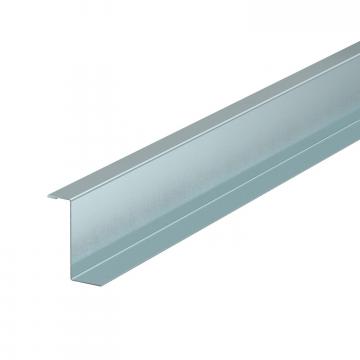

Partition LKM/TWS45	LKM TWS45	6249871	m	2 m

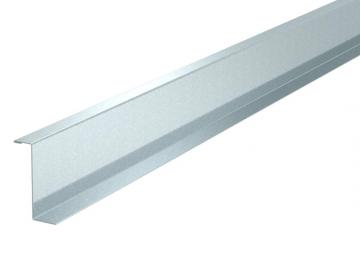

Partition LKM TWS55	LKM TWS55	6249876	m	32 m

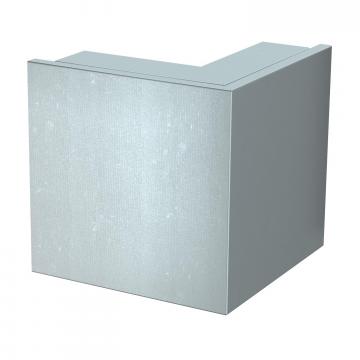

External corner, for cable trunking type LKM 60200	LKM A60200FS	6248098	piece	1 piece
Flat angle, for cable trunking type LKM 60200	LKM F60200FS	6248020	piece	1 piece

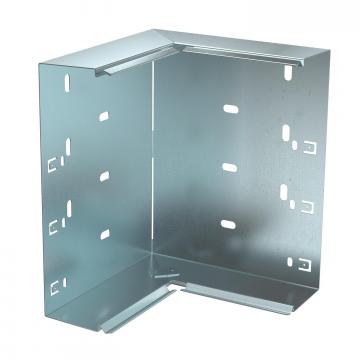

Internal corner, for cable trunking type LKM 60200	LKM I60200FS	6248160	piece	1 piece
T piece, for cable trunking type LKM 60200	LKM T60200FS	6248225	piece	1 piece
LKM cable bracket, duct width 200 mm	LKM Z200	6249981	piece	10 piece

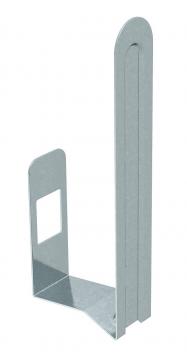

Trunking clamp, LKM, trunking width 150 and 200 mm	LKM K140	6249888	piece	20 piece
