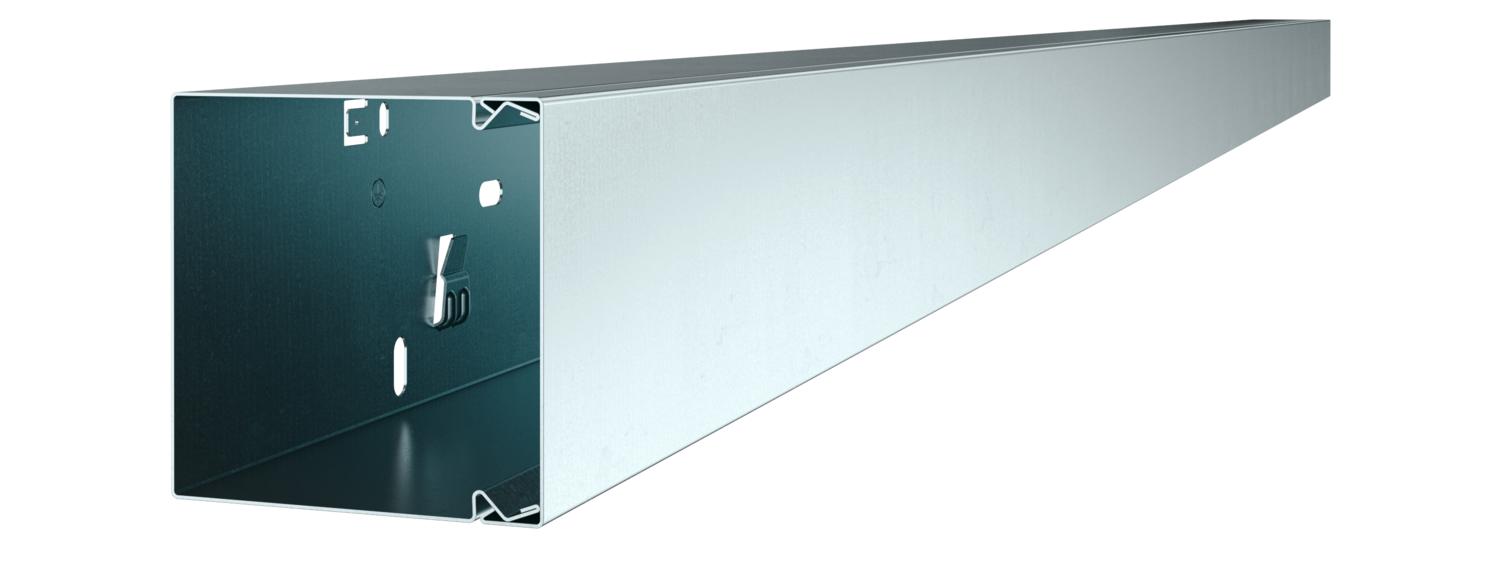

Cable trunking, type LKM 80080

Item no. / Types

Length	2000 mm

Width	80 mm

Height	80 mm

Surface

Material	Steel

Product description

Product description

Trunking cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
CO₂ Footprint (GWP) Cradle-to-Gate	6,122 kg CO₂e / 1 Meter

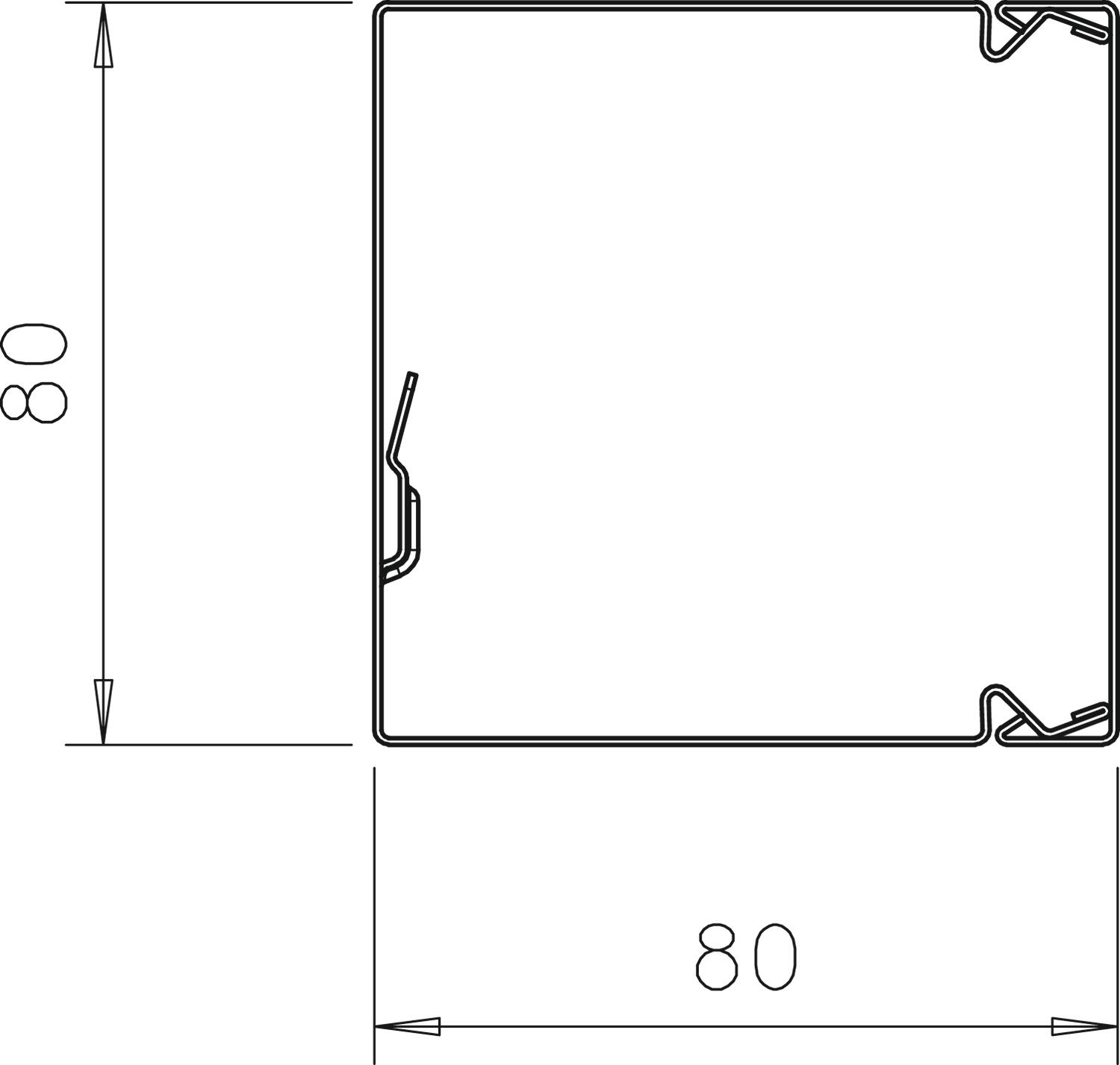

Dimension	80x80x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	80 mm
Length	2000 mm
Maintain electrical functions	no

Material	Steel
Number of insertable partitions	1
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Usable cross-section	5840 mm²
Version, cable trunking cover	Loose
Width	80 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM80080FS	2000 mm	80 mm	80 mm	Strip galvanized	Steel	6247194	m	12 m
LKM80080RW	2000 mm	80 mm	80 mm	Strip galvanized / plastic coated	Steel	6248694	m	8 m

Accessories

Products	Types	Item no.	Quantity	SSU

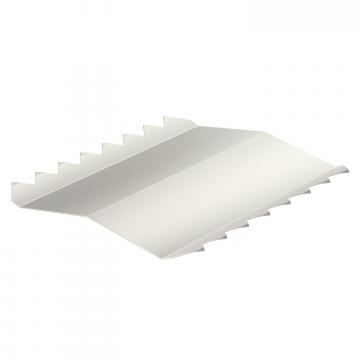

Joint connector LKM SV80	LKM SV80	6247472	piece	10 piece

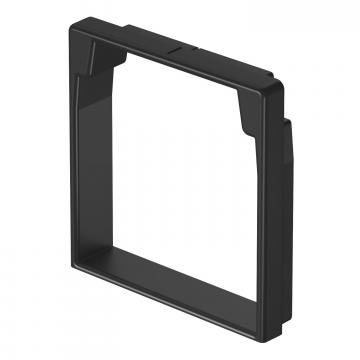

Edge protection ring KSR 80080, for LKM cable trunking type 80080	LKM KSR80080	6249762	piece	5 piece

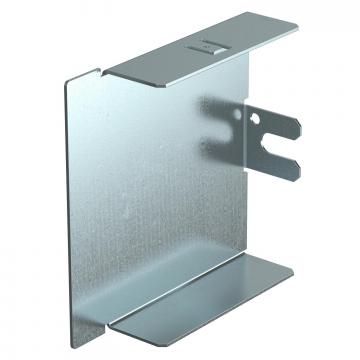

End piece, for cable trunking type LKM 80080	LKM E80080FS	6248344	piece	1 piece

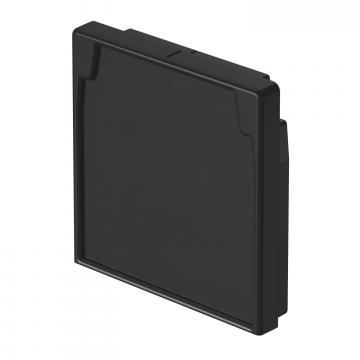

End piece, for cable trunking type LKM 80080	LKM EK80080	6249792	piece	5 piece

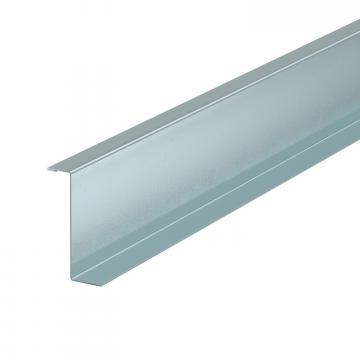

Partition LKM TWS75	LKM TWS75	6249880	m	2 m

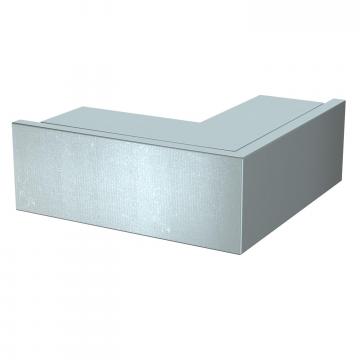

External corner, for cable trunking type LKM 80080	LKM A80080FS	6248332	piece	1 piece

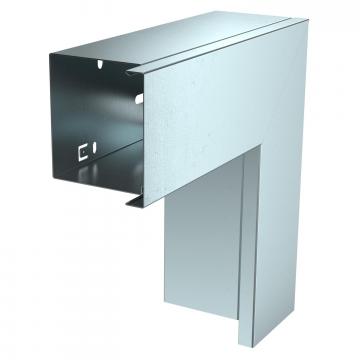

Flat angle, for cable trunking type LKM 80080	LKM F80080FS	6248328	piece	1 piece

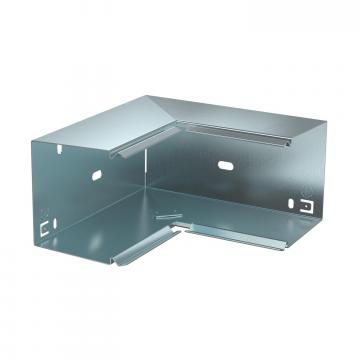

Internal corner, for cable trunking type LKM 80080	LKM I80080FS	6248336	piece	1 piece
T piece, for cable trunking type LKM 80080	LKM T80080FS	6248340	piece	1 piece

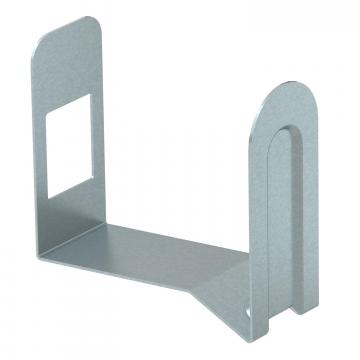

Trunking clamp, LKM, trunking width 80 mm	LKM K65	6249882	piece	20 piece
