Calyx

Item no. 6288732 | EAN 4012196089949

Product description
Product description

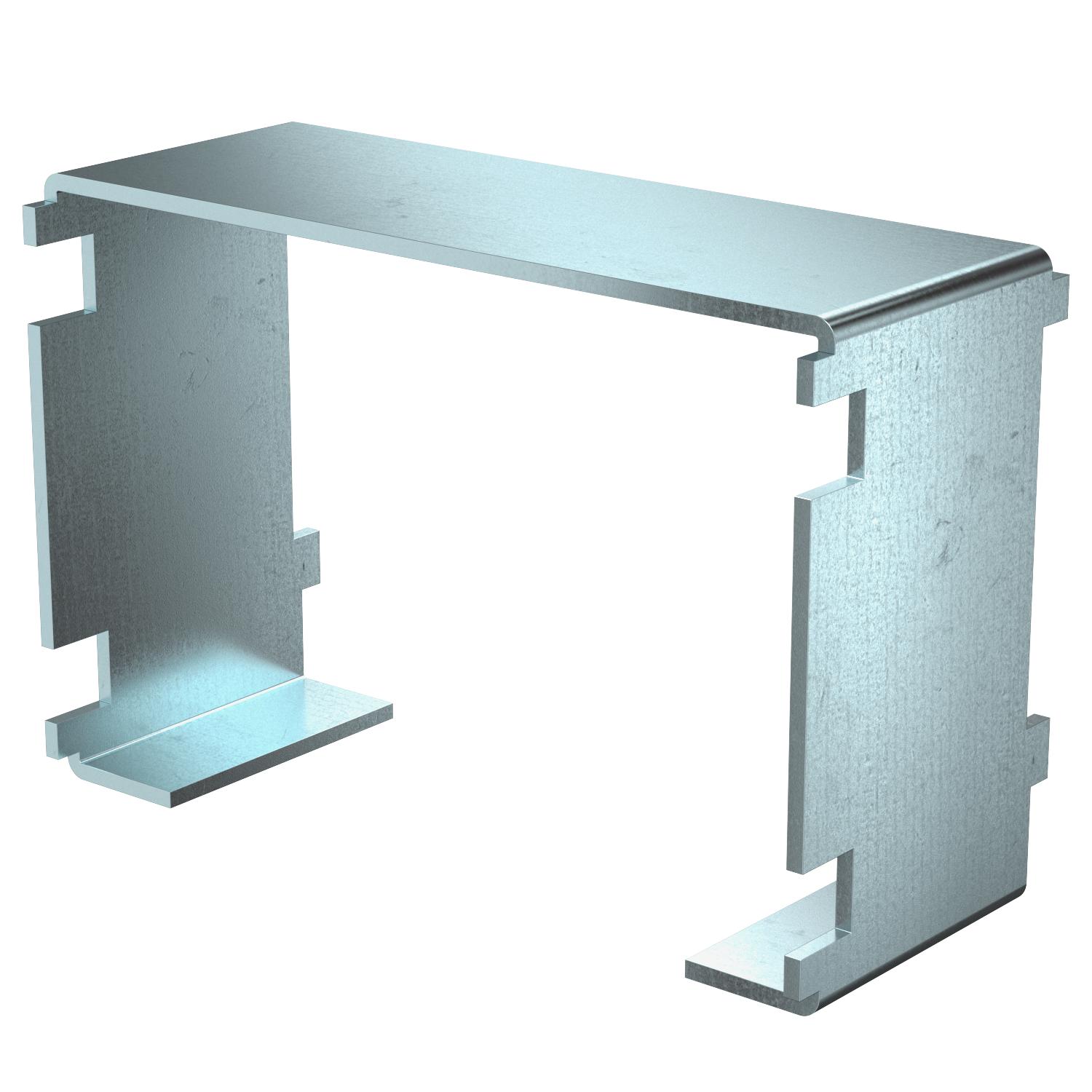

Saw core for easy creation of saw cuts on sheel steel device installation trunking of the Rapid 80 GS series. Type suitable for nominal size.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

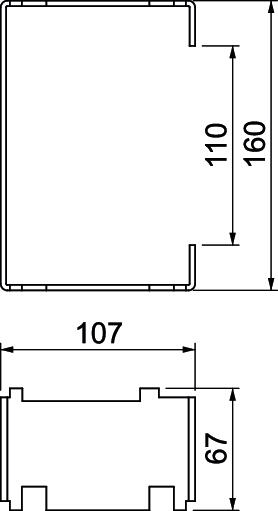

Dimension 67x107x160
Height 67 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Surface galvanised
Symmetrical yes
Width 107 mm
All types

All types

Types Item no. Quantity SSU
SK GS-S70110 6288732
10 piece
