- Product description
-
Product description

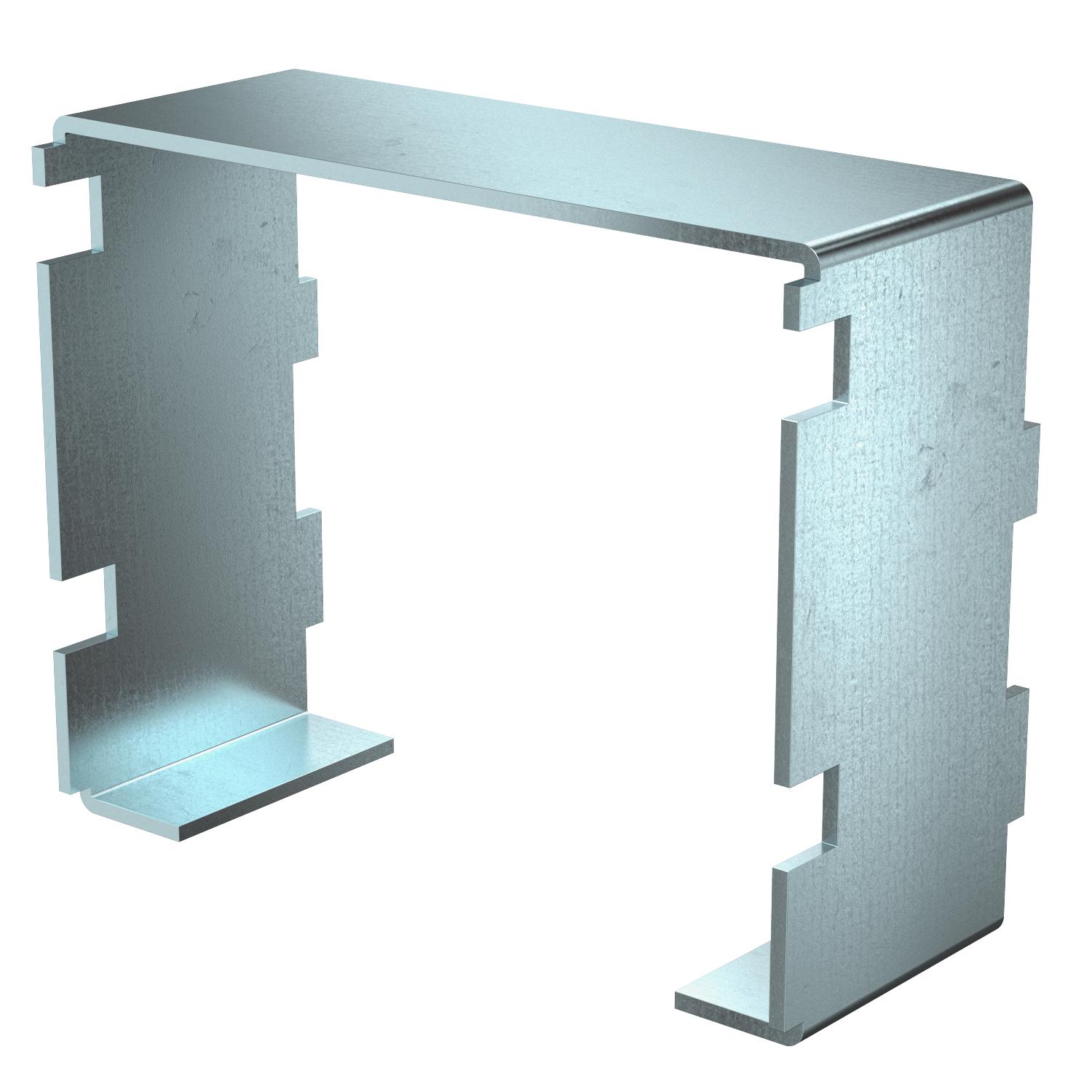

Saw core for easy creation of saw cuts on sheel steel device installation trunking of the Rapid 80 GS series. Type suitable for nominal size.
- Technical data
-
Technical data

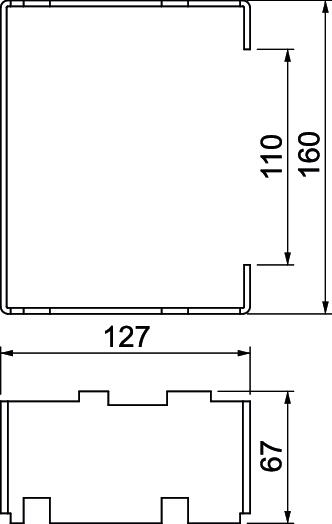

Dimension 67x127x160 Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Surface galvanised Symmetrical no Dimensions
Height 67 mm Width 127 mm - All types
- Downloads
-
Data sheet SK GS-A70130 / 6288736 , 0.19MB , pdfDeclaration of conformity SK GS-A70130 / 6288736 , 0.17MB , pdfUK Declaration of Conformity SK GS-A70130 / 6288736 , 0.14MB , pdf
