Calyx

Item no. 6288740 | EAN 4012196090068

Product description

Product description

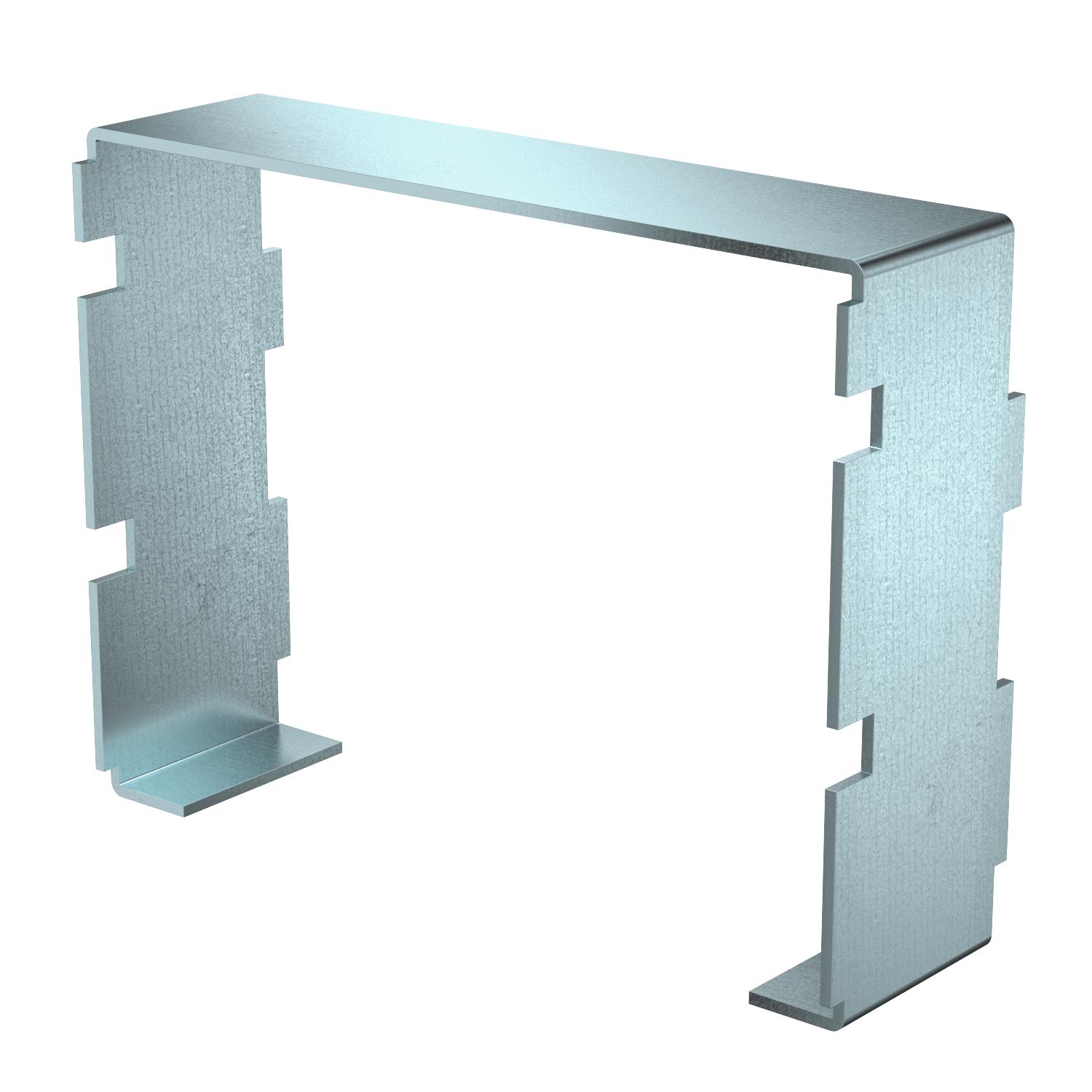

Saw core for easy creation of saw cuts on sheel steel device installation trunking of the Rapid 80 GS series. Type suitable for nominal size.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Dimension 67x167x220
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Surface galvanised
Symmetrical no

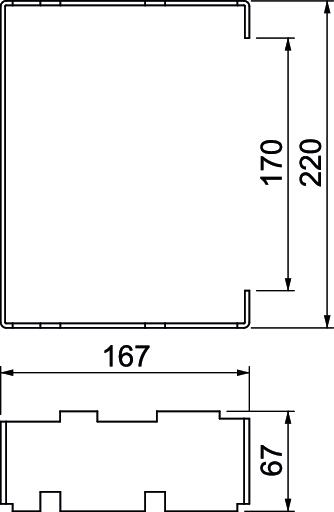

Dimensions

Height 67 mm
Width 167 mm
All types

All types

Types Item no. Quantity SSU
SK GS-A70170 6288740
1 piece
Downloads

Download

Download
Download

Declaration of conformity SK GS-A70170 / 6288740 , 0.17MB , pdf
Download
Declaration of conformity SK GS-A70170 / 6288740 , 0.22MB , pdf
Download
UK Declaration of Conformity SK GS-A70170 / 6288740 , 0.14MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
