Calyx

Item no. 6288746 | EAN 4012196090181

Product description
Product description

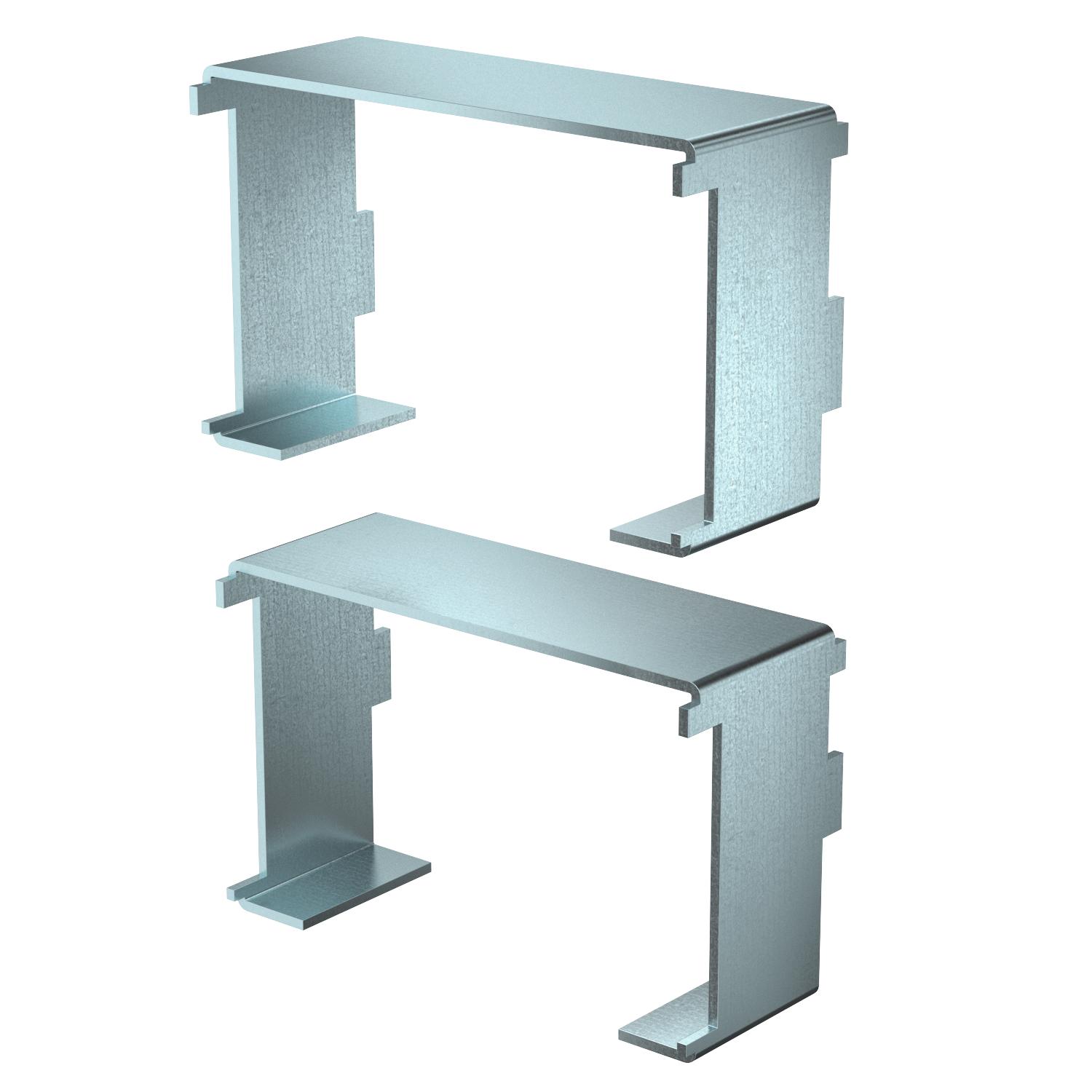

Saw core for easy creation of saw cuts on sheel steel device installation trunking of the Rapid 80 GS series. Type suitable for nominal size.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

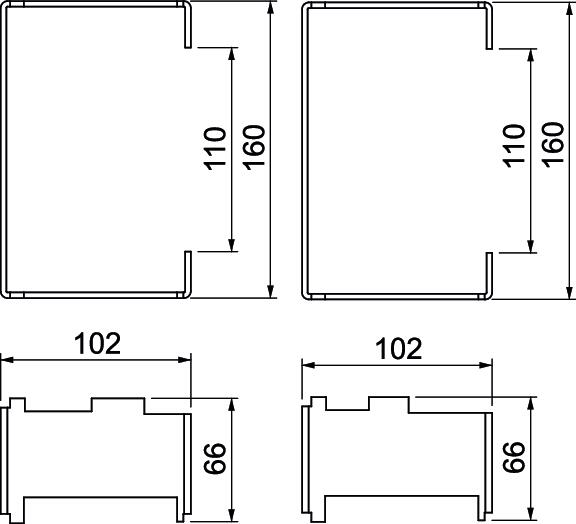

Dimension 67x207x160
Height 67 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Surface galvanised
Symmetrical no
Width 207 mm
All types

All types

Types Item no. Quantity SSU
SK GS-D70210 6288746
10 piece
Downloads

Download

Download

EU declaration of conformity SK GS-D70210 / 6288746 , 0.10MB , pdf
Download
UK Declaration of Conformity SK GS-D70210 / 6288746 , 0.14MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
