- Product description
-
Product description

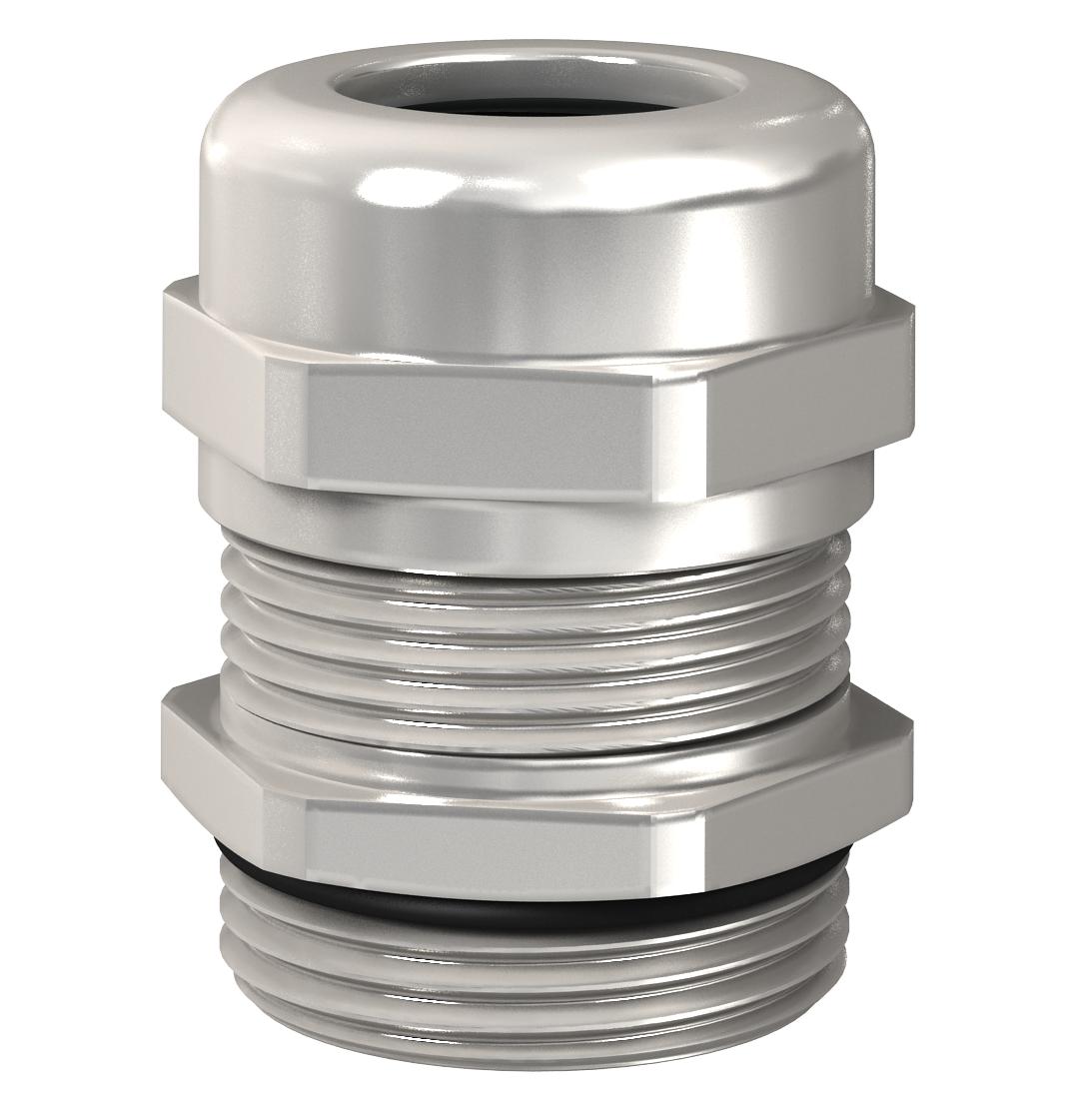

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.
* Prices according to DEL notation.
- Technical data
-
Technical data

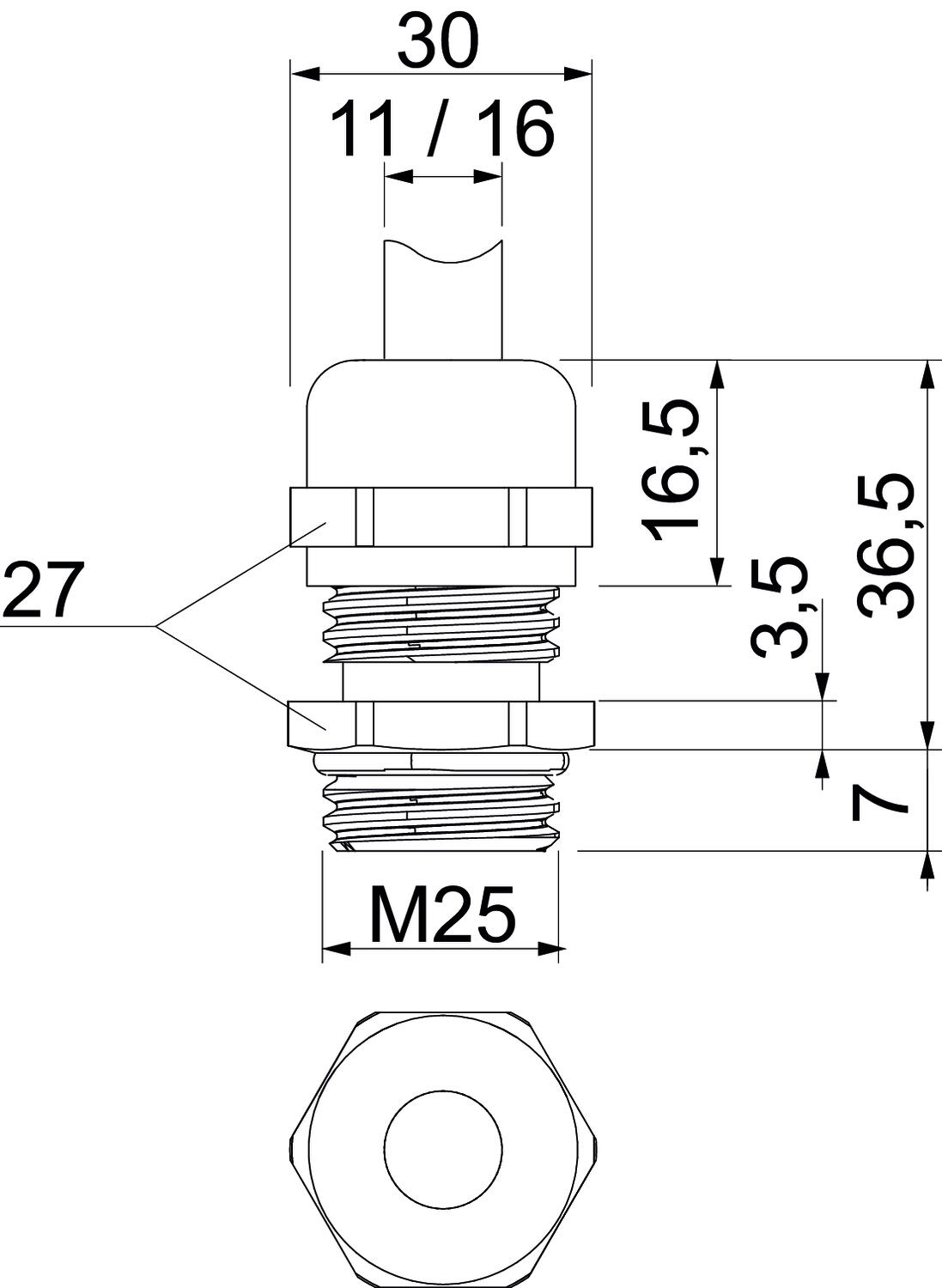

Bend protection no Dimension M25 Dimension E 30 mm Dimension L max. 36,5 mm Dimension L1 7 mm Dimension L2 3,5 mm Dimension L3 16,5 mm Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 16 mm Sealing area D, min. 11 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M25 x 1,5 Thread length 7 mm Thread type Metric Type of seal Sealing ring Unstable torque 6,7 Nm Version for Straight WAF 27 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM25 EMV / 2086215 , 0.24MB , pdfDeclaration of conformity V-TEC VM25 EMV / 2086215 , 0.10MB , pdf
