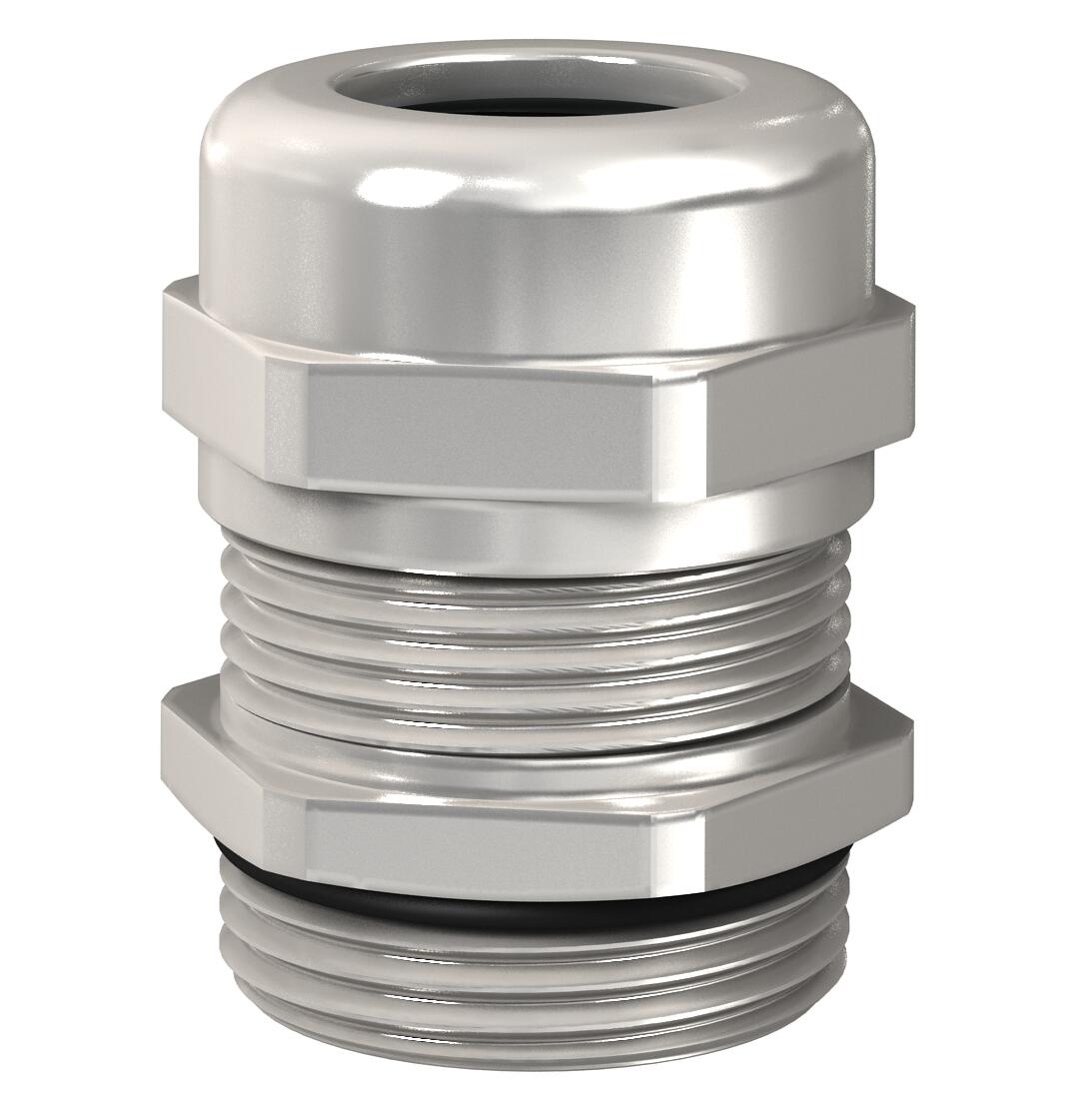

Cap nut cable gland, EMC spring contact, metric thread, nickel-plated

Item no. 2086169 | EAN 4012195655480

no
Product description
Product description
With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no

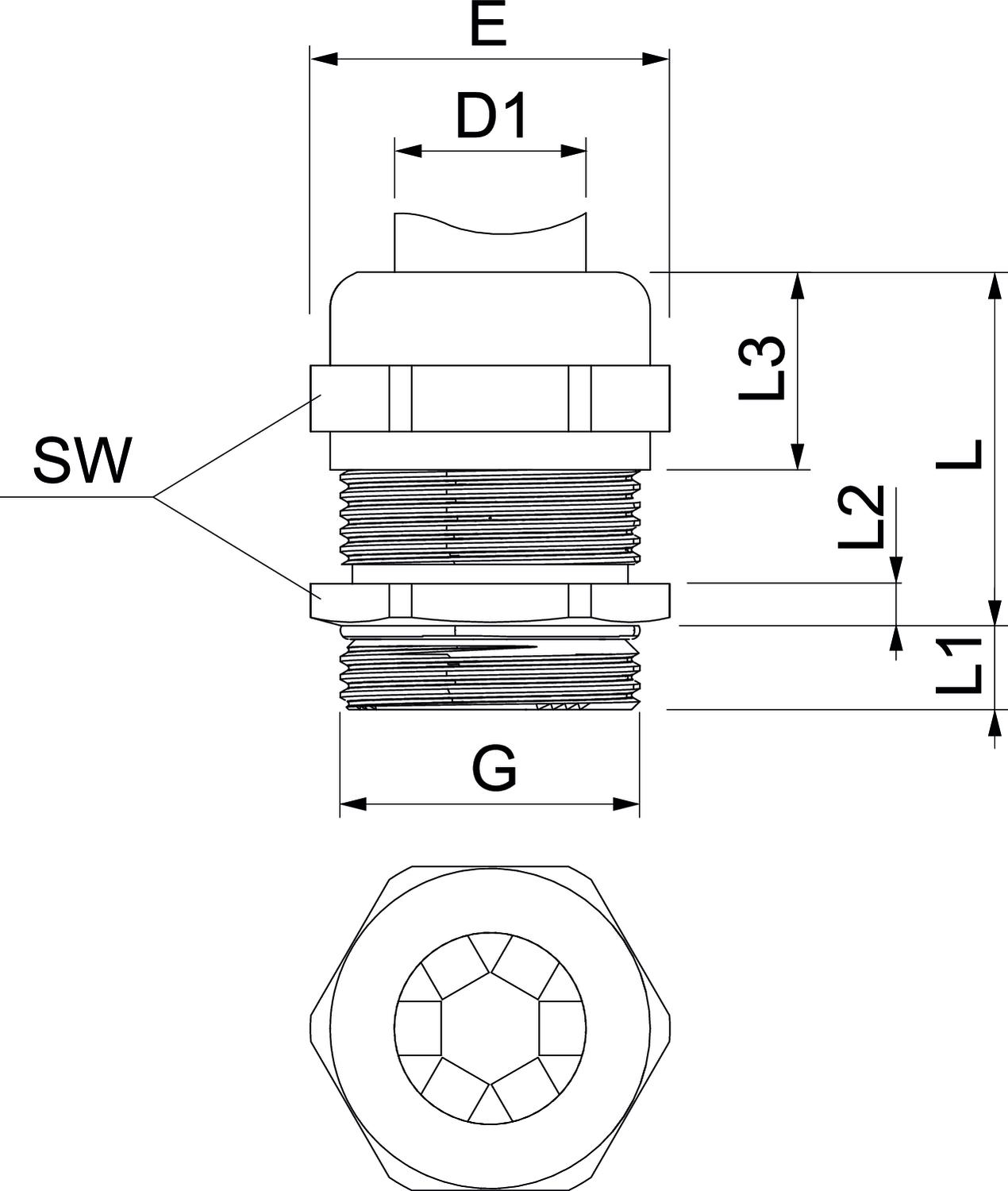

Dimension M20
Dimension D1 9 mm
Dimension E 24 mm
Dimension G M20x1,5 mm
Dimension L 27,5 mm
Dimension L max. 27,5 mm
Dimension L1 6 mm
Dimension L2 3,5 mm
Dimension L3 13,3 mm
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Height 33,5 mm
Impact-resistant no
Length 22 mm
Material Brass
Permitted temperature range, max. 100 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 13 mm
Sealing area D, min. 9 mm
Sealing insert, multiple no
Strain relief option yes
Surface Nickel-plated
Thread M20 x 1,5
Thread length 6 mm
Type of seal Sealing ring
Version for Straight
WAF 22
Width 24 mm
With locknut no
All types

All types

Types Thread Sealing insert, multiple Item no. Quantity SSU
V-TEC VM16 EMV-K M16 x 1,5 no 2086165
50 piece
V-TEC VM20 EMV-K M20 x 1,5 no 2086169
25 piece
V-TEC VM25 EMV-K M25 x 1,5 no 2086173
25 piece
V-TEC VM32 EMV-K M32 x 1,5 no 2086177
20 piece
V-TEC VM40 EMV-K M40 x 1,5 no 2086181
5 piece
V-TEC VM50 EMV-K M50 x 1,5 no 2086185
5 piece
V-TEC VM63 EMV-K M63 x 1,5 no 2086189
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

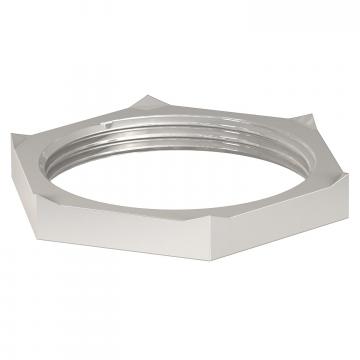

Locknut, metric thread with cutting teeth Locknut, metric thread with cutting teeth 169 MSS M20 2091713
50 piece
Downloads

Download

EU declaration of conformity V-TEC VM20 EMV-K / 2086169 , 0.10MB , pdf
Download
EU declaration of conformity EU declaration of conformity ,

V-TEC VM20 EMV-K / 2086169
