- Product description
-

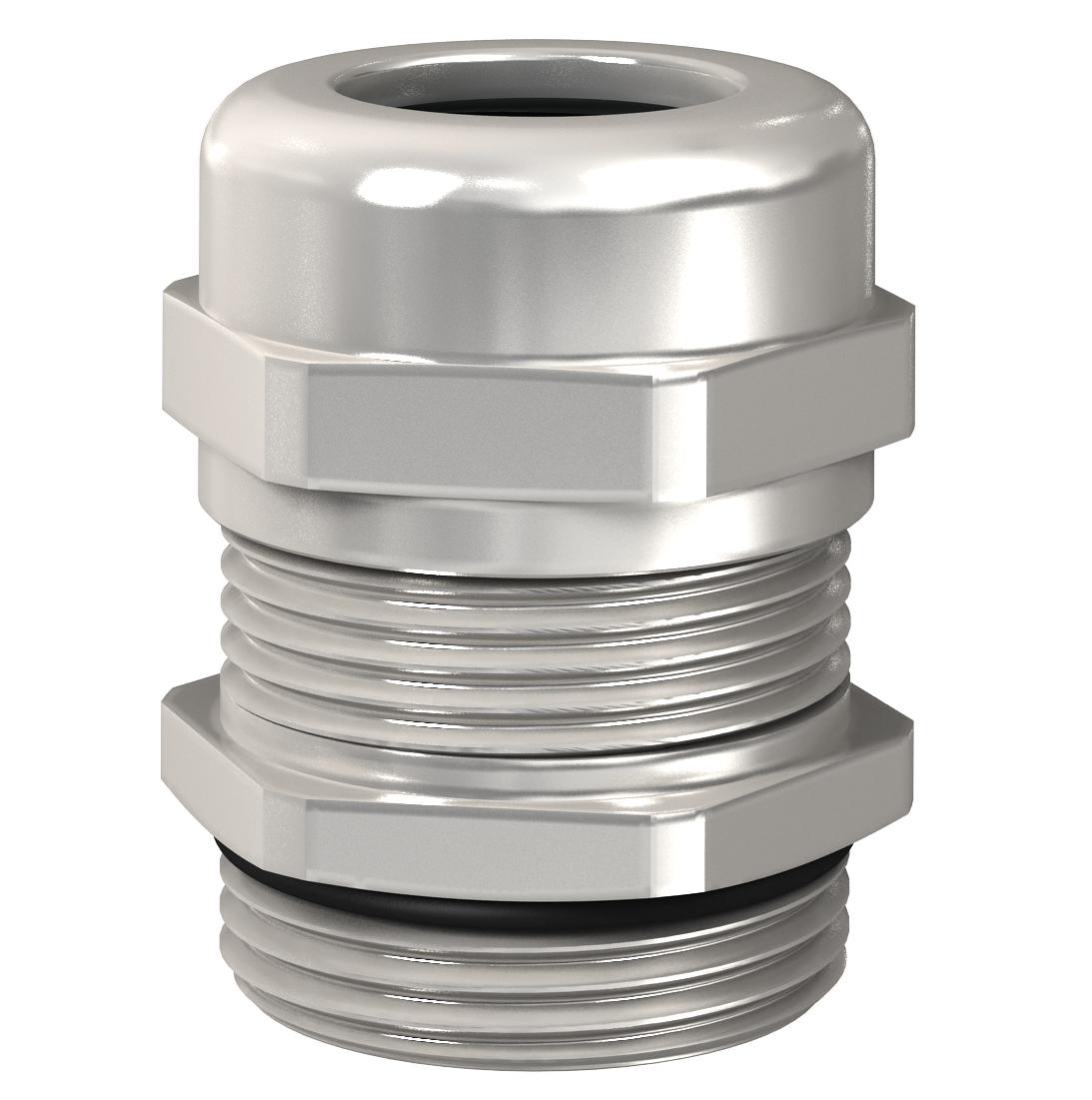

Product descriptionWith metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.
* Prices according to DEL notation.
- Technical data
-
Technical data

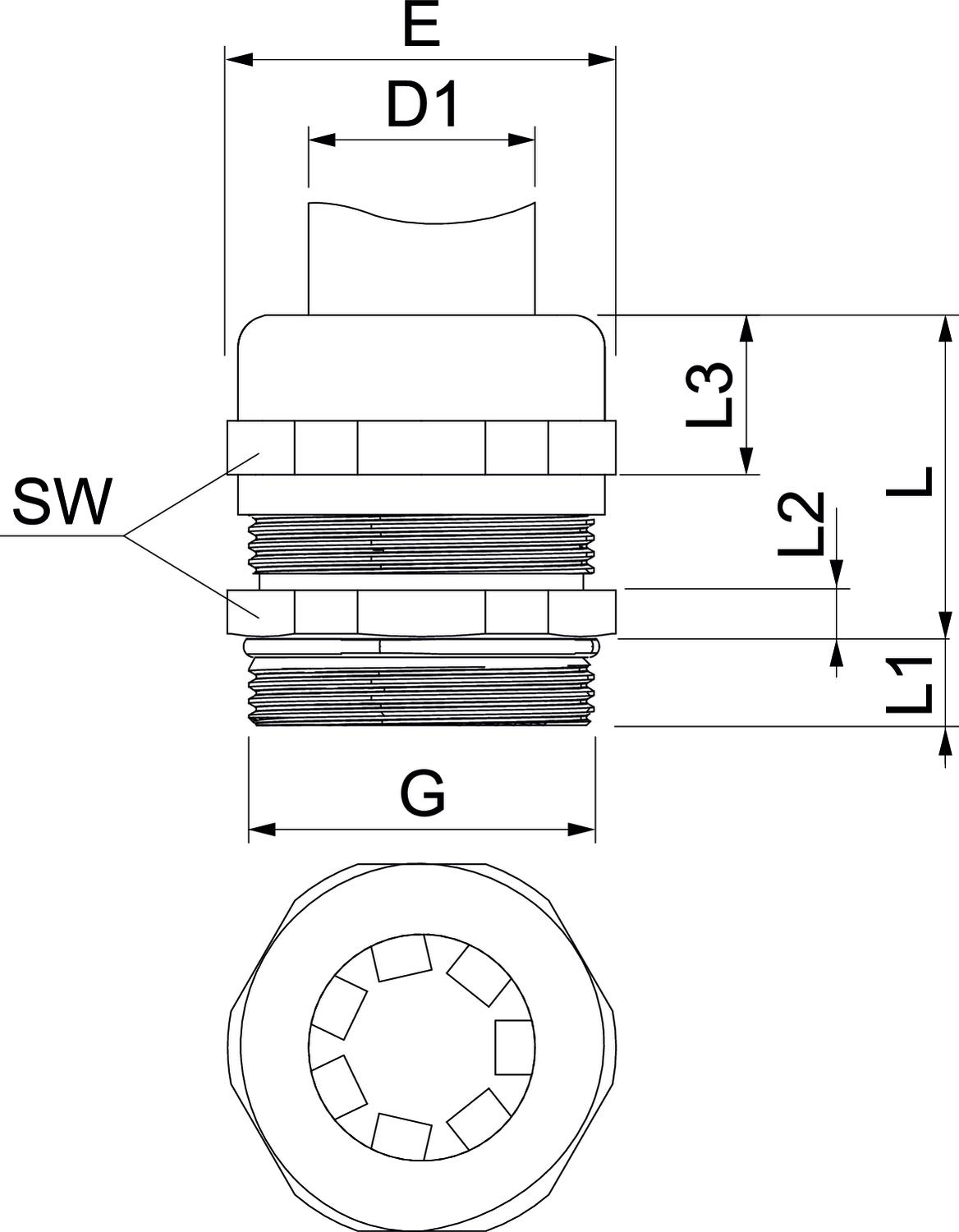

Bend protection no Dimension M32 Dimension D1 14 mm Dimension E 36 mm Dimension G M32x1,5 mm Dimension L 30 mm Dimension L max. 30 mm Dimension L1 8 mm Dimension L2 4,5 mm Dimension L3 16,5 mm Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Height 38 mm Impact-resistant no Length 34 mm Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 21 mm Sealing area D, min. 14 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M32 x 1,5 Thread length 8 mm Type of seal Sealing ring Version for Straight WAF 34 Width 38 mm With locknut no - All types
- Downloads
-
Data sheet V-TEC VM32 EMV-K / 2086177 , 0.24MB , pdfEU declaration of conformity V-TEC VM32 EMV-K / 2086177 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity V-TEC VM32 EMV-K / 2086177 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM32 EMV-K / 2086177 , 0.12MB , pdf
