Product description

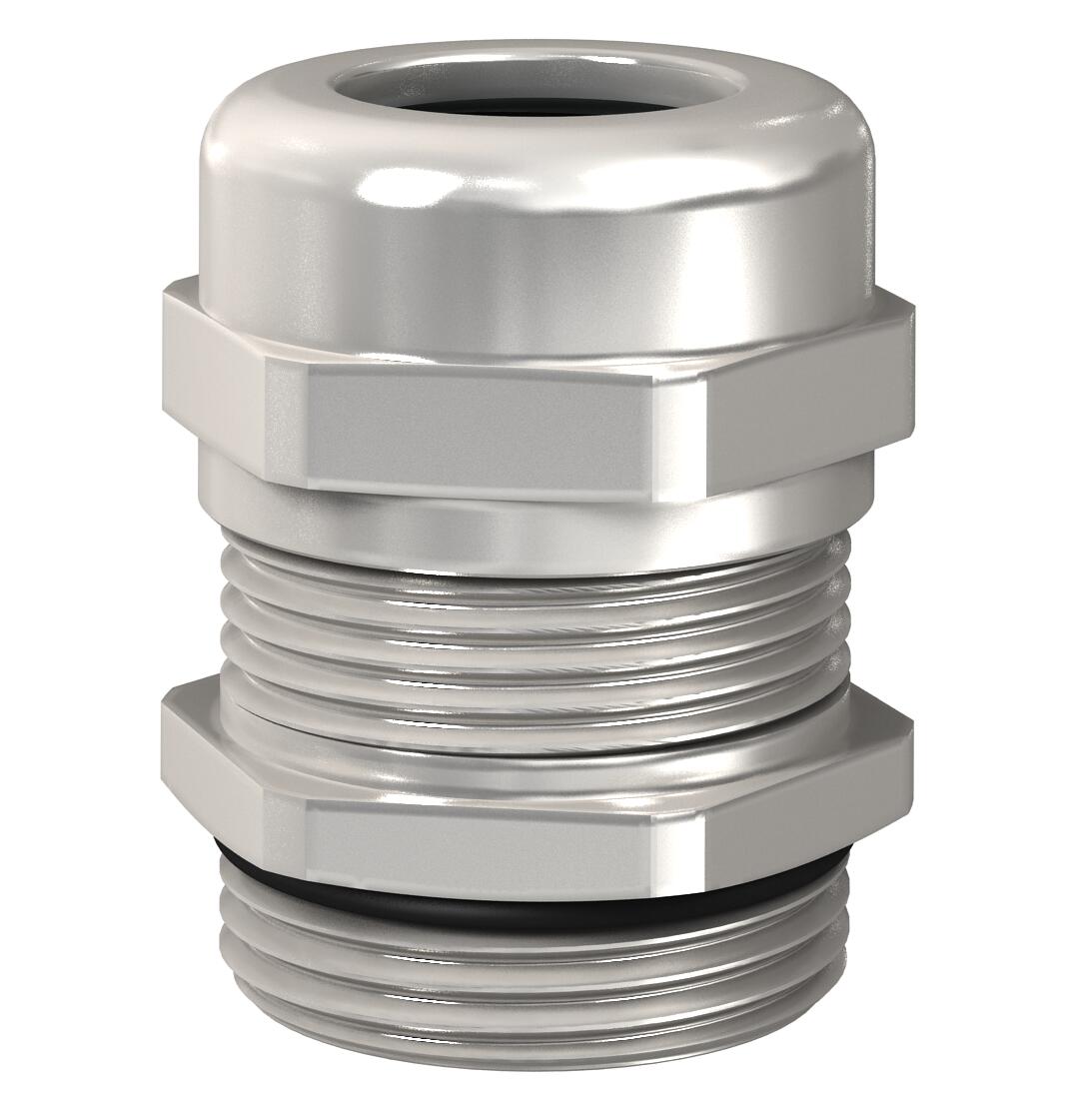

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Bend protection no Dimension M40 Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 27 mm Sealing area D, min. 19 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M40 x 1,5 Thread length 8 mm Type of seal Sealing ring Version for Straight WAF 43 With locknut no Dimensions

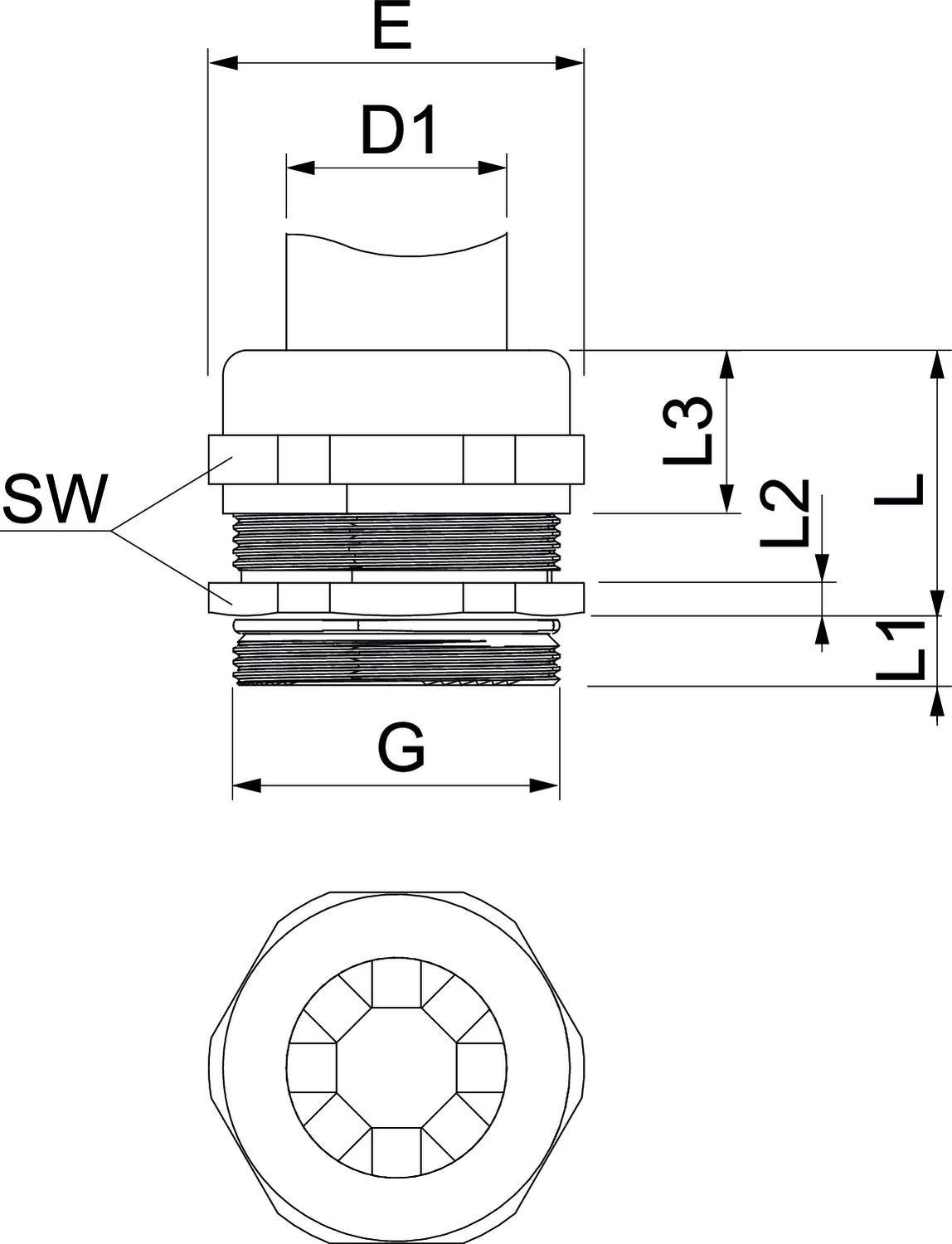

Dimension D1 19 mm Dimension E 46 mm Dimension G M40x1,5 mm Dimension L 33 mm Dimension L max. 31 mm Dimension L1 8 mm Dimension L2 4,5 mm Dimension L3 16,4 mm Height 41 mm Length 43 mm Width 46 mm - All types
- Downloads
-
Data sheet V-TEC VM40 EMV-K / 2086181 , 0.36MB , pdfDeclaration of conformity V-TEC VM40 EMV-K / 2086181 , 0.10MB , pdfDeclaration of conformity Declaration of conformity ,REACH Declaration of conformity V-TEC VM40 EMV-K / 2086181 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM40 EMV-K / 2086181 , 0.12MB , pdf
