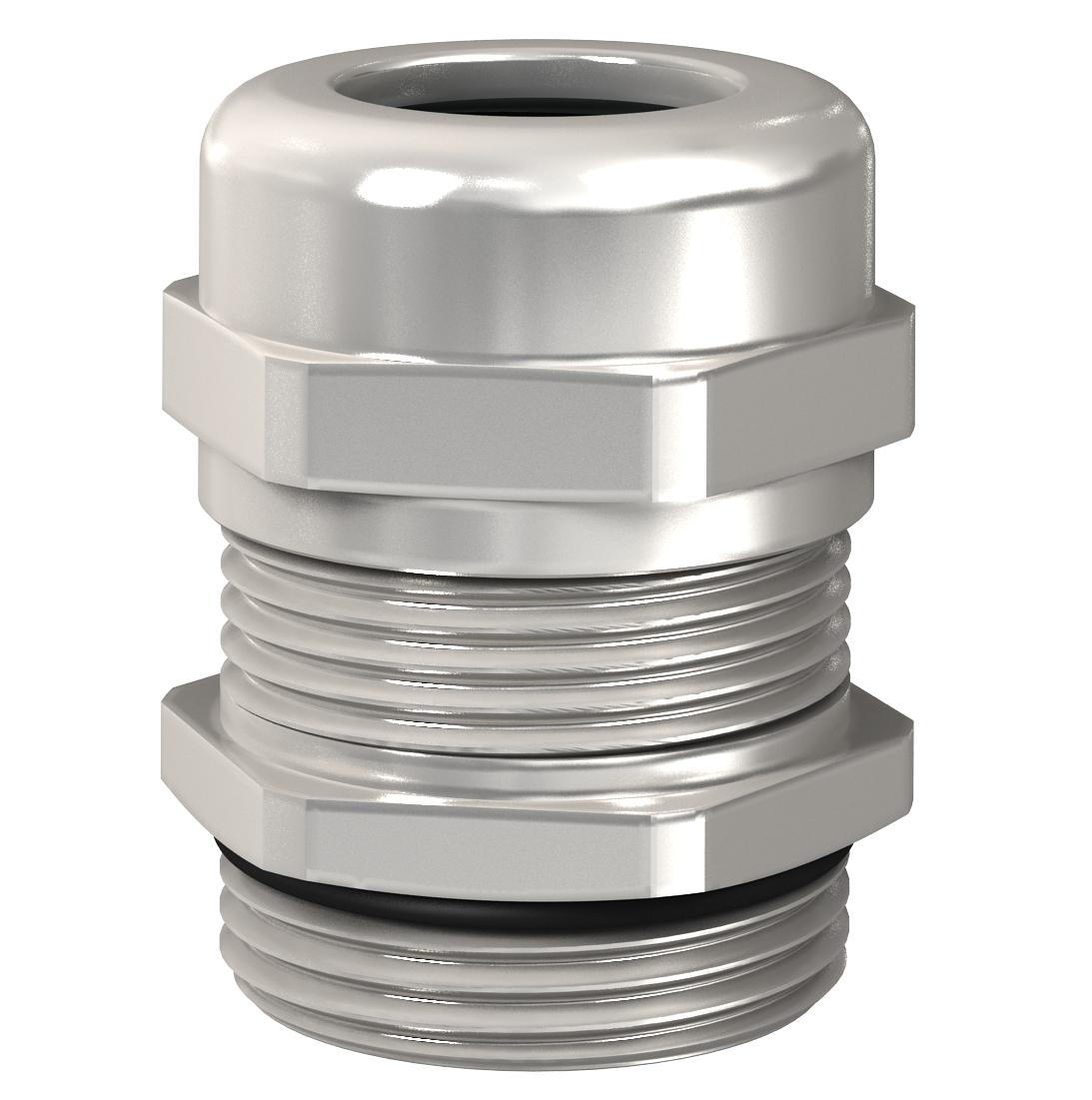

Cap nut cable gland, EMC spring contact, metric thread, nickel-plated

Item no. 2086185 | EAN 4012195655541

no
Product description
Product description
With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no

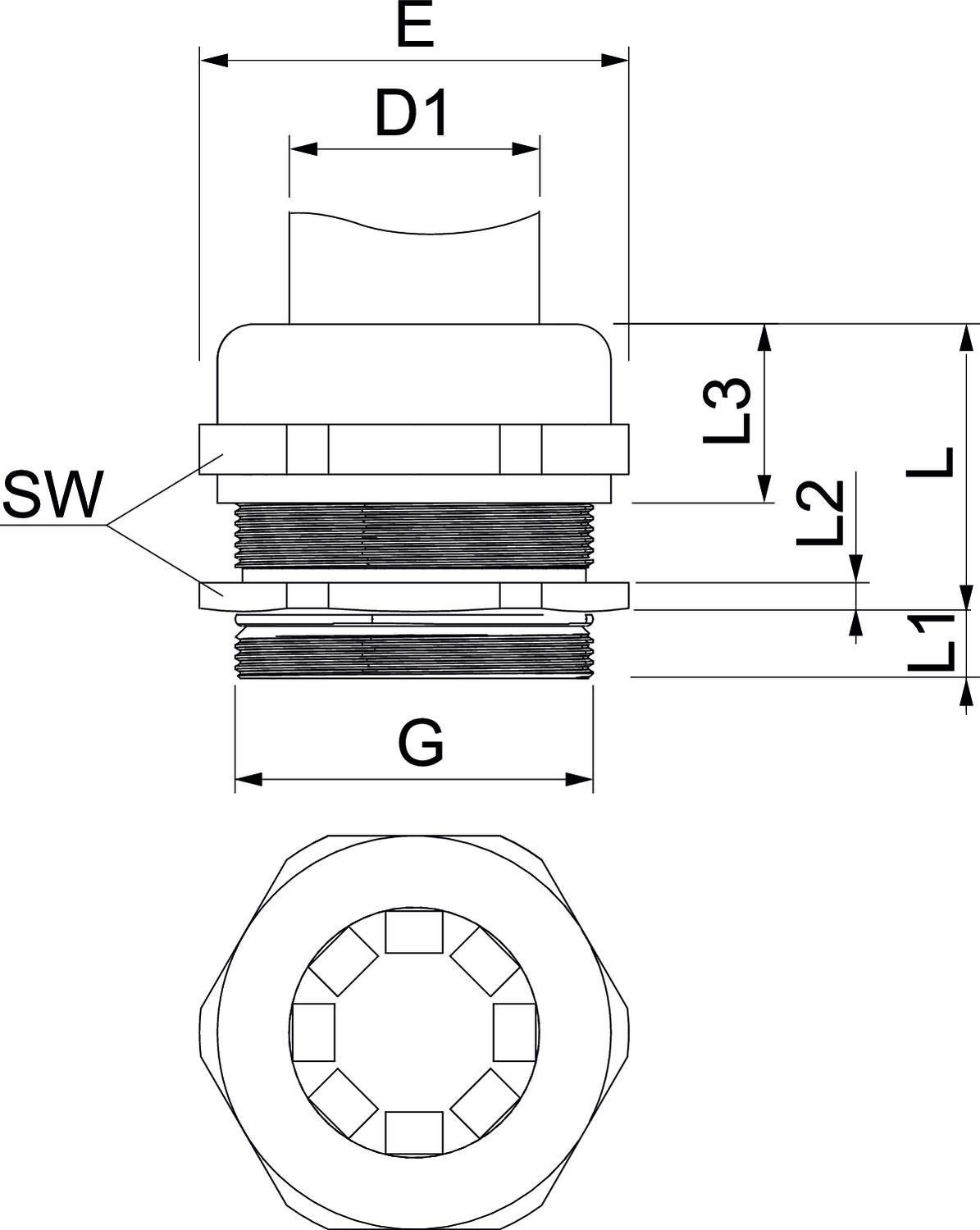

Dimension M50
Dimension D1 24 mm
Dimension E 60 mm
Dimension G M50x1,5 mm
Dimension L 40,5 mm
Dimension L max. 40,5 mm
Dimension L1 9 mm
Dimension L2 4,5 mm
Dimension L3 21 mm
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Height 49,5 mm
Impact-resistant no
Length 55 mm
Material Brass
Permitted temperature range, max. 100 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 35 mm
Sealing area D, min. 24 mm
Sealing insert, multiple no
Strain relief option yes
Surface Nickel-plated
Thread M50 x 1,5
Thread length 9 mm
Type of seal Sealing ring
Version for Straight
WAF 55
Width 60 mm
With locknut no
All types

All types

Types Thread Sealing insert, multiple Item no. Quantity SSU
V-TEC VM16 EMV-K M16 x 1,5 no 2086165
50 piece
V-TEC VM20 EMV-K M20 x 1,5 no 2086169
25 piece
V-TEC VM25 EMV-K M25 x 1,5 no 2086173
25 piece
V-TEC VM32 EMV-K M32 x 1,5 no 2086177
20 piece
V-TEC VM40 EMV-K M40 x 1,5 no 2086181
5 piece
V-TEC VM50 EMV-K M50 x 1,5 no 2086185
5 piece
V-TEC VM63 EMV-K M63 x 1,5 no 2086189
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, metric thread with cutting teeth Locknut, metric thread with cutting teeth 169 MSS M50 2091729
25 piece
