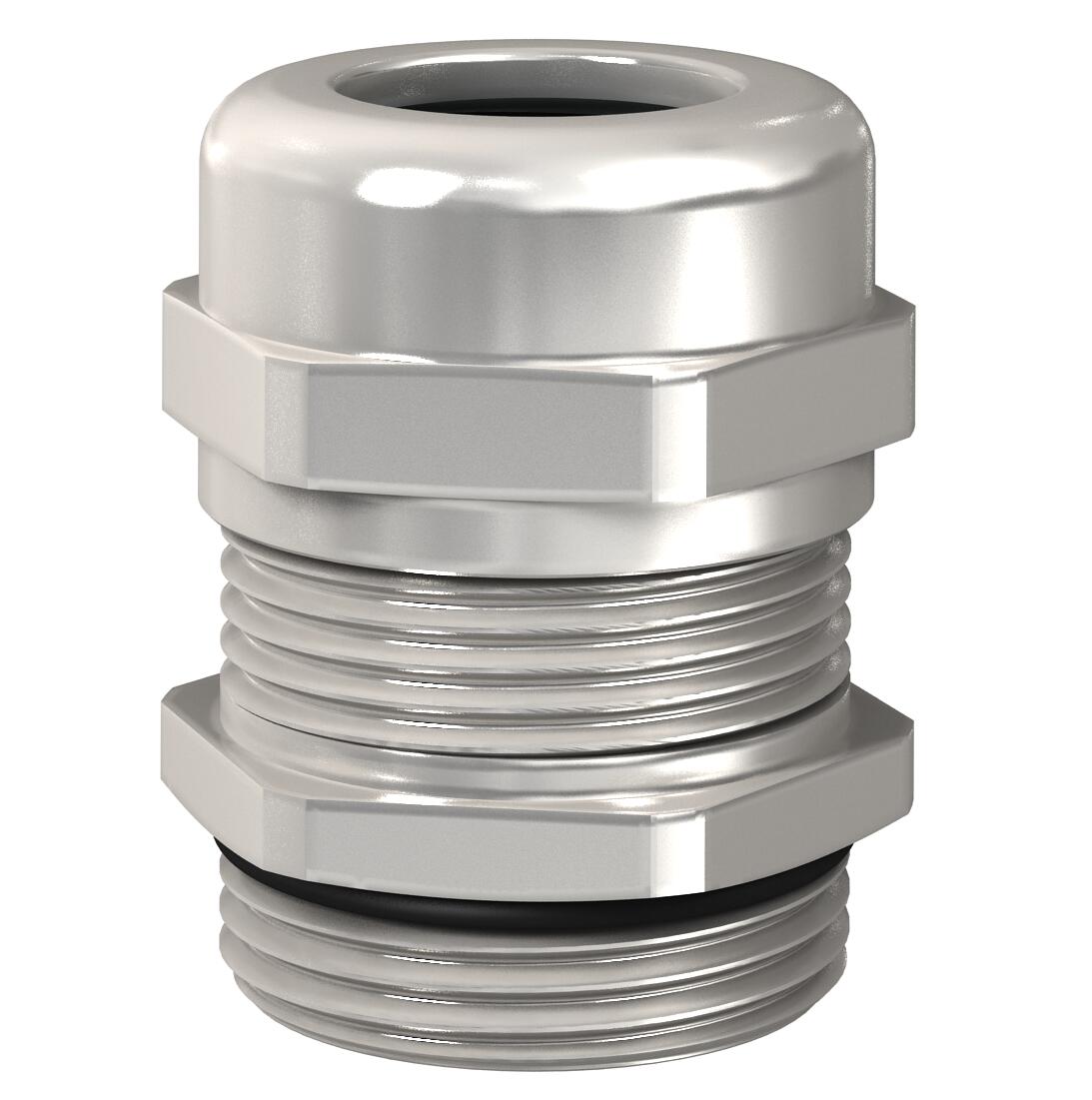

Cap nut cable gland, EMC spring contact, metric thread, nickel-plated

Item no. 2086189 | EAN 4012195655558

no
Product description

Product description

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Dimension M63
Dimension D1 38 mm
Dimension E 65 mm
Dimension G M63x1,5 mm
Dimension L 42,5 mm
Dimension L max. 42,5 mm
Dimension L1 10 mm
Dimension L2 6 mm
Dimension L3 21 mm
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Height 52,5 mm
Impact-resistant no
Length 65 mm
Material Brass
Permitted temperature range, max. 100 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 48 mm
Sealing area D, min. 38 mm
Sealing insert, multiple no
Strain relief option yes
Surface Nickel-plated
Thread M63 x 1,5
Thread length 10 mm
Type of seal Sealing ring
Version for Straight
WAF 65
Width 70 mm
With locknut no
All types

All types

Types Thread Sealing insert, multiple Item no. Quantity SSU
V-TEC VM16 EMV-K M16 x 1,5 no 2086165
50 piece
V-TEC VM20 EMV-K M20 x 1,5 no 2086169
25 piece
V-TEC VM25 EMV-K M25 x 1,5 no 2086173
25 piece
V-TEC VM32 EMV-K M32 x 1,5 no 2086177
20 piece
V-TEC VM40 EMV-K M40 x 1,5 no 2086181
5 piece
V-TEC VM50 EMV-K M50 x 1,5 no 2086185
5 piece
V-TEC VM63 EMV-K M63 x 1,5 no 2086189
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, metric thread with cutting teeth Locknut, metric thread with cutting teeth 169 MSS M63 2091733
25 piece
