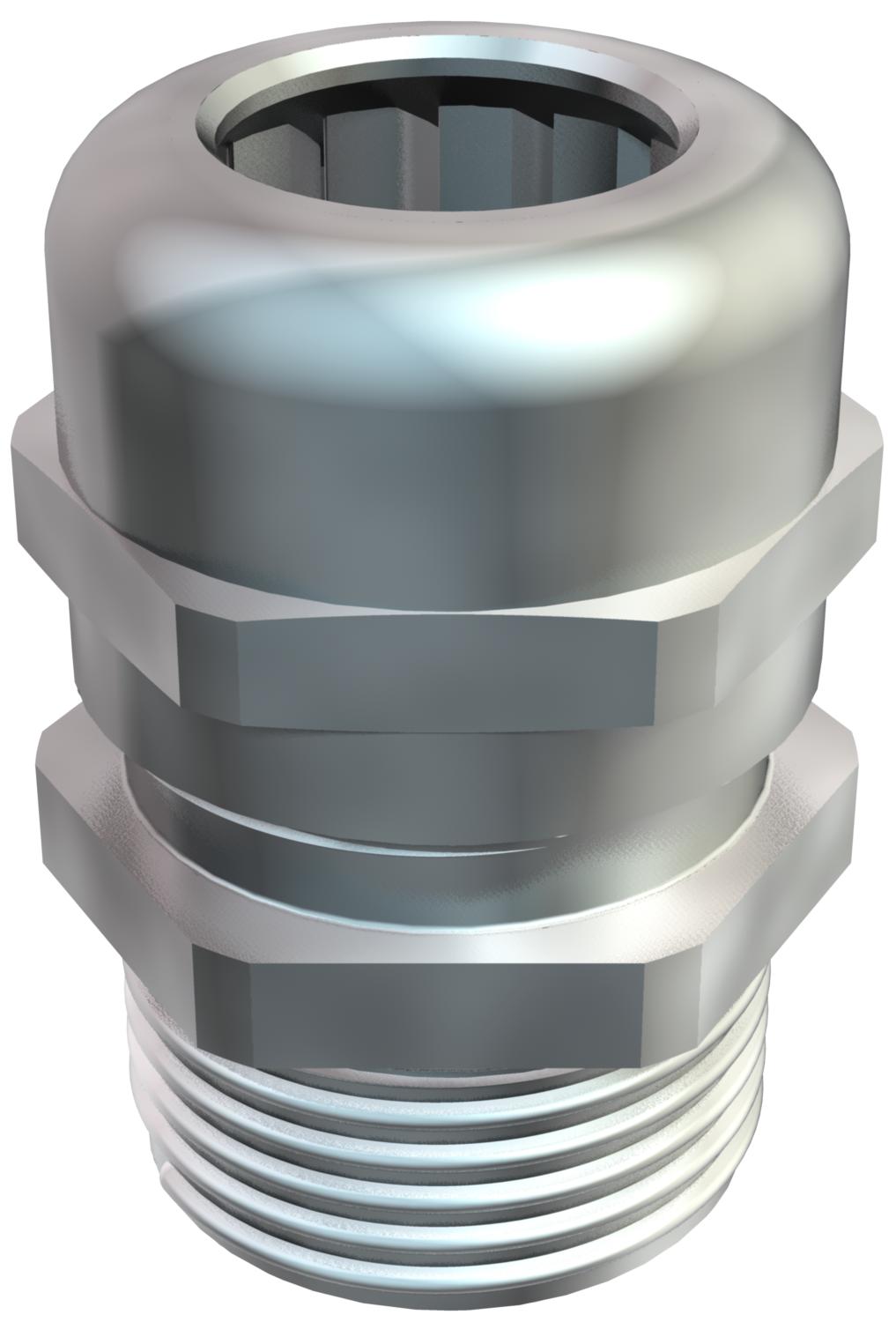

Cap nut cable gland, metric thread, silver grey, long, nickel-plated
Item no. 2086129 | EAN 4012195810735
- Product description
-
Product descriptionWith metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. For thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.
With long connection thread.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

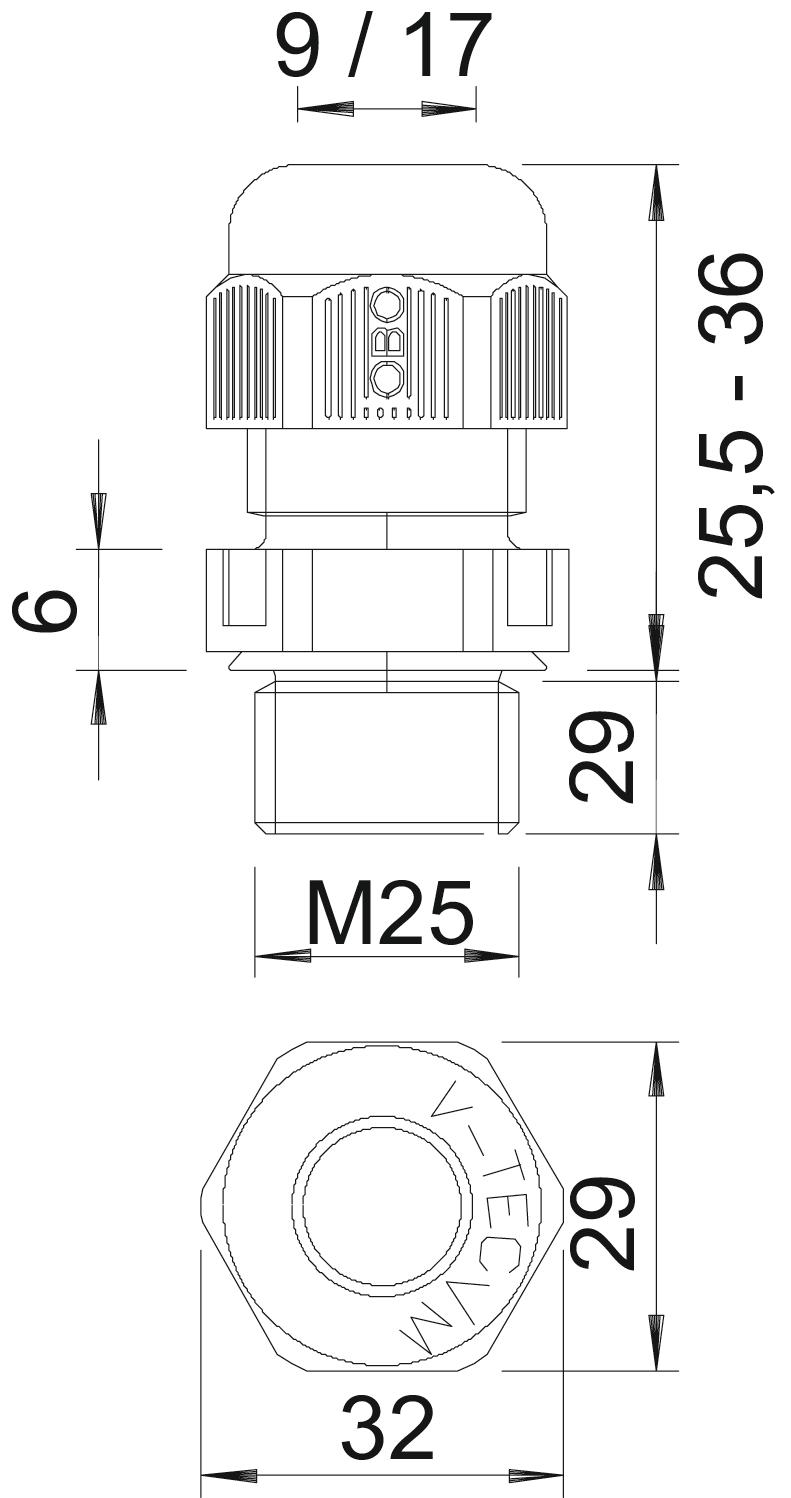

Bend protection no Dimension M25 Dimension E 30 mm Dimension L max. 29,5 mm Dimension L1 11 mm Dimension L2 4 mm Dimension L3 17 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 16 mm Sealing area D, min. 11 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M25 x 1,5 Thread length 11 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 27 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, metric thread
169 MS M25 2091631 100 piece - Downloads
-
Data sheet V-TEC VM LM25 MS / 2086129 , 0.24MB , pdfEU declaration of conformity V-TEC VM LM25 MS / 2086129 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity V-TEC VM LM25 MS / 2086129 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM LM25 MS / 2086129 , 0.12MB , pdf
