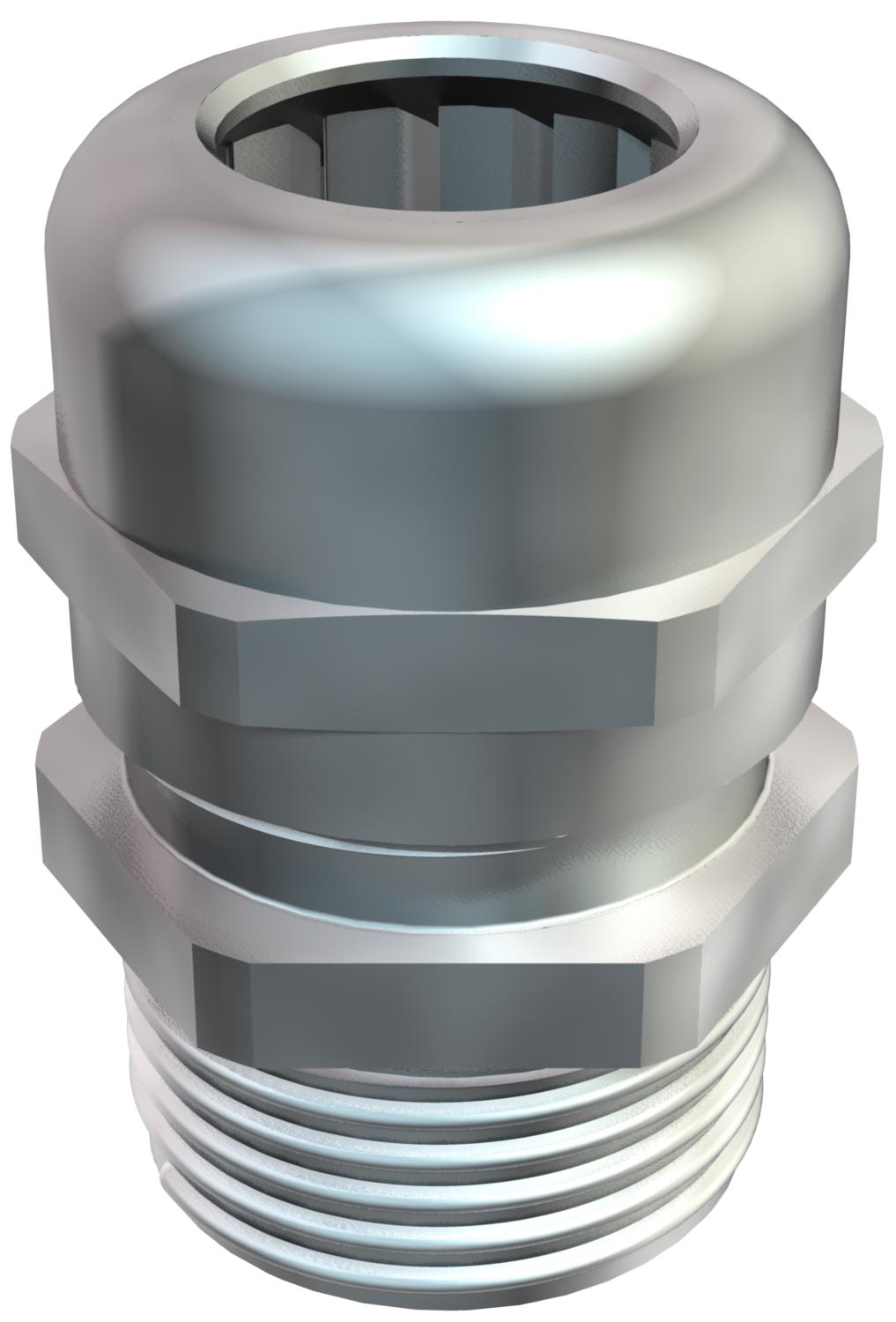

Cap nut cable gland, metric thread, silver grey, long, nickel-plated
Item no. 2086135 | EAN 4012195810858
- Product description
-
Product descriptionWith metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. For thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.
With long connection thread.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

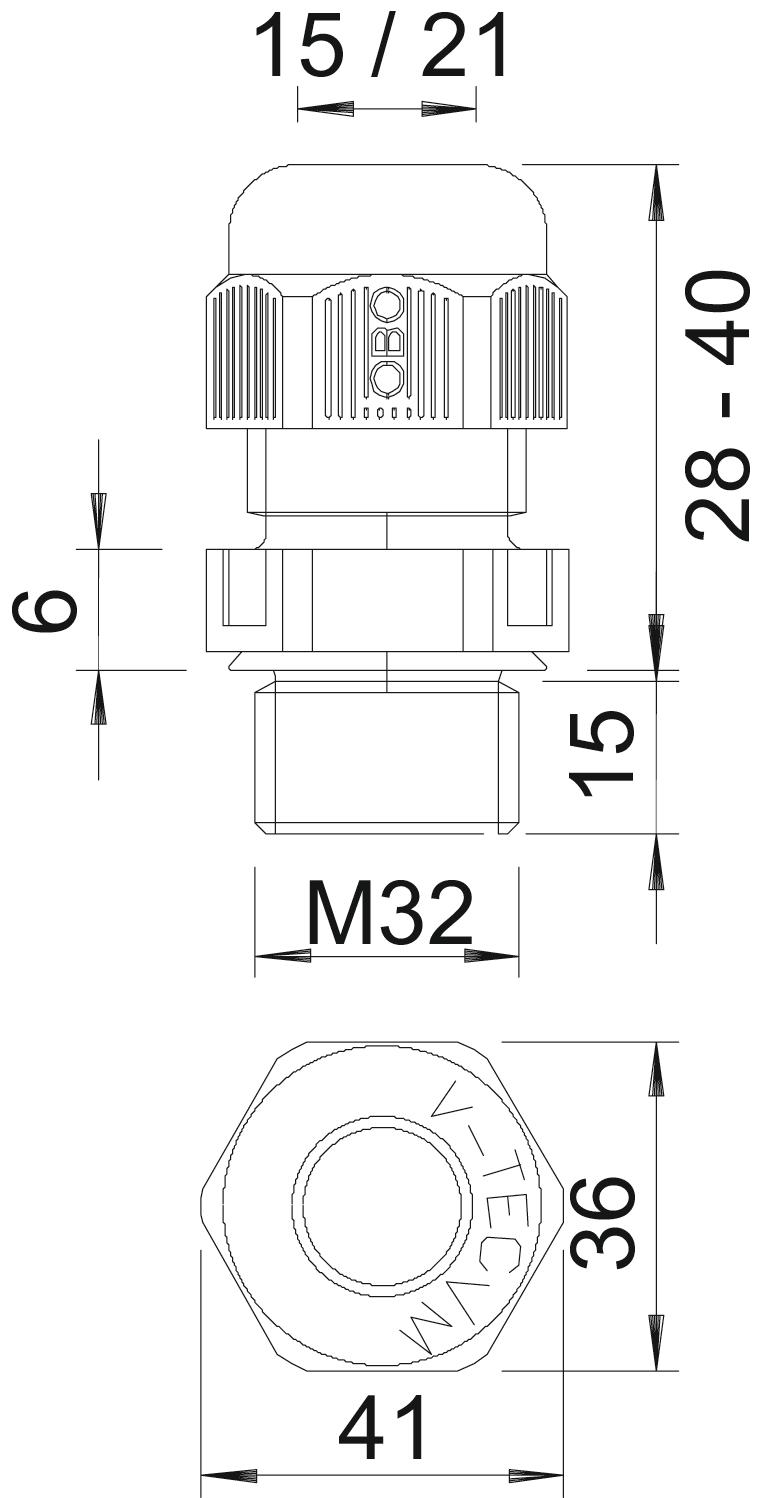

Bend protection no Dimension M32 Dimension E 36 mm Dimension L max. 30 mm Dimension L1 13 mm Dimension L2 4,5 mm Dimension L3 18,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 21 mm Sealing area D, min. 14 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M32 x 1,5 Thread length 13 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 34 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, metric thread
169 MS M32 2091658 100 piece - Downloads
-
Data sheet V-TEC VM LM32 MS / 2086135 , 0.24MB , pdfEU declaration of conformity V-TEC VM LM32 MS / 2086135 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity V-TEC VM LM32 MS / 2086135 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM LM32 MS / 2086135 , 0.12MB , pdf
