- Product description
-

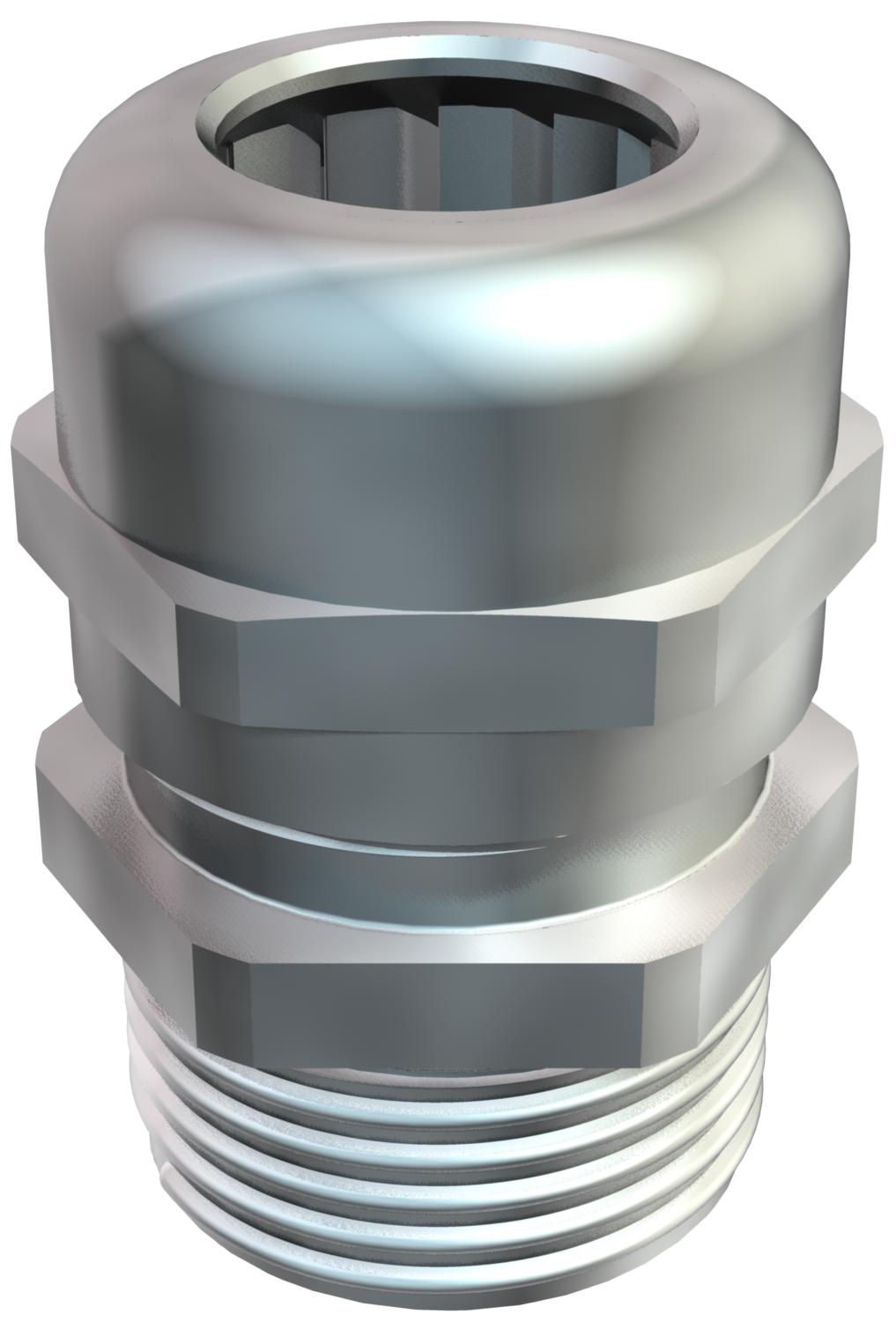

Product descriptionWith metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. For thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.
With long connection thread.
* Prices according to DEL notation.
- Technical data
-
Technical data

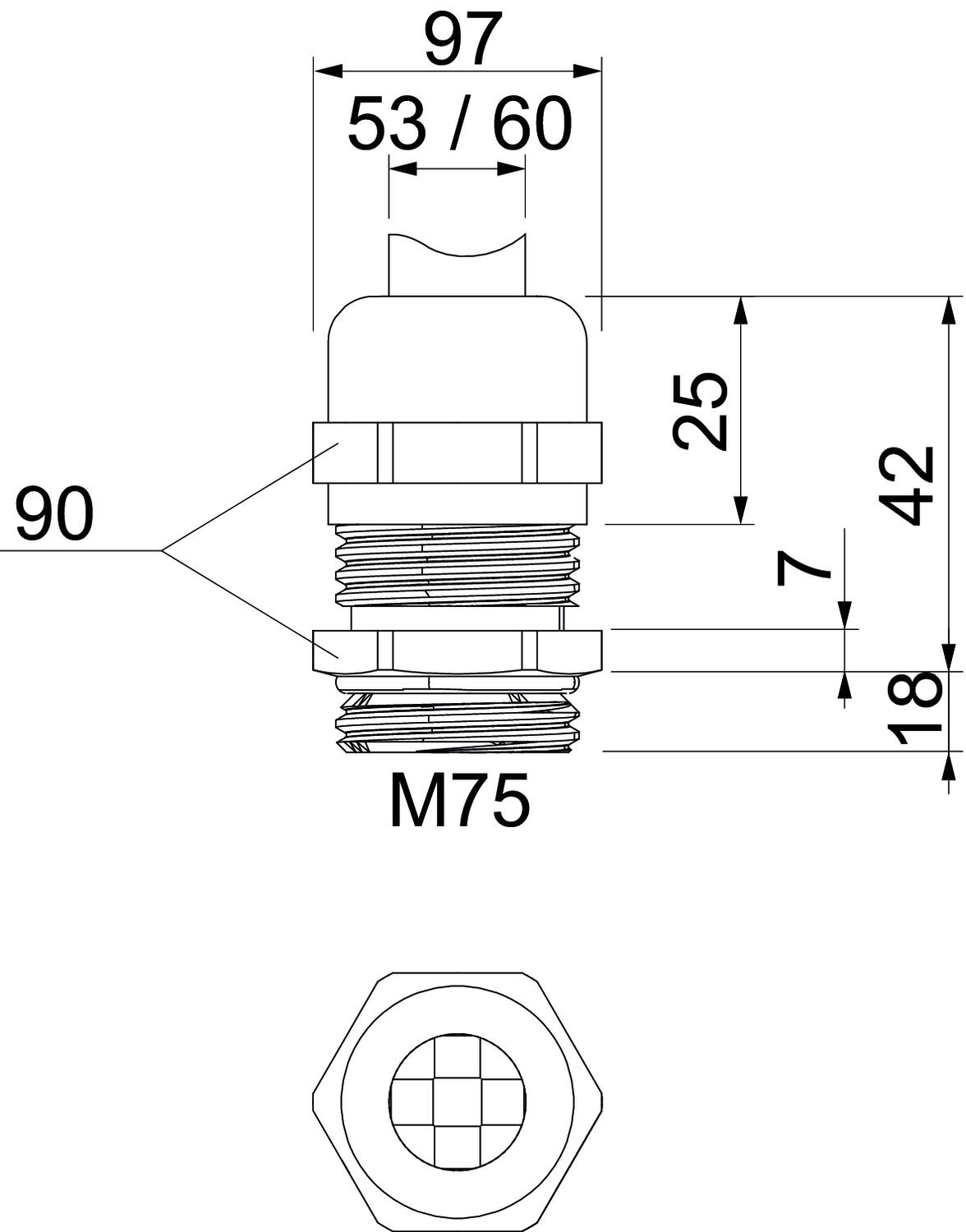

Bend protection no Dimension M75 Dimension E 97 mm Dimension L max. 42 mm Dimension L1 18 mm Dimension L2 7 mm Dimension L3 25 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 60 mm Sealing area D, min. 53 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M75 x 1,5 Thread length 18 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 90 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM LM75MS2 / 2086159 , 0.24MB , pdfEU declaration of conformity V-TEC VM LM75MS2 / 2086159 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,
