Cap nut cable gland, metric thread, silver grey | | M63 x 1,5 | no | Silver grey; RAL 7001

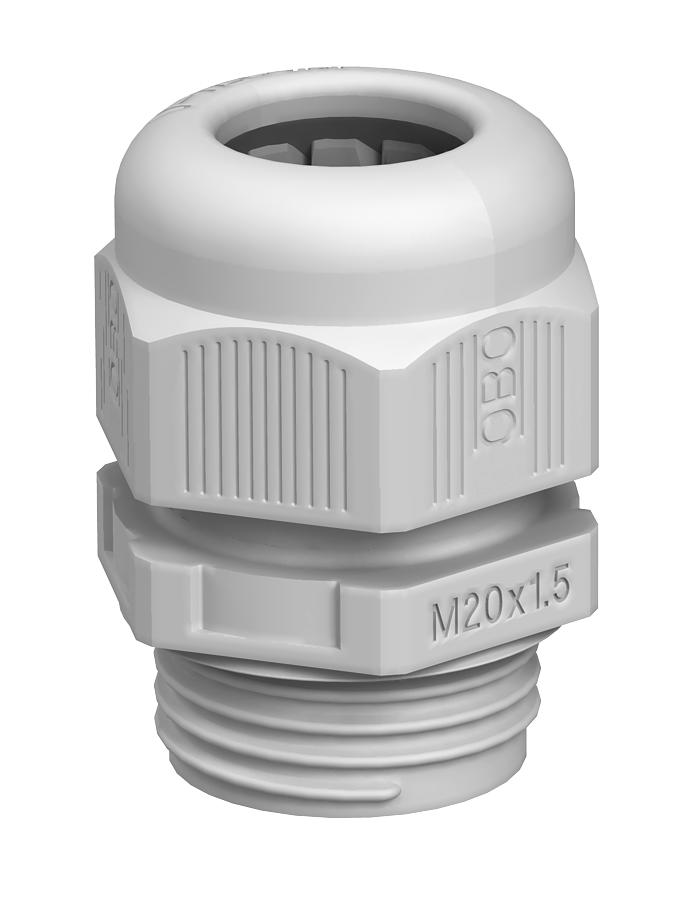

Cap nut cable gland, metric thread, silver grey

Item no. 2022857 | EAN 4012195533115

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Silver grey; RAL 7001

Product description

Product description

The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands from OBO. With the integrated sealing lip and the special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness have been tested to DIN EN 62444.
The connecting threads of the cable glands are metric or PG and are therefore suitable for universal use. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.
Applications: From private housing with junction boxes up to industrial applications in the distributor cabinet.
Temperature range: –20 °C to +65 °C.

Technical data

Technical data

Bend protection	no
Colour	Silver grey; RAL 7001

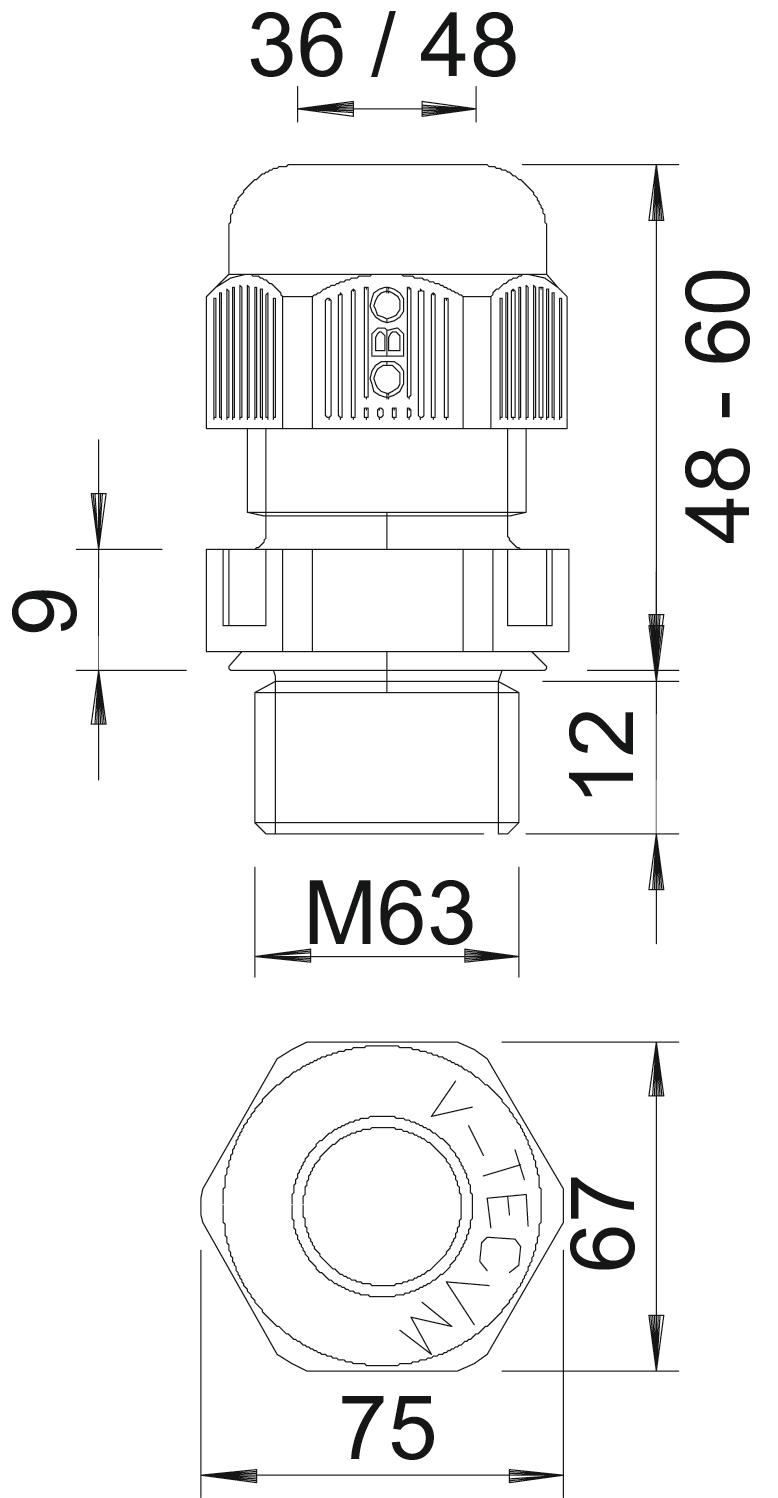

Dimension	M63
Dimension E	75 mm
Dimension L max.	60 mm
Dimension L min.	48 mm
Dimension L1	12 mm
Dimension L2	9 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	75 mm
Impact-resistant	no
Material	Polyamide

Nominal thread size	63
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	48 mm
Sealing area D, min.	36 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M63 x 1,5
Thread increase	1,5 mm
Thread length	12 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	15 Nm
Version for	Straight
WAF	67
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC VM12 SGR	M12 x 1,5	no	Silver grey; RAL 7001	2022843	piece	50 piece
V-TEC VM16 SGR	M16 x 1,5	no	Silver grey; RAL 7001	2022845	piece	50 piece
V-TEC VM20 SGR	M20 x 1,5	no	Silver grey; RAL 7001	2022847	piece	50 piece
V-TEC VM25 SGR	M25 x 1,5	no	Silver grey; RAL 7001	2022849	piece	25 piece
V-TEC VM32 SGR	M32 x 1,5	no	Silver grey; RAL 7001	2022851	piece	20 piece
V-TEC VM40 SGR	M40 x 1,5	no	Silver grey; RAL 7001	2022853	piece	10 piece
V-TEC VM50 SGR	M50 x 1,5	no	Silver grey; RAL 7001	2022855	piece	5 piece
V-TEC VM63 SGR	M63 x 1,5	no	Silver grey; RAL 7001	2022857	piece	5 piece

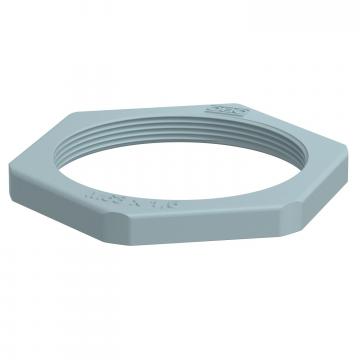

Accessories
