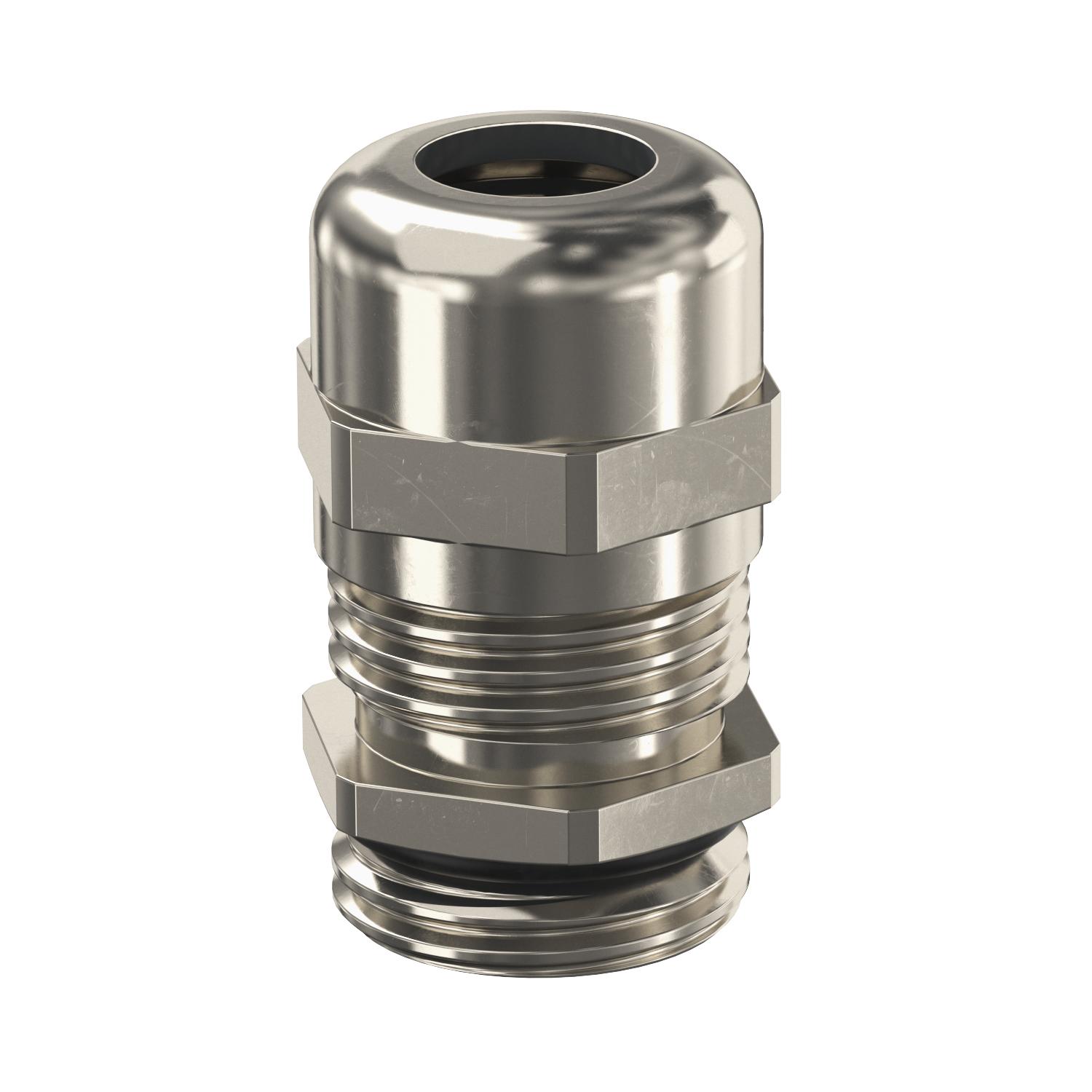

Cap nut cable gland, metric thread, silver grey, nickel-plated
Item no. 2086024 | EAN 4012195809234
- Product description
-
Product descriptionWith metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Bend protection no Dimension M16 Dimension E 19 mm Dimension L max. 24 mm Dimension L1 5 mm Dimension L2 3 mm Dimension L3 15 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Hexagonal corner dimension 19 mm Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 9 mm Sealing area D, min. 5 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M16 x 1,5 Thread length 5 mm Thread type Metric Type of seal Sealing ring Unstable torque 3,5 Nm Version for Straight WAF 17 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, metric thread
169 MS M16 2091615 100 piece - Downloads
-
