Product description

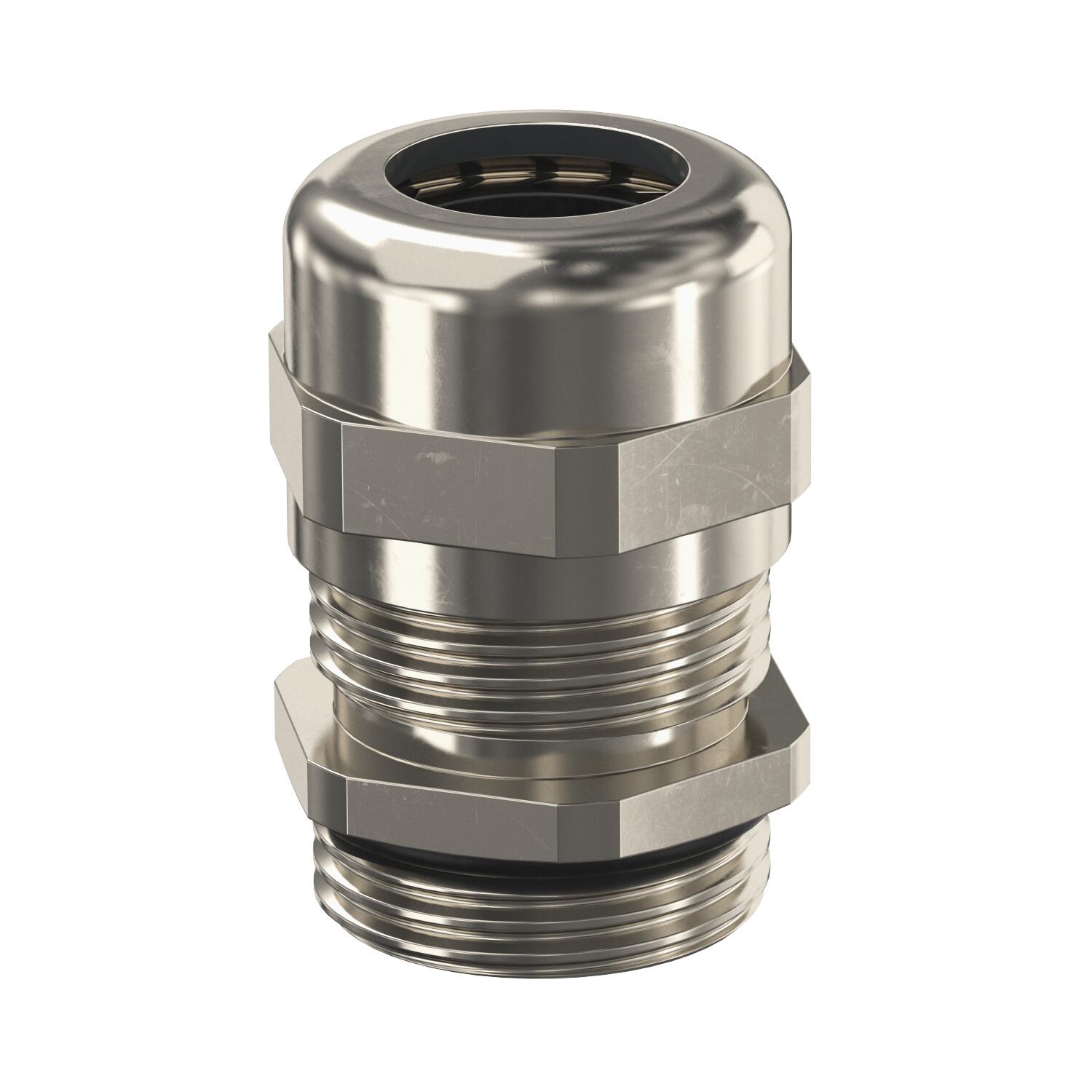

With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.
* Prices according to DEL notation.
- Technical data
-
Technical data

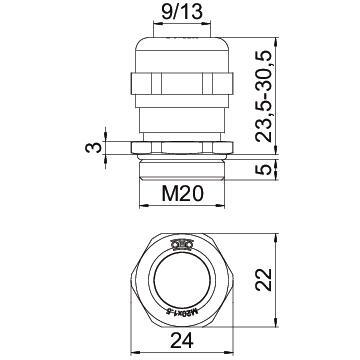

Bend protection no Dimension M20 Dimension E 24 mm Dimension L max. 27 mm Dimension L1 6 mm Dimension L2 3,5 mm Dimension L3 16,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Hexagonal corner dimension 24 mm Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 13 mm Sealing area D, min. 9 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M20 x 1,5 Thread length 6 mm Thread type Metric Type of seal Sealing ring Unstable torque 3,5 Nm Version for Straight WAF 22 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM20 MS / 2086030 , 0.31MB , pdfDeclaration of conformity V-TEC VM20 MS / 2086030 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM20 MS / 2086030 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM20 MS / 2086030 , 0.12MB , pdf
