Product description

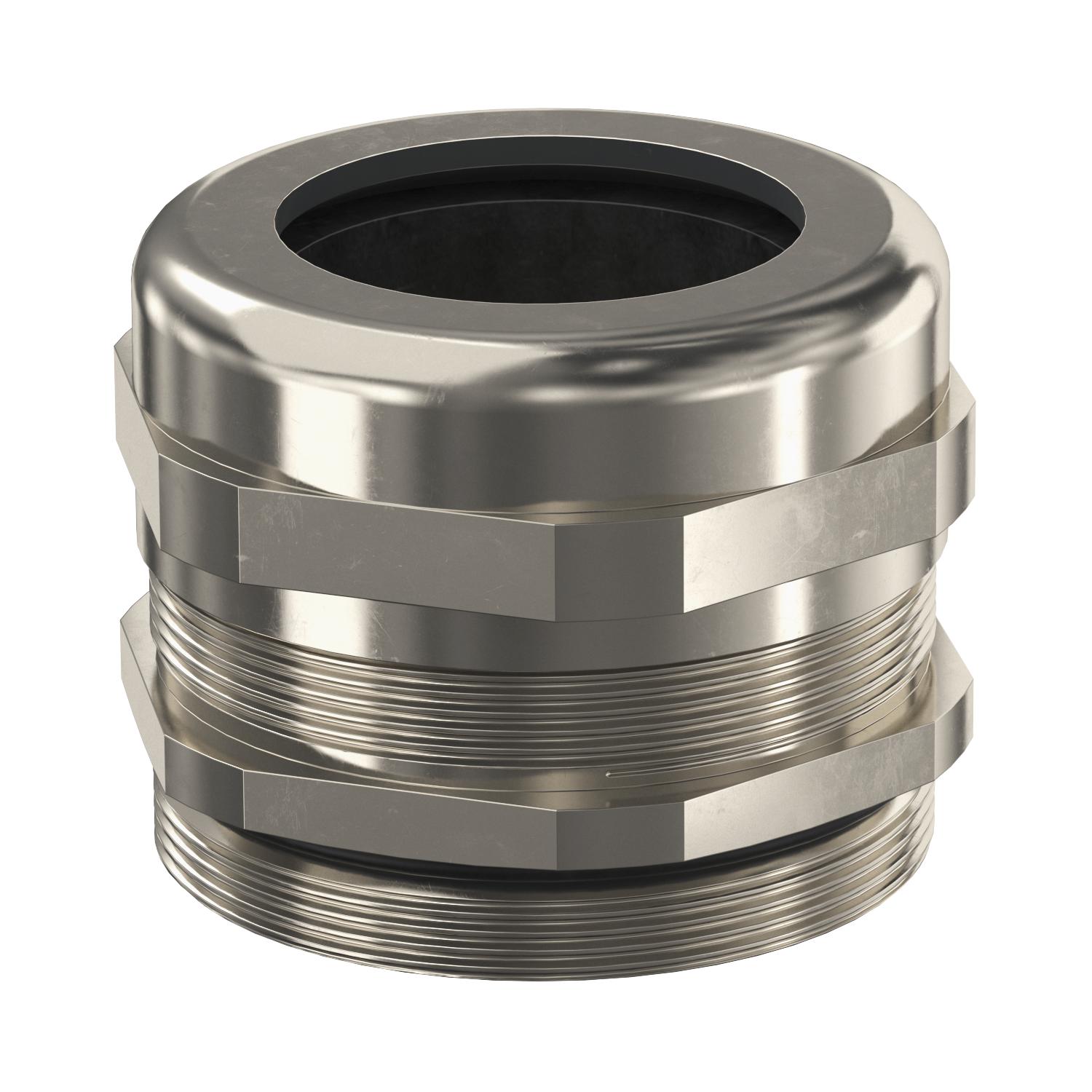

With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.
* Prices according to DEL notation.
- Technical data
-
Technical data

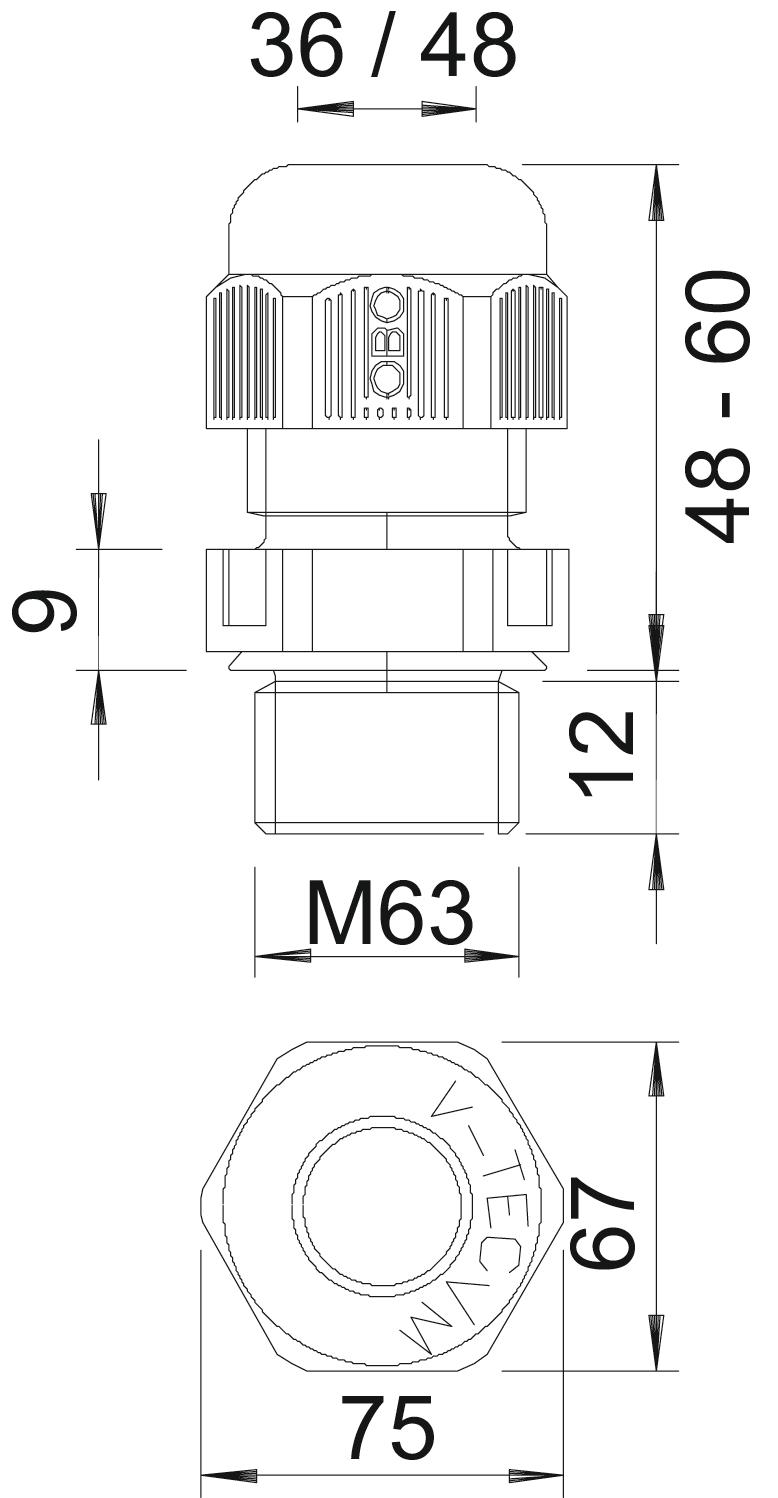

Bend protection no Dimension M63 Dimension E 70 mm Dimension L max. 44,5 mm Dimension L1 10 mm Dimension L2 5 mm Dimension L3 31 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Hexagonal corner dimension 70 mm Impact-resistant no Material Brass Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 42 mm Sealing area D, min. 32 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread M63 x 1,5 Thread length 10 mm Thread type Metric Type of seal Sealing ring Unstable torque 13,5 Nm Version for Straight WAF 65 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC VM63 MS / 2086060 , 0.30MB , pdfDeclaration of conformity V-TEC VM63 MS / 2086060 , 0.10MB , pdfREACH Declaration of conformity V-TEC VM63 MS / 2086060 , 0.12MB , pdfRoHS Declaration of conformity V-TEC VM63 MS / 2086060 , 0.12MB , pdf
