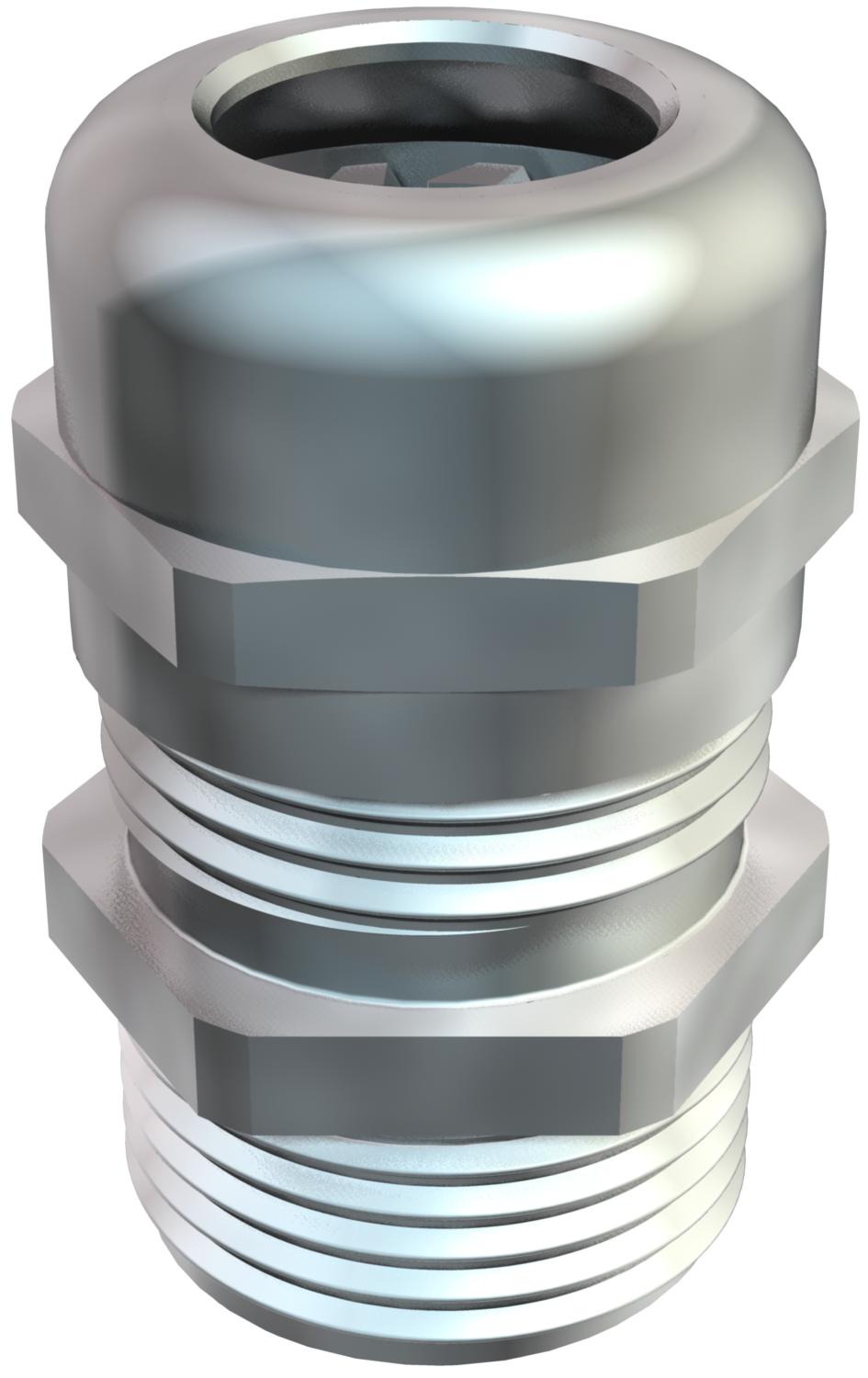

Cap nut cable gland, PG thread, long, nickel-plated | | Pg 48 | no |

Cap nut cable gland, PG thread, long, nickel-plated

Item no. 2085836 | EAN 4012195841210

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with long Pg connection thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.

Polyamide terminal insert.

Sealing ring of chloroprene/nitrile rubber.

O ring pre-mounted on connection thread.

Protection rating IP 68 at 5 bar: 1 hr.

Tested to DIN EN 62444.

With long connection thread.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

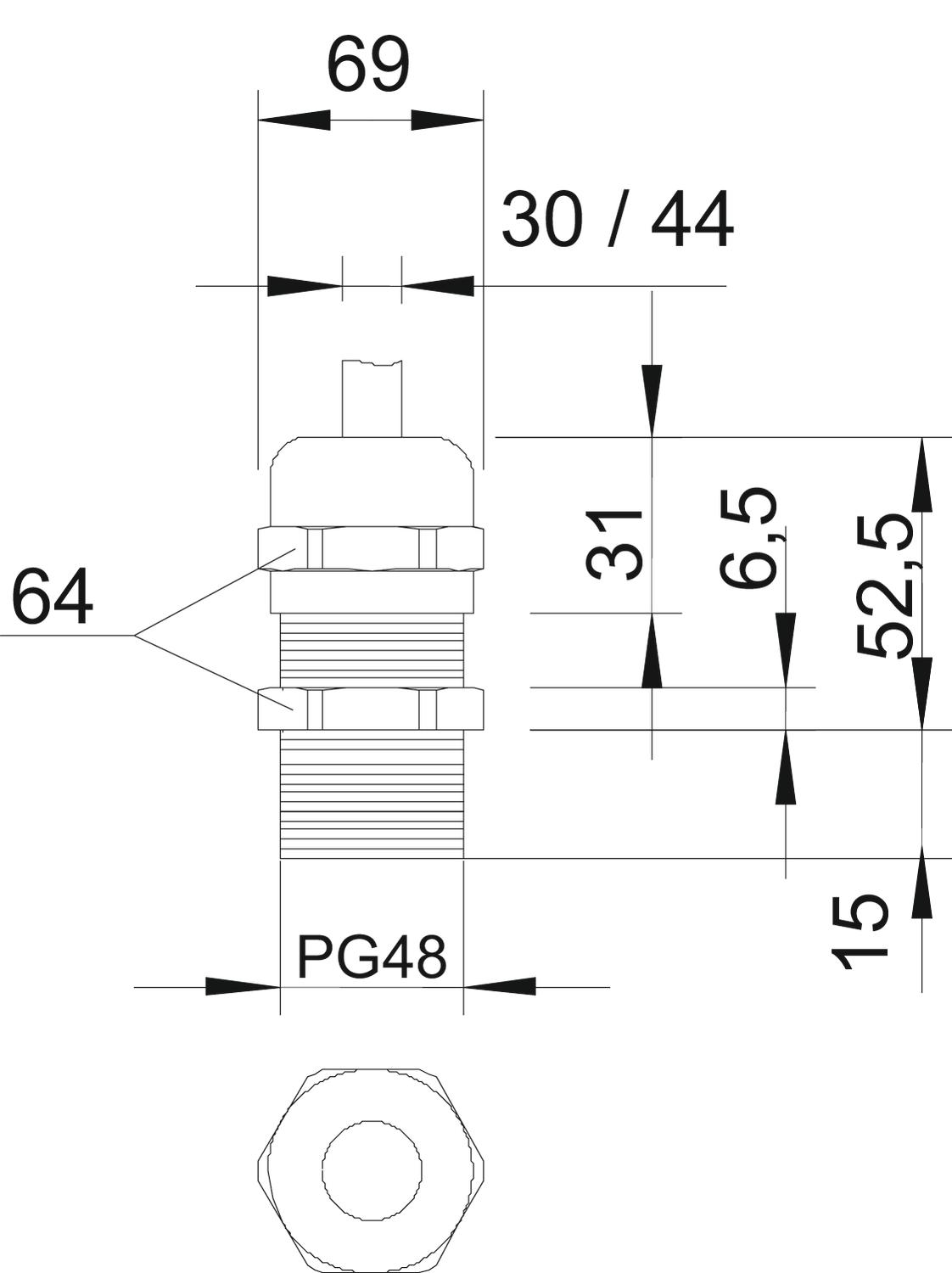

Dimension	PG48
Dimension E	69 mm
Dimension L max.	52,5 mm
Dimension L1	15 mm
Dimension L2	6,5 mm
Dimension L3	31 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Nominal thread size	48

Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	44 mm
Sealing area D, min.	36 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Surface	Nickel-plated
Thread	Pg 48
Thread length	15 mm
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF	64
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC L PG9 MS	Pg 9	no	2085739	piece	50 piece
V-TEC L PG11 MS	Pg 11	no	2085747	piece	50 piece
V-TEC L PG13 MS	Pg 13,5	no	2085755	piece	50 piece
V-TEC L PG16 MS	Pg 16	no	2085763	piece	25 piece
V-TEC L PG21 MS	Pg 21	no	2085771	piece	25 piece
V-TEC L PG29 MS	Pg 29	no	2085798	piece	10 piece
V-TEC L PG48 MS	Pg 48	no	2085836	piece	5 piece
