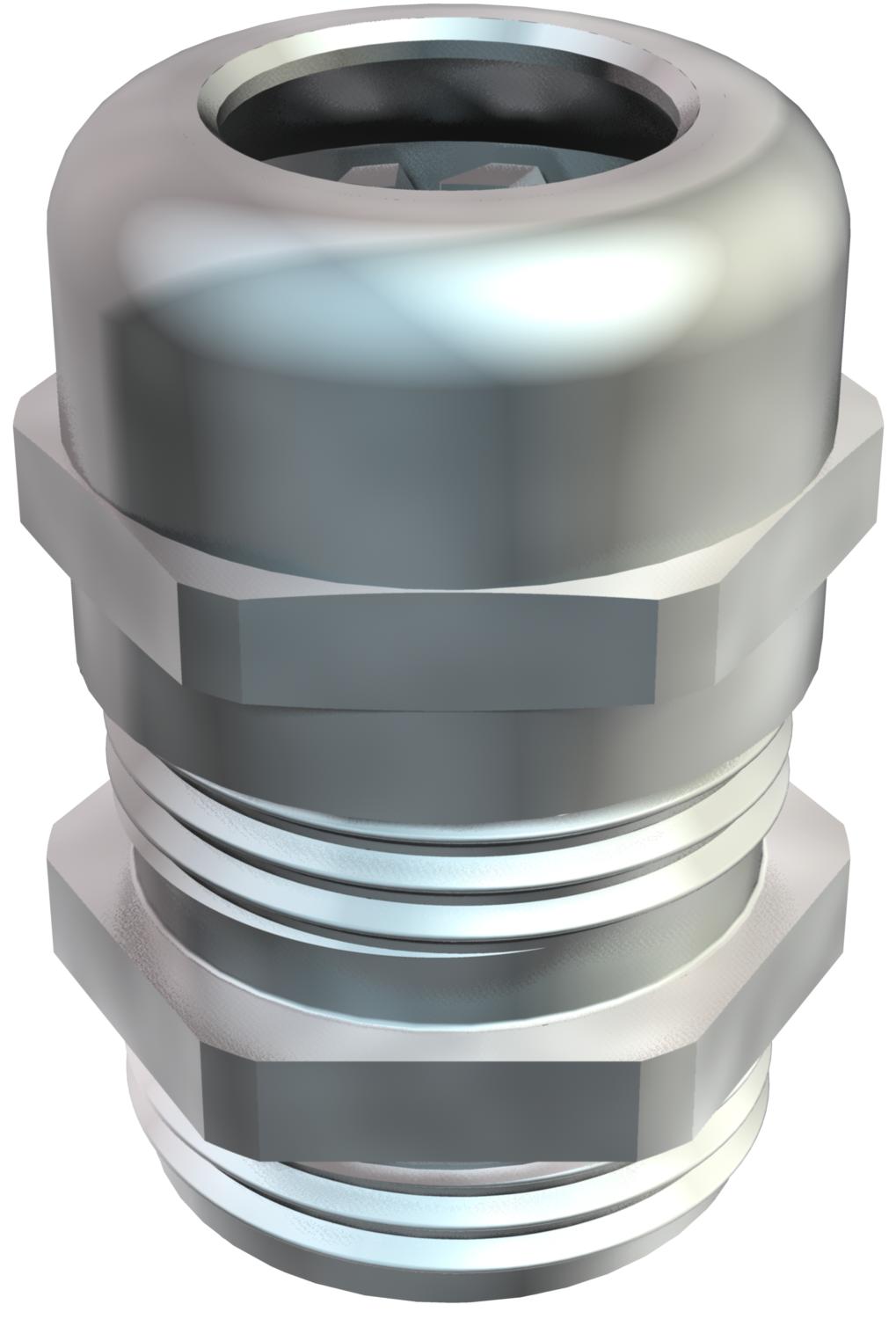

Cap nut cable gland, PG thread, nickel-plated

Item no. 2085631 | EAN 4012195190097

no
Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.

Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444.

"Normal" connection thread length, according to DIN 46320.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread Pg
Technical data

Technical data

Bend protection no

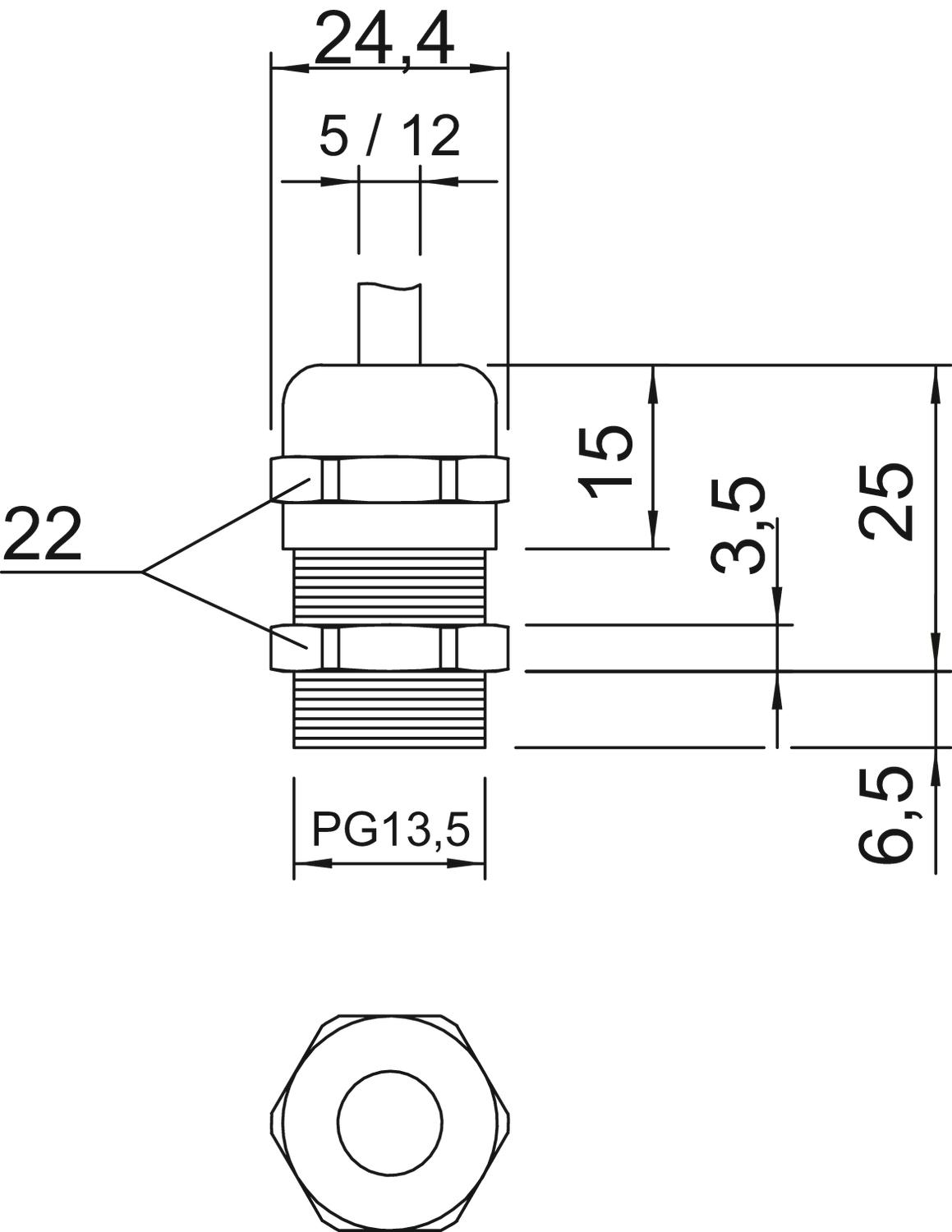

Dimension PG13,5
Dimension E 24,4 mm
Dimension L max. 25 mm
Dimension L1 6,5 mm
Dimension L2 3,5 mm
Dimension L3 15 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free no
Impact-resistant no
Material Brass
Nominal thread size 13,5
Permitted temperature range, max. 100 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 12 mm
Sealing area D, min. 5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Surface Nickel-plated
Thread Pg 13,5
Thread length 6,5 mm
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 22
With locknut no
All types

All types

Types Thread Sealing insert, multiple Item no. Quantity SSU
V-TEC PG7 MS Pg 7 no 2085607
50 piece
V-TEC PG9 MS Pg 9 no 2085615
50 piece
V-TEC PG11 MS Pg 11 no 2085623
50 piece
V-TEC PG13 MS Pg 13,5 no 2085631
50 piece
V-TEC PG16 MS Pg 16 no 2085658
25 piece
V-TEC PG21 MS Pg 21 no 2085666
25 piece
V-TEC PG29 MS Pg 29 no 2085674
20 piece
V-TEC PG36 MS Pg 36 no 2085682
10 piece
V-TEC PG42 MS Pg 42 no 2085690
5 piece
V-TEC PG48 MS Pg 48 no 2085704
5 piece
