Cap nut cable gland, PG thread, nickel-plated | | Pg 42 | no |

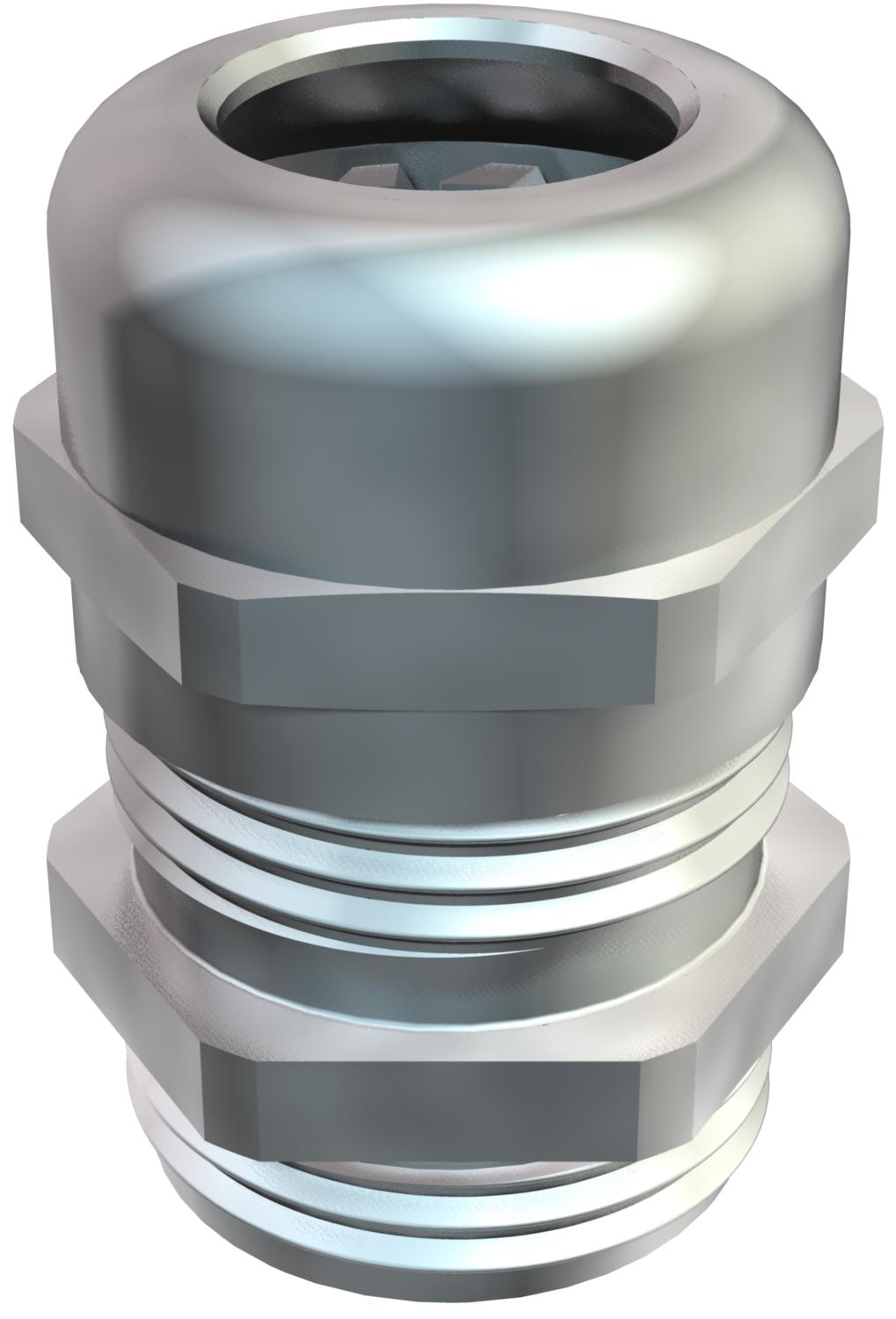

Cap nut cable gland, PG thread, nickel-plated

Item no. 2085690 | EAN 4012195448815

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.

Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444.

"Normal" connection thread length, according to DIN 46320.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

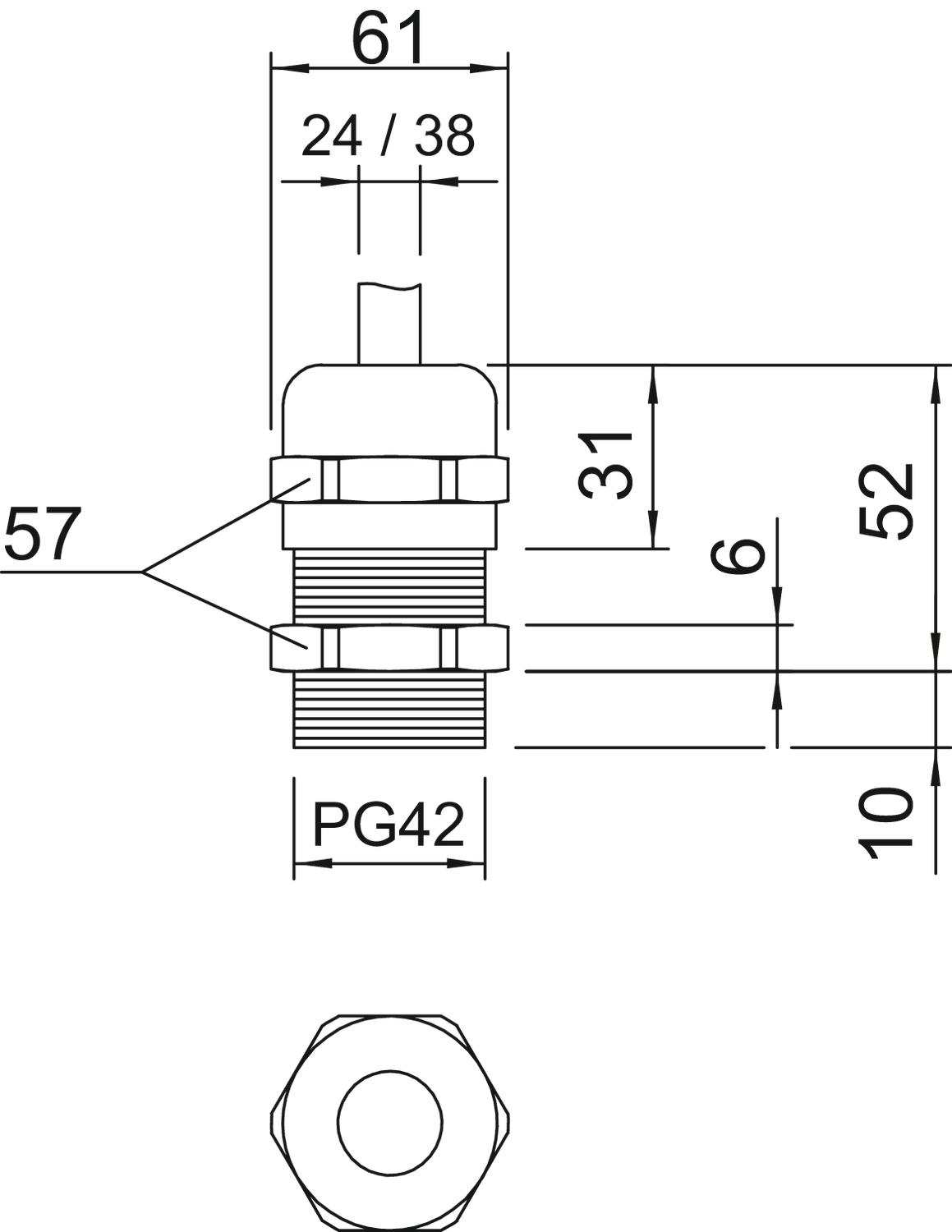

Dimension	PG42
Dimension E	61 mm
Dimension L max.	52 mm
Dimension L1	10 mm
Dimension L2	6 mm
Dimension L3	31 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Nominal thread size	42

Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	38 mm
Sealing area D, min.	24 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Surface	Nickel-plated
Thread	Pg 42
Thread length	10 mm
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF	57
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC PG7 MS	Pg 7	no	2085607	piece	50 piece
V-TEC PG9 MS	Pg 9	no	2085615	piece	50 piece
V-TEC PG11 MS	Pg 11	no	2085623	piece	50 piece
V-TEC PG13 MS	Pg 13,5	no	2085631	piece	50 piece
V-TEC PG16 MS	Pg 16	no	2085658	piece	25 piece
V-TEC PG21 MS	Pg 21	no	2085666	piece	25 piece
V-TEC PG29 MS	Pg 29	no	2085674	piece	20 piece
V-TEC PG36 MS	Pg 36	no	2085682	piece	10 piece
V-TEC PG42 MS	Pg 42	no	2085690	piece	5 piece
V-TEC PG48 MS	Pg 48	no	2085704	piece	5 piece
